إنشاء مخطط دائري بخطوط قياد باستخدام جافا سكريبت عبر C++

للتوضيح كيفية استخدام Aspose.Cells for JavaScript عبر واجهة برمجة التطبيقات C++ لإنشاء مخطط دائري مع خطوط الرصاص، سنقوم أولاً بإنشاء Workbook وإدخال بعض البيانات التي ستعمل كمصدر سلسلة البيانات. بمجرد وضع البيانات، سنضيف Chart من نوع ChartType.Pie إلى مجموعة المخططات ونعيّن جوانبها المختلفة للحصول على العرض المطلوب للمخطط.

<!DOCTYPE html>
<html>
    <head>
        <title>Create Pie Chart Example</title>
    </head>
    <body>
        <h1>Create Pie Chart Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first worksheet
            const worksheet = workbook.worksheets.get(0);

            // Add two columns of data
            worksheet.cells.get("A1").putValue("Retail");
            worksheet.cells.get("A2").putValue("Services");
            worksheet.cells.get("A3").putValue("Info & Communication");
            worksheet.cells.get("A4").putValue("Transport Equip");
            worksheet.cells.get("A5").putValue("Construction");
            worksheet.cells.get("A6").putValue("Other Products");
            worksheet.cells.get("A7").putValue("Wholesale");
            worksheet.cells.get("A8").putValue("Land Transport");
            worksheet.cells.get("A9").putValue("Air Transport");
            worksheet.cells.get("A10").putValue("Electric Appliances");
            worksheet.cells.get("A11").putValue("Securities");
            worksheet.cells.get("A12").putValue("Textiles & Apparel");
            worksheet.cells.get("A13").putValue("Machinery");
            worksheet.cells.get("A14").putValue("Metal Products");
            worksheet.cells.get("A15").putValue("Cash");
            worksheet.cells.get("A16").putValue("Banks");

            worksheet.cells.get("B1").putValue(10.4);
            worksheet.cells.get("B2").putValue(5.2);
            worksheet.cells.get("B3").putValue(6.4);
            worksheet.cells.get("B4").putValue(10.4);
            worksheet.cells.get("B5").putValue(7.9);
            worksheet.cells.get("B6").putValue(4.1);
            worksheet.cells.get("B7").putValue(3.5);
            worksheet.cells.get("B8").putValue(5.7);
            worksheet.cells.get("B9").putValue(3);
            worksheet.cells.get("B10").putValue(14.7);
            worksheet.cells.get("B11").putValue(3.6);
            worksheet.cells.get("B12").putValue(2.8);
            worksheet.cells.get("B13").putValue(7.8);
            worksheet.cells.get("B14").putValue(2.4);
            worksheet.cells.get("B15").putValue(1.8);
            worksheet.cells.get("B16").putValue(10.1);

            // Create a pie chart and add it to the collection of charts
            const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);

            // Access newly created Chart instance
            const chart = worksheet.charts.get(id);

            // Set series data range
            chart.nSeries.add("B1:B16", true);

            // Set category data range
            chart.nSeries.categoryData = "A1:A16";

            // Turn off legend
            chart.showLegend = false;

            // Access data labels
            const dataLabels = chart.nSeries.get(0).dataLabels;

            // Turn on category names
            dataLabels.showCategoryName = true;

            // Turn on percentage format
            dataLabels.showPercentage = true;

            // Set position
            dataLabels.position = LabelPositionType.OutsideEnd;

            // Set separator
            dataLabels.separatorType = DataLabelsSeparatorType.Comma;

            // Saving the modified Excel file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

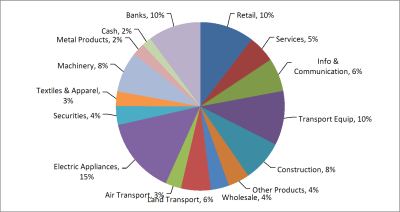

حتى الآن قمنا بإنشاء رسم بياني دائري وضبط جوانبه المختلفة. الآن سنقوم بتشغيل خطوط الريادة للرسم البياني. يرجى ملاحظة أنه لعرض خطوط الريادة، علينا نقل تسميات البيانات قليلاً.

يقوم الكود التالي بتشغيل خطوط الريادة، يحدث الرسم البياني، ومن ثم يحسب مواقع تسميات البيانات لنقلها وفقًا لذلك.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Pie Chart Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Pie Chart Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;

        const initPromise = AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            await initPromise;

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object by opening the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first worksheet
            const worksheet = workbook.worksheets.get(0);

            const cells = worksheet.cells;

            // Add two columns of data
            cells.get("A1").value = "Retail";
            cells.get("A2").value = "Services";
            cells.get("A3").value = "Info & Communication";
            cells.get("A4").value = "Transport Equip";
            cells.get("A5").value = "Construction";
            cells.get("A6").value = "Other Products";
            cells.get("A7").value = "Wholesale";
            cells.get("A8").value = "Land Transport";
            cells.get("A9").value = "Air Transport";
            cells.get("A10").value = "Electric Appliances";
            cells.get("A11").value = "Securities";
            cells.get("A12").value = "Textiles & Apparel";
            cells.get("A13").value = "Machinery";
            cells.get("A14").value = "Metal Products";
            cells.get("A15").value = "Cash";
            cells.get("A16").value = "Banks";

            cells.get("B1").value = 10.4;
            cells.get("B2").value = 5.2;
            cells.get("B3").value = 6.4;
            cells.get("B4").value = 10.4;
            cells.get("B5").value = 7.9;
            cells.get("B6").value = 4.1;
            cells.get("B7").value = 3.5;
            cells.get("B8").value = 5.7;
            cells.get("B9").value = 3;
            cells.get("B10").value = 14.7;
            cells.get("B11").value = 3.6;
            cells.get("B12").value = 2.8;
            cells.get("B13").value = 7.8;
            cells.get("B14").value = 2.4;
            cells.get("B15").value = 1.8;
            cells.get("B16").value = 10.1;

            // Create a pie chart and add it to the collection of charts
            const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);

            // Access newly created Chart instance
            const chart = worksheet.charts.get(id);

            // Set series data range
            chart.nSeries.add("B1:B16", true);

            // Set category data range
            chart.nSeries.categoryData = "A1:A16";

            // Turn off legend
            chart.showLegend = false;

            // Access data labels
            const dataLabels = chart.nSeries.get(0).dataLabels;

            // Turn on category names
            dataLabels.showCategoryName = true;

            // Turn on percentage format
            dataLabels.showPercentage = true;

            // Set position
            dataLabels.position = LabelPositionType.OutsideEnd;

            // Set separator
            dataLabels.separatorType = DataLabelsSeparatorType.Comma;

            // Turn on leader lines
            chart.nSeries.get(0).hasLeaderLines = true;

            // Calculate chart
            chart.calculate();

            // You need to move DataLabels a little leftward or rightward depending on their position to show leader lines
            const DELTA = 100;
            const series0 = chart.nSeries.get(0);
            for (let i = 0; i < series0.points.count; i++) {
                const pt = series0.points.get(i);
                let X = pt.dataLabels.x;
                // If it is greater than 2000, then move the X position a little right otherwise move the X position a little left
                if (X > 2000)
                    pt.dataLabels.x = X + DELTA;
                else
                    pt.dataLabels.x = X - DELTA;
            }

            // Save the modified Excel file and provide download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

أخيرًا، يقوم الكود التالي بحفظ الرسم البياني بتنسيق الصورة ودفتر العمل بتنسيق XLSX.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Create Pie Chart Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none; margin-right: 10px;">Download Excel File</a>
        <a id="downloadImageLink" style="display: none;">Download Chart Image</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            resultDiv.innerHTML = '';

            // If a file is provided, load it. Otherwise create a new workbook in XLSX format.
            let workbook;
            if (fileInput.files && fileInput.files.length > 0) {
                const file = fileInput.files[0];
                const arrayBuffer = await file.arrayBuffer();
                workbook = new Workbook(new Uint8Array(arrayBuffer));
            } else {
                workbook = new Workbook(AsposeCells.FileFormatType.Xlsx);
            }

            // Access the first worksheet
            const worksheet = workbook.worksheets.get(0);

            // Add two columns of data
            worksheet.cells.get("A1").putValue("Retail");
            worksheet.cells.get("A2").putValue("Services");
            worksheet.cells.get("A3").putValue("Info & Communication");
            worksheet.cells.get("A4").putValue("Transport Equip");
            worksheet.cells.get("A5").putValue("Construction");
            worksheet.cells.get("A6").putValue("Other Products");
            worksheet.cells.get("A7").putValue("Wholesale");
            worksheet.cells.get("A8").putValue("Land Transport");
            worksheet.cells.get("A9").putValue("Air Transport");
            worksheet.cells.get("A10").putValue("Electric Appliances");
            worksheet.cells.get("A11").putValue("Securities");
            worksheet.cells.get("A12").putValue("Textiles & Apparel");
            worksheet.cells.get("A13").putValue("Machinery");
            worksheet.cells.get("A14").putValue("Metal Products");
            worksheet.cells.get("A15").putValue("Cash");
            worksheet.cells.get("A16").putValue("Banks");

            worksheet.cells.get("B1").putValue(10.4);
            worksheet.cells.get("B2").putValue(5.2);
            worksheet.cells.get("B3").putValue(6.4);
            worksheet.cells.get("B4").putValue(10.4);
            worksheet.cells.get("B5").putValue(7.9);
            worksheet.cells.get("B6").putValue(4.1);
            worksheet.cells.get("B7").putValue(3.5);
            worksheet.cells.get("B8").putValue(5.7);
            worksheet.cells.get("B9").putValue(3);
            worksheet.cells.get("B10").putValue(14.7);
            worksheet.cells.get("B11").putValue(3.6);
            worksheet.cells.get("B12").putValue(2.8);
            worksheet.cells.get("B13").putValue(7.8);
            worksheet.cells.get("B14").putValue(2.4);
            worksheet.cells.get("B15").putValue(1.8);
            worksheet.cells.get("B16").putValue(10.1);

            // Create a pie chart and add it to the collection of charts
            const id = worksheet.charts.add(AsposeCells.ChartType.Pie, 3, 3, 23, 13);

            // Access newly created Chart instance
            const chart = worksheet.charts.get(id);

            // Set series data range
            chart.nSeries.add("B1:B16", true);

            // Set category data range
            chart.nSeries.categoryData = "A1:A16";

            // Turn off legend
            chart.showLegend = false;

            // Access data labels
            const dataLabels = chart.nSeries.get(0).dataLabels;

            // Turn on category names
            dataLabels.showCategoryName = true;

            // Turn on percentage format
            dataLabels.showPercentage = true;

            // Set position
            dataLabels.position = AsposeCells.LabelPositionType.OutsideEnd;

            // Set separator
            dataLabels.separatorType = AsposeCells.DataLabelsSeparatorType.Comma;

            // In order to save the chart image, create an instance of ImageOrPrintOptions
            const anOption = new AsposeCells.ImageOrPrintOptions();

            // Set image format
            anOption.imageType = AsposeCells.ImageType.Png;

            // Set resolution
            anOption.horizontalResolution = 200;
            anOption.verticalResolution = 200;

            // Render chart to image (returns image byte array in browser)
            const imageData = chart.toImage(anOption);
            const imageBlob = new Blob([imageData], { type: 'image/png' });
            const downloadImageLink = document.getElementById('downloadImageLink');
            downloadImageLink.href = URL.createObjectURL(imageBlob);
            downloadImageLink.download = 'output_out.png';
            downloadImageLink.style.display = 'inline-block';
            downloadImageLink.textContent = 'Download Chart Image';

            // Save the workbook to see chart inside the Excel
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'inline-block';
            downloadLink.textContent = 'Download Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Chart created and files are ready. Click the download links to get the results.</p>';
        });
    </script>
</html>
الرسم البياني الناتج
todo:image_alt_text

مواضيع متقدمة

مقالات ذات صلة

تخصيص المخططات باستخدام جافا سكريبت عبر C++ تحويل المخطط إلى صورة باستخدام JavaScript عبر C++
