استخراج كائنات OLE من دفتر العمل باستخدام JavaScript عبر C++

استخراج كائنات Ole من دفتر عمل

إنشاء دفتر عمل قالب

  1. أنشئ دفتر عمل في Microsoft Excel.
  2. أضف مستند Word، ودفتر عمل Excel، ومستند PDF كعناصر تحكم OLE على الورقة الأولى.

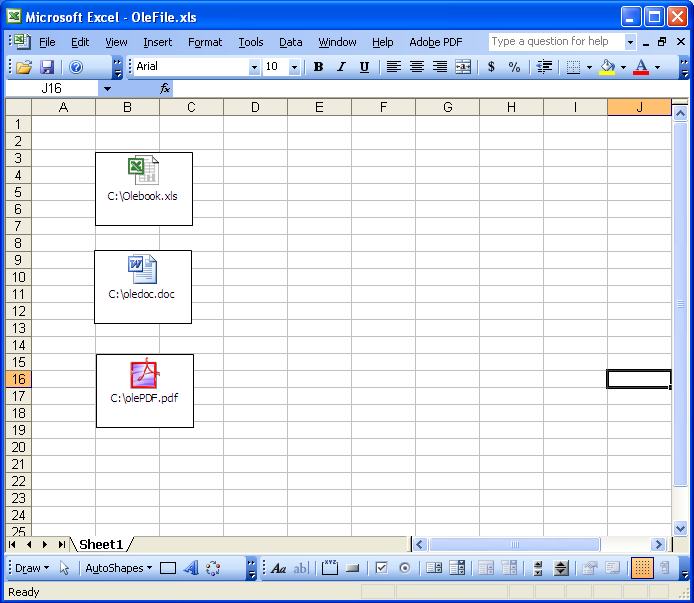

مستند القالب مع كائنات OLE (OleFile.xls)
todo:image_alt_text

التالي، استخرج كائنات OLE واحفظها على القرص الصلب مع أنواع ملفاتها الخاصة.

تنزيل وتثبيت Aspose.Cells

  1. تحميل Aspose.Cells for JavaScript عبر C++.
  2. قم بتثبيته على كمبيوتر التطوير الخاص بك.

جميع مكونات Aspose، عند التثبيت، تعمل في وضع التقييم. وضع التقييم لا يحتوي على حد زمني ويقوم فقط بحقن العلامات المائية إلى الوثائق المنتجة.

إنشاء مشروع

ابدأ بيئة جافا سكريبت وإنشاء مشروع جديد. سيُظهر هذا المثال تطبيقًا يعتمد على المتصفح، لكن يمكن أيضًا استخدام أي بيئة متوافقة مع جافا سكريبت.

  1. إضافة الاعتمادات
    1. أدخل سكربت Aspose.Cells for JavaScript عبر C++ في صفحة HTML الخاصة بك وأنشئ واجهة مستخدم بسيطة لاختيار ملف Excel واستخراج كائنات OLE،.
<!DOCTYPE html>
<html>
    <head>
        <title>Extract OLE Objects</title>
        <meta charset="utf-8" />
        <style>
            body { font-family: Arial, sans-serif; margin: 20px; }
            #downloadLink { display: none; margin-top: 10px; }
            .ole-link { display: block; margin: 6px 0; }
            .info { margin-top: 12px; }
        </style>
    </head>
    <body>
        <h1>Extract OLE Objects</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.xlsm,.xlsb" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            const primaryDownloadLink = document.getElementById('downloadLink');
            resultDiv.innerHTML = '';
            primaryDownloadLink.style.display = 'none';
            primaryDownloadLink.href = '';
            primaryDownloadLink.textContent = '';

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiate workbook from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            const extractedLinks = [];
            let totalExtracted = 0;

            // Iterate through all worksheets
            const sheetsCount = workbook.worksheets.count;
            for (let s = 0; s < sheetsCount; s++) {
                const worksheet = workbook.worksheets.get(s);

                // Access OLE objects collection on the worksheet
                const oleObjects = worksheet.oleObjects;
                if (!oleObjects) continue;

                const oleCount = oleObjects.count;
                for (let o = 0; o < oleCount; o++) {
                    const ole = oleObjects.get(o);

                    // Attempt to get a filename from ole properties
                    // Applying universal getter->property conversion:
                    // getSourceFullName() -> sourceFullName, getName() -> name, getObjectData() -> objectData
                    let fileName = ole.sourceFullName || ole.name || `ole_object_sheet${s}_idx${o}.bin`;

                    // Ensure filename is just the basename
                    try {
                        // simple basename extraction
                        const parts = fileName.split(/[/\\]/);
                        fileName = parts[parts.length - 1] || fileName;
                    } catch (e) {
                        // if something unexpected, fallback
                        fileName = `ole_object_sheet${s}_idx${o}.bin`;
                    }

                    // Get the raw object data as bytes
                    const objectData = ole.objectData;

                    // Some runtimes may return a typed array, ArrayBuffer or plain JS array.
                    let blobData;
                    if (objectData instanceof ArrayBuffer) {
                        blobData = new Blob([new Uint8Array(objectData)]);
                    } else if (ArrayBuffer.isView(objectData)) {
                        blobData = new Blob([objectData]);
                    } else if (objectData && objectData.buffer && ArrayBuffer.isView(objectData.buffer)) {
                        blobData = new Blob([objectData]);
                    } else if (objectData && objectData.byteLength !== undefined) {
                        // fallback for objects exposing byteLength
                        blobData = new Blob([objectData]);
                    } else {
                        // If objectData is a normal JS array of bytes
                        blobData = new Blob([new Uint8Array(objectData)]);
                    }

                    const url = URL.createObjectURL(blobData);

                    // Create a download link element for this OLE object
                    const a = document.createElement('a');
                    a.href = url;
                    a.download = fileName;
                    a.textContent = `Download extracted OLE object: ${fileName}`;
                    a.className = 'ole-link';
                    resultDiv.appendChild(a);

                    extractedLinks.push({ name: fileName, url });
                    totalExtracted++;
                }
            }

            if (totalExtracted === 0) {
                resultDiv.innerHTML = '<p class="info">No OLE objects were found in the uploaded workbook.</p>';
            } else {
                // Make the first extracted file available via the primary downloadLink element as well
                if (extractedLinks.length) {
                    primaryDownloadLink.href = extractedLinks[0].url;
                    primaryDownloadLink.download = extractedLinks[0].name;
                    primaryDownloadLink.style.display = 'inline-block';
                    primaryDownloadLink.textContent = `Download First Extracted OLE Object: ${extractedLinks[0].name}`;
                }
                const summary = document.createElement('p');
                summary.className = 'info';
                summary.innerHTML = `<strong>Extracted ${totalExtracted} OLE object(s).</strong> Use the links above to download them.`;
                resultDiv.insertBefore(summary, resultDiv.firstChild);
            }
        });
    </script>
</html>
```html
<!DOCTYPE html>
<html>
    <head>
        <title>Extract OLE Objects from Workbook</title>
    </head>
    <body>
        <h1>Extract OLE Objects from Workbook</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="extractBtn">Extract OLE Objects</button>
        <div id="result"></div>
        <div id="downloads"></div>

        <script src="aspose.cells.js"></script>
        <script type="text/javascript">
            const { Workbook, FileFormatType, SaveFormat } = AsposeCells;

            AsposeCells.onReady().then(() => {
                console.log("Aspose.Cells initialized");
            });

            document.getElementById('extractBtn').addEventListener('click', async () => {
                const fileInput = document.getElementById('fileInput');
                const result = document.getElementById('result');
                const downloads = document.getElementById('downloads');
                downloads.innerHTML = '';
                if (!fileInput.files.length) {
                    result.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                    return;
                }

                const file = fileInput.files[0];
                const arrayBuffer = await file.arrayBuffer();
                const workbook = new Workbook(new Uint8Array(arrayBuffer));

                // Get the OleObject collection in the first worksheet.
                const worksheet = workbook.worksheets.get(0);
                const oles = worksheet.oleObjects;

                const count = oles.count;
                if (count === 0) {
                    result.innerHTML = '<p>No OLE objects found in the workbook.</p>';
                    return;
                }

                result.innerHTML = `<p>Found ${count} OLE object(s). Preparing downloads...</p>`;

                for (let i = 0; i < count; i++) {
                    const ole = oles.get(i);
                    // Specify each file format based on the ole object format type.
                    let ext = 'bin';
                    switch (ole.fileFormatType) {
                        case FileFormatType.Doc:
                            ext = 'doc';
                            break;
                        case FileFormatType.Excel97To2003:
                            ext = 'xls';
                            break;
                        case FileFormatType.Xlsx:
                            ext = 'xlsx';
                            break;
                        case FileFormatType.Ppt:
                            ext = 'ppt';
                            break;
                        case FileFormatType.Pdf:
                            ext = 'pdf';
                            break;
                        case FileFormatType.Unknown:
                            ext = 'jpg';
                            break;
                        default:
                            ext = 'bin';
                            break;
                    }

                    const fileName = `outOle${i}.${ext}`;

                    // Save the ole object as a new excel file if the object type is xlsx.
                    if (ole.fileFormatType === FileFormatType.Xlsx) {
                        const ms = ole.objectData;
                        if (ms != null) {
                            const oleBook = new Workbook(ms);
                            oleBook.settings.isHidden = false;
                            const outData = oleBook.save(SaveFormat.Xlsx);
                            const blob = new Blob([outData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
                            const a = document.createElement('a');
                            a.href = URL.createObjectURL(blob);
                            a.download = fileName;
                            a.textContent = `Download ${fileName}`;
                            downloads.appendChild(a);
                            downloads.appendChild(document.createElement('br'));
                        }
                    } else {
                        const data = ole.objectData;
                        if (data != null) {
                            const blob = new Blob([data]);
                            const a = document.createElement('a');
                            a.href = URL.createObjectURL(blob);
                            a.download = fileName;
                            a.textContent = `Download ${fileName}`;
                            downloads.appendChild(a);
                            downloads.appendChild(document.createElement('br'));
                        }
                    }
                }

                result.innerHTML += '<p style="color: green;">Extraction completed! Use the links above to download the extracted files.</p>';
            });
        </script>
    </body>
</html>
