عرض شبكة صلبة أثناء تحويل Excel إلى PDF باستخدام JavaScript عبر C++

للتوافق مع الإصدارات القديمة، تقوم Aspose.Cells بشكل افتراضي برسم خطوط الشبكة كنقطة أثناء تحويل إكسيل إلى PDF. ومع ذلك، يعرّف إكسيل الحديثة خطوط الشبكة كخطوط صلبة اليوم.

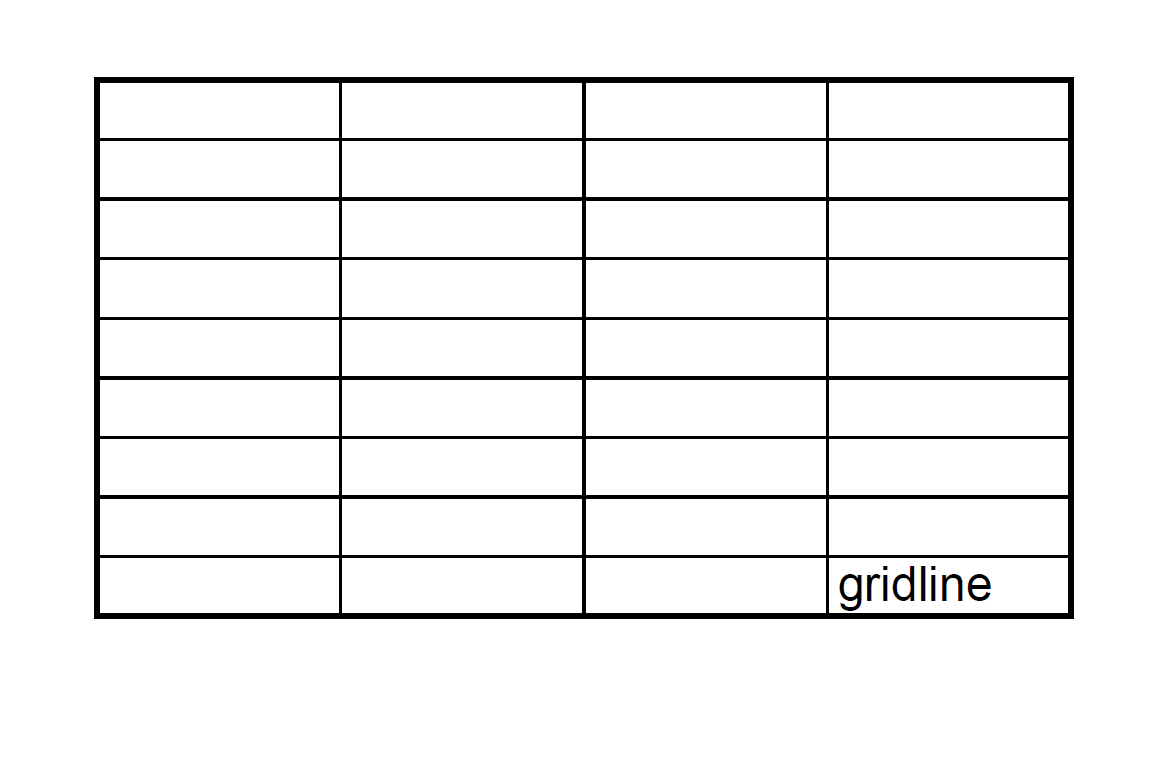

باستخدام الخيار PdfSaveOptions.gridlineTypes، يمكن لـ Aspose.Cells for JavaScript عبر C++ أيضًا عرض خطوط الشبكة كخطوط صلبة.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Example - Generate PDF with Gridlines</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Loads the workbook which contains hidden external links (as in original JavaScript example)
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Create an empty Workbook
            const wb = new Workbook();

            // Prepare data
            const worksheet = wb.worksheets.get(0);
            const cell = worksheet.cells.get("D9");
            cell.value = "gridline";

            // Enable to print gridline
            worksheet.pageSetup.printGridlines = true;

            // Set to render gridline as solid line
            const pdfSaveOptions = new PdfSaveOptions();
            pdfSaveOptions.gridlineType = AsposeCells.GridlineType.Hair;

            // Save the pdf file with PdfSaveOptions
            const outputData = wb.save(SaveFormat.Pdf, pdfSaveOptions);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'test_Cs.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download PDF File';

            document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
        });
    </script>
</html>
