تعيين نص إدخال أسطورة المخطط ليكون بدون باستخدام Aspose.Cells for JavaScript عبر C++

Contents
[ ]

يقوم الكود العينة التالي بتعيين نص إدخال تسمية المخطط الثاني إلى لا شيء. يرجى تنزيل ملف Excel عينة المستخدم في هذا الكود وملف Excel الخرج الذي تم إنشاؤه به للرجوع إليه.

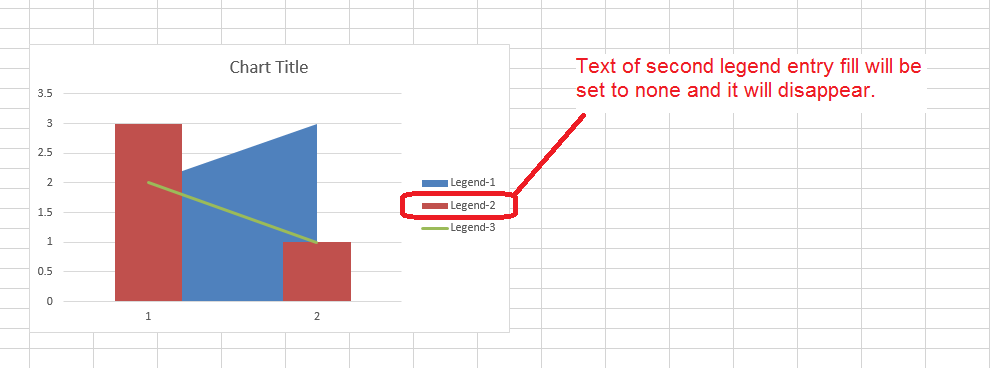

تبرز لقطة الشاشة التالية تأثير هذا الكود على ملف Excel النموذجي.

todo:image_alt_text

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Chart Legend Entry Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first worksheet
            const sheet = workbook.worksheets.get(0);

            // Access the first chart inside the sheet
            const chart = sheet.charts.get(0);

            // Set text of second legend entry fill to none
            const legendEntry = chart.legend.legendEntries.get(1);
            legendEntry.isTextNoFill = true;

            // Save the workbook in xlsx format and provide download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'ChartLegendEntry_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
