إدارة علامات البيانات في رسوم بيانية Excel
Contents
[
Hide
]
تعتبر علامات البيانات جزءًا هامًا من الرسم البياني.
يمكننا بسهولة معرفة القيمة، النسبة المئوية، إلخ، لكل سلسلة.
خيارات علامات البيانات
تسمح Aspose.Cells للبايثون via .NET أيضًا بإدارة تسميات البيانات للرسم البياني في وقت التشغيل، مع كائن DataLabels، من السهل نقل، تحديث، وتنسيق تسميات البيانات للرسم البياني.
||
إدارة علامات البيانات في الرسم البياني
من السهل إدارة تسميات البيانات للرسوم البيانية باستخدام Aspose.Cells للبايثون via .NET DataLabels.

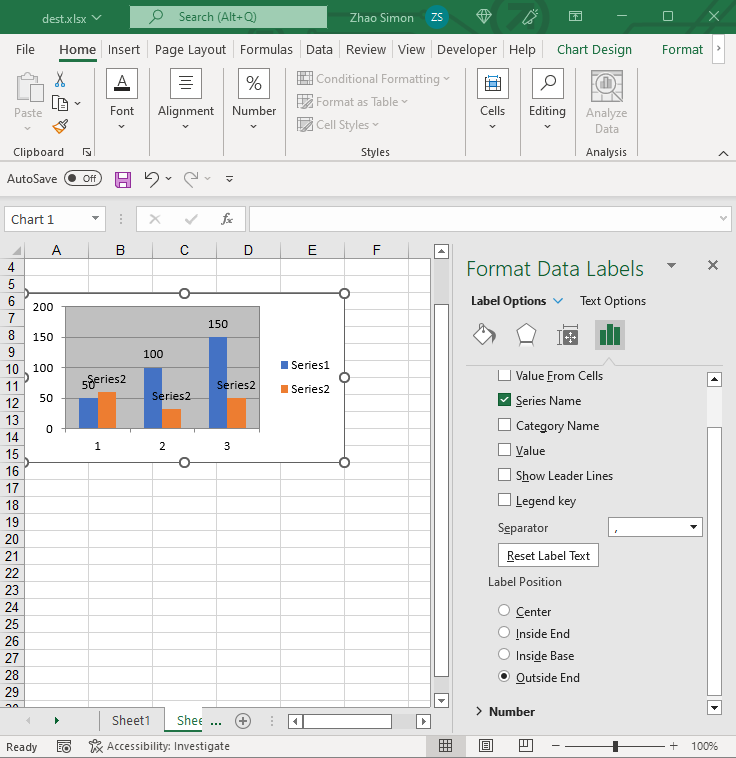

المقطع البرمجي التالي يوضح كيفية إدارة علامات البيانات:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
from aspose.cells import Workbook | |
from aspose.cells.charts import ChartType, LabelPositionType | |
# Instantiating a Workbook object | |
workbook = Workbook() | |
# Adding a new worksheet to the Workbook object | |
sheetIndex = workbook.worksheets.add() | |
# Obtaining the reference of the newly added worksheet by passing its sheet index | |
worksheet = workbook.worksheets[sheetIndex] | |
# Adding sample values to cells | |
worksheet.cells.get("A1").put_value(50) | |
worksheet.cells.get("A2").put_value(100) | |
worksheet.cells.get("A3").put_value(150) | |
worksheet.cells.get("B1").put_value(60) | |
worksheet.cells.get("B2").put_value(32) | |
worksheet.cells.get("B3").put_value(50) | |
# Adding a chart to the worksheet | |
chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
# Accessing the instance of the newly added chart | |
chart = worksheet.charts[chartIndex] | |
# Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
chart.n_series.add("A1:B3", True) | |
# Show value labels | |
chart.n_series[0].data_labels.show_value = True | |
# Show series name labels | |
chart.n_series[1].data_labels.show_series_name = True | |
# Move labels to center | |
chart.n_series[1].data_labels.position = LabelPositionType.CENTER | |
# Save the file | |
workbook.save("chart_datalabels.xlsx") |
