Mögliche Verwendungsszenarien
Ein Slicer wird verwendet, um Daten schnell zu filtern. Es kann sowohl in einer Tabelle als auch in einer Pivot-Tabelle verwendet werden. Microsoft Excel ermöglicht das Erstellen eines Slicers, indem Sie eine Tabelle oder Pivot-Tabelle auswählen und dann auf Einfügen > Slicer klicken. Aspose.Cells for JavaScript via C++ ermöglicht auch die Erstellung eines Slicers mit der Methode Worksheet.slicers.add().
Erstellen Sie ein Schneidwerkzeug zu einem Pivot-Table

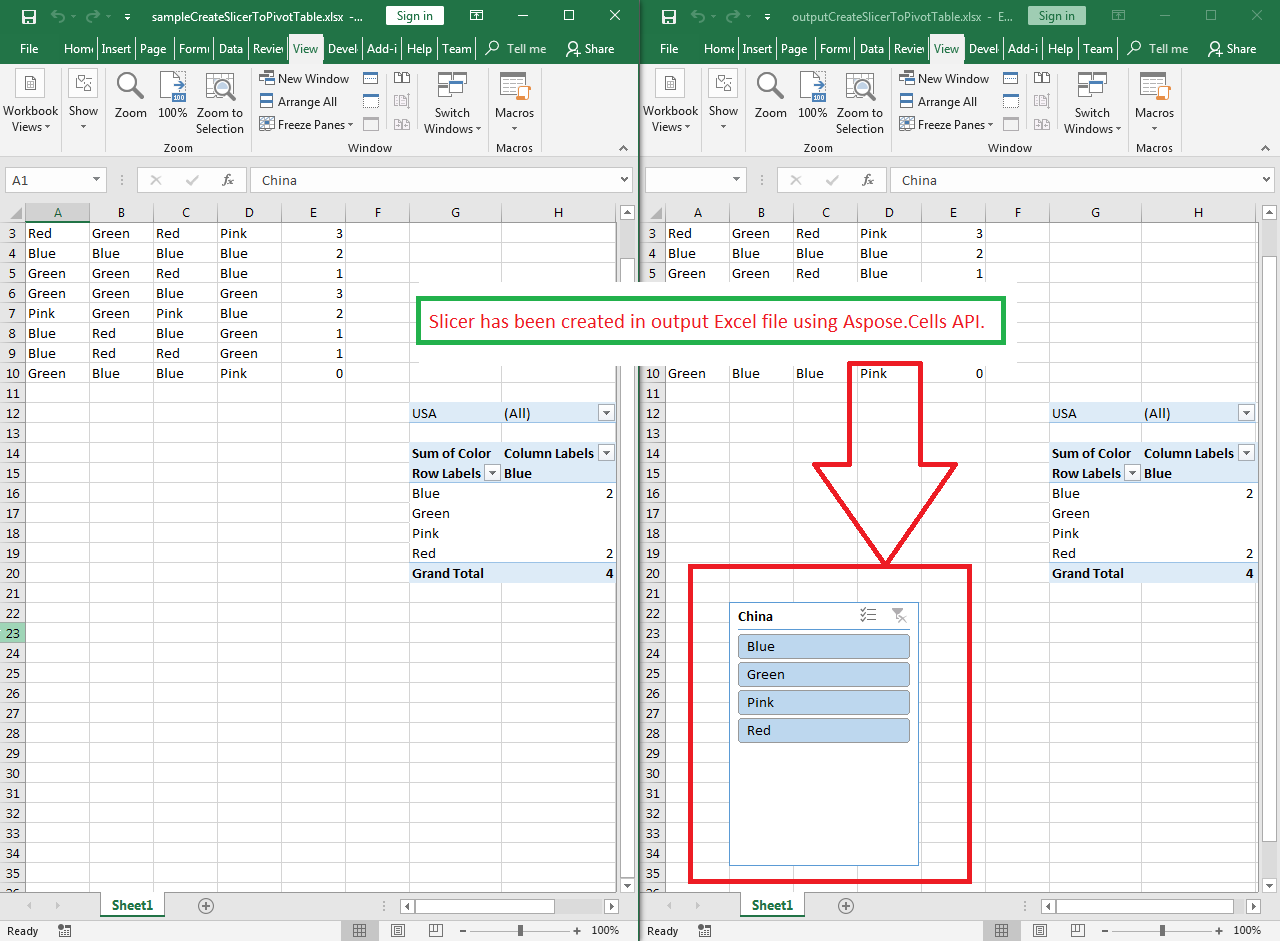

Siehe folgenden Beispielcode. Es lädt die Beispieldatei Excel, die die Pivot-Tabelle enthält. Dann erstellt es den Slicer basierend auf dem ersten Basis-Pivotfeld. Schließlich speichert es die Arbeitsmappe im Ausgabe XLSX und Ausgabe XLSB Format. Der folgende Screenshot zeigt den durch Aspose.Cells for JavaScript via C++ erstellten Slicer in der Ausgabedatei Excel.
Beispielcode
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Create Slicer to PivotTable</title>
</head>
<body>
<h1>Create Slicer to PivotTable Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.xlsb,.csv" />
<button id="runExample">Run Example</button>
<br/><br/>
<a id="downloadXlsxLink" style="display: none;">Download XLSX Result</a>
<br/>
<a id="downloadXlsbLink" style="display: none;">Download XLSB Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file (e.g., sampleCreateSlicerToPivotTable.xlsx).</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const wb = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const ws = wb.worksheets.get(0);
// Access first pivot table inside the worksheet.
const pt = ws.pivotTables.get(0);
// Add slicer relating to pivot table with first base field at cell B22.
const idx = ws.slicers.add(pt, "B22", pt.baseFields.get(0));
// Access the newly added slicer from slicer collection.
const slicer = ws.slicers.get(idx);
// Save the workbook in output XLSX format.
const outputDataXlsx = wb.save(SaveFormat.Xlsx);
const blobXlsx = new Blob([outputDataXlsx]);
const downloadXlsxLink = document.getElementById('downloadXlsxLink');
downloadXlsxLink.href = URL.createObjectURL(blobXlsx);
downloadXlsxLink.download = 'outputCreateSlicerToPivotTable.xlsx';
downloadXlsxLink.style.display = 'inline';
downloadXlsxLink.textContent = 'Download outputCreateSlicerToPivotTable.xlsx';
// Save the workbook in output XLSB format.
const outputDataXlsb = wb.save(SaveFormat.Xlsb);
const blobXlsb = new Blob([outputDataXlsb]);
const downloadXlsbLink = document.getElementById('downloadXlsbLink');
downloadXlsbLink.href = URL.createObjectURL(blobXlsb);
downloadXlsbLink.download = 'outputCreateSlicerToPivotTable.xlsb';
downloadXlsbLink.style.display = 'inline';
downloadXlsbLink.textContent = 'Download outputCreateSlicerToPivotTable.xlsb';
document.getElementById('result').innerHTML = '<p style="color: green;">Slicer created and files are ready for download.</p>';
});
</script>
</html>
Erstellen Sie ein Schneidwerkzeug zu Excel-Tabelle
Bitte beachten Sie den folgenden Beispielcode. Es lädt die Beispieldatei Excel, die eine Tabelle enthält. Anschließend wird der Slicer basierend auf der ersten Spalte erstellt. Schließlich speichert es die Arbeitsmappe im Format output XLSX.
Beispielcode
<!DOCTYPE html>
<html>
<head>
<title>Create Slicer to Excel Table Example</title>
</head>
<body>
<h1>Create Slicer to Excel Table Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
let asposeReady = false;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
asposeReady = true;
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
if (!asposeReady) {
document.getElementById('result').innerHTML = '<p style="color: red;">Aspose.Cells is not initialized yet. Please wait and try again.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const worksheet = workbook.worksheets.get(0);
// Access first table inside the worksheet.
const table = worksheet.listObjects.get(0);
// Add slicer
const idx = worksheet.slicers.add(table, 0, "H5");
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputCreateSlicerToExcelTable.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Slicer added successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
