Erstellen eines Kreisdiagramms mit Leiterlinien mit JavaScript über C++
Contents
[
Hide
]
Dieser Artikel erklärt, wie man mit der Aspose.Cells for JavaScript API über C++ ein Kreisdiagramm mit Leiterlinien von Grund auf erstellt. In Excel ist die Option ‘Leiterlinien anzeigen’ standardmäßig aktiviert, daher werden beim Erstellen eines Kreisdiagramms in Excel die Leiterlinien angezeigt. Beim Erstellen eines ähnlichen Diagramms mit Aspose.Cells APIs müssen Sie die Eigenschaft Series.hasLeaderLines explizit setzen.
Um die Verwendung von Aspose.Cells for JavaScript über C++ API zur Erstellung eines Tortencharts mit Leader-Lines zu demonstrieren, erstellen wir zunächst ein neues Workbook und geben einige Daten ein, die als Serien-Datenquelle dienen. Sobald die Daten eingerichtet sind, fügen wir eine Chart vom Typ ChartType.Pie zur Sammlung der Diagramme hinzu und setzen deren verschiedene Aspekte, um die gewünschte Diagrammansicht zu erhalten.
<!DOCTYPE html>
<html>
<head>
<title>Create Pie Chart Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>

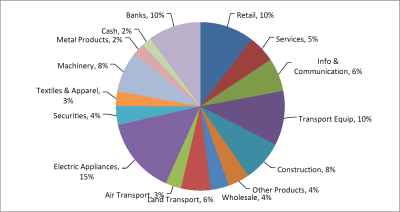

Bisher haben wir ein Tortendiagramm erstellt und seine verschiedenen Aspekte festgelegt. Jetzt werden wir die Führungslinien für das Diagramm einschalten. Bitte beachten Sie, dass wir die Datenbeschriftungen ein wenig verschieben müssen, um die Führungslinien anzuzeigen.
Der folgende Code aktiviert die Führungslinien, aktualisiert das Diagramm und berechnet dann die Positionen der Datenbeschriftungen, um sie entsprechend zu verschieben.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Pie Chart Example</title>
</head>
<body>
<h1>Aspose.Cells Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
const initPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await initPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
const cells = worksheet.cells;
// Add two columns of data
cells.get("A1").value = "Retail";
cells.get("A2").value = "Services";
cells.get("A3").value = "Info & Communication";
cells.get("A4").value = "Transport Equip";
cells.get("A5").value = "Construction";
cells.get("A6").value = "Other Products";
cells.get("A7").value = "Wholesale";
cells.get("A8").value = "Land Transport";
cells.get("A9").value = "Air Transport";
cells.get("A10").value = "Electric Appliances";
cells.get("A11").value = "Securities";
cells.get("A12").value = "Textiles & Apparel";
cells.get("A13").value = "Machinery";
cells.get("A14").value = "Metal Products";
cells.get("A15").value = "Cash";
cells.get("A16").value = "Banks";
cells.get("B1").value = 10.4;
cells.get("B2").value = 5.2;
cells.get("B3").value = 6.4;
cells.get("B4").value = 10.4;
cells.get("B5").value = 7.9;
cells.get("B6").value = 4.1;
cells.get("B7").value = 3.5;
cells.get("B8").value = 5.7;
cells.get("B9").value = 3;
cells.get("B10").value = 14.7;
cells.get("B11").value = 3.6;
cells.get("B12").value = 2.8;
cells.get("B13").value = 7.8;
cells.get("B14").value = 2.4;
cells.get("B15").value = 1.8;
cells.get("B16").value = 10.1;
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Turn on leader lines
chart.nSeries.get(0).hasLeaderLines = true;
// Calculate chart
chart.calculate();
// You need to move DataLabels a little leftward or rightward depending on their position to show leader lines
const DELTA = 100;
const series0 = chart.nSeries.get(0);
for (let i = 0; i < series0.points.count; i++) {
const pt = series0.points.get(i);
let X = pt.dataLabels.x;
// If it is greater than 2000, then move the X position a little right otherwise move the X position a little left
if (X > 2000)
pt.dataLabels.x = X + DELTA;
else
pt.dataLabels.x = X - DELTA;
}
// Save the modified Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Abschließend speichert der folgende Code das Diagramm im Bildformat und die Arbeitsmappe im XLSX-Format.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none; margin-right: 10px;">Download Excel File</a>
<a id="downloadImageLink" style="display: none;">Download Chart Image</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
resultDiv.innerHTML = '';
// If a file is provided, load it. Otherwise create a new workbook in XLSX format.
let workbook;
if (fileInput.files && fileInput.files.length > 0) {
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
workbook = new Workbook(new Uint8Array(arrayBuffer));
} else {
workbook = new Workbook(AsposeCells.FileFormatType.Xlsx);
}
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(AsposeCells.ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = AsposeCells.LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = AsposeCells.DataLabelsSeparatorType.Comma;
// In order to save the chart image, create an instance of ImageOrPrintOptions
const anOption = new AsposeCells.ImageOrPrintOptions();
// Set image format
anOption.imageType = AsposeCells.ImageType.Png;
// Set resolution
anOption.horizontalResolution = 200;
anOption.verticalResolution = 200;
// Render chart to image (returns image byte array in browser)
const imageData = chart.toImage(anOption);
const imageBlob = new Blob([imageData], { type: 'image/png' });
const downloadImageLink = document.getElementById('downloadImageLink');
downloadImageLink.href = URL.createObjectURL(imageBlob);
downloadImageLink.download = 'output_out.png';
downloadImageLink.style.display = 'inline-block';
downloadImageLink.textContent = 'Download Chart Image';
// Save the workbook to see chart inside the Excel
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'inline-block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Chart created and files are ready. Click the download links to get the results.</p>';
});
</script>
</html>
| Ergebnis Tortendiagramm |
|---|
 |
Erweiterte Themen
- Benutzerdefinierte Farben für Tortenstücke oder Sektoren in einem Tortendiagramm
- Herausfinden, ob Datenpunkte in der zweiten Torte oder Balken in einem Tortendiagramm der Torten oder Balken sind
