Filterobjekte beim Laden der Arbeitsmappe oder des Arbeitsblatts mit JavaScript über C++
Contents
[
Hide
]
Mögliche Verwendungsszenarien
Bitte verwenden Sie die Eigenschaft LoadOptions.loadFilter beim Filtern von Daten aus der Arbeitsmappe. Wenn Sie Daten aus einzelnen Arbeitsblättern filtern möchten, müssen Sie die Methode LoadFilter.startSheet(Worksheet) überschreiben. Bitte geben Sie einen entsprechenden Wert aus der Enumeration LoadDataFilterOptions an, wenn Sie LoadFilter erstellen oder damit arbeiten.
Die Enumeration LoadDataFilterOptions hat die folgenden möglichen Werte.
- Alle
- Bucheinstellungen
- Zelle Leer
- Zelle Bool
- Zelldaten
- Zellenfehler
- Zellnumerisch
- Zellenzeichenfolge
- Zellwert
- Chart
- Bedingte Formatierung
- Datenvalidierung
- Definierte Namen
- Dokumenteigenschaften
- Formel
- Hyperlinks
- Zusammengeführter Bereich
- Pivot-Tabelle
- Einstellungen
- Form
- Tabellendaten
- Tabelleneinstellungen
- Struktur
- Stil
- Tabelle
- VBA
- XmlMap
Filterobjekte beim Laden der Arbeitsmappe
Der folgende Beispielcode veranschaulicht, wie Diagramme aus der Arbeitsmappe gefiltert werden. Bitte überprüfen Sie die Beispiel-Excel-Datei, die in diesem Code verwendet wird, und das Ausgabe-PDF, das von ihm generiert wurde. Wie Sie im Ausgabe-PDF sehen können, wurden alle Diagramme aus der Arbeitsmappe gefiltert.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Filter Charts and Save to PDF Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, LoadOptions, LoadFilter, LoadDataFilterOptions, PdfSaveOptions } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const downloadLink = document.getElementById('downloadLink');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Create load options and filter out charts
const lOptions = new LoadOptions();
lOptions.loadFilter = new LoadFilter(LoadDataFilterOptions.All & ~LoadDataFilterOptions.Chart);
// Load the workbook with the above filter
const workbook = new Workbook(new Uint8Array(arrayBuffer), lOptions);
// Create PDF save options and set one page per sheet
const pOptions = new PdfSaveOptions();
pOptions.onePagePerSheet = true;
// Save the workbook in PDF format
const outputData = workbook.save(SaveFormat.Pdf, pOptions);
const blob = new Blob([outputData], { type: 'application/pdf' });
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'sampleFilterCharts.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">Workbook saved to PDF (charts filtered out). Click the download link to get the PDF.</p>';
});
</script>
</html>
Filterobjekte beim Laden des Arbeitsblatts
Der folgende Beispielcode lädt die Quell-Excel-Datei und filtert die folgenden Daten aus ihren Arbeitsblättern mithilfe eines benutzerdefinierten Filters.
- Es filtert Diagramme aus dem Arbeitsblatt mit dem Namen NoCharts.
- Es filtert Formen aus dem Arbeitsblatt mit dem Namen NoShapes.
- Es filtert bedingte Formatierungen aus dem Arbeitsblatt mit dem Namen NoConditionalFormatting.

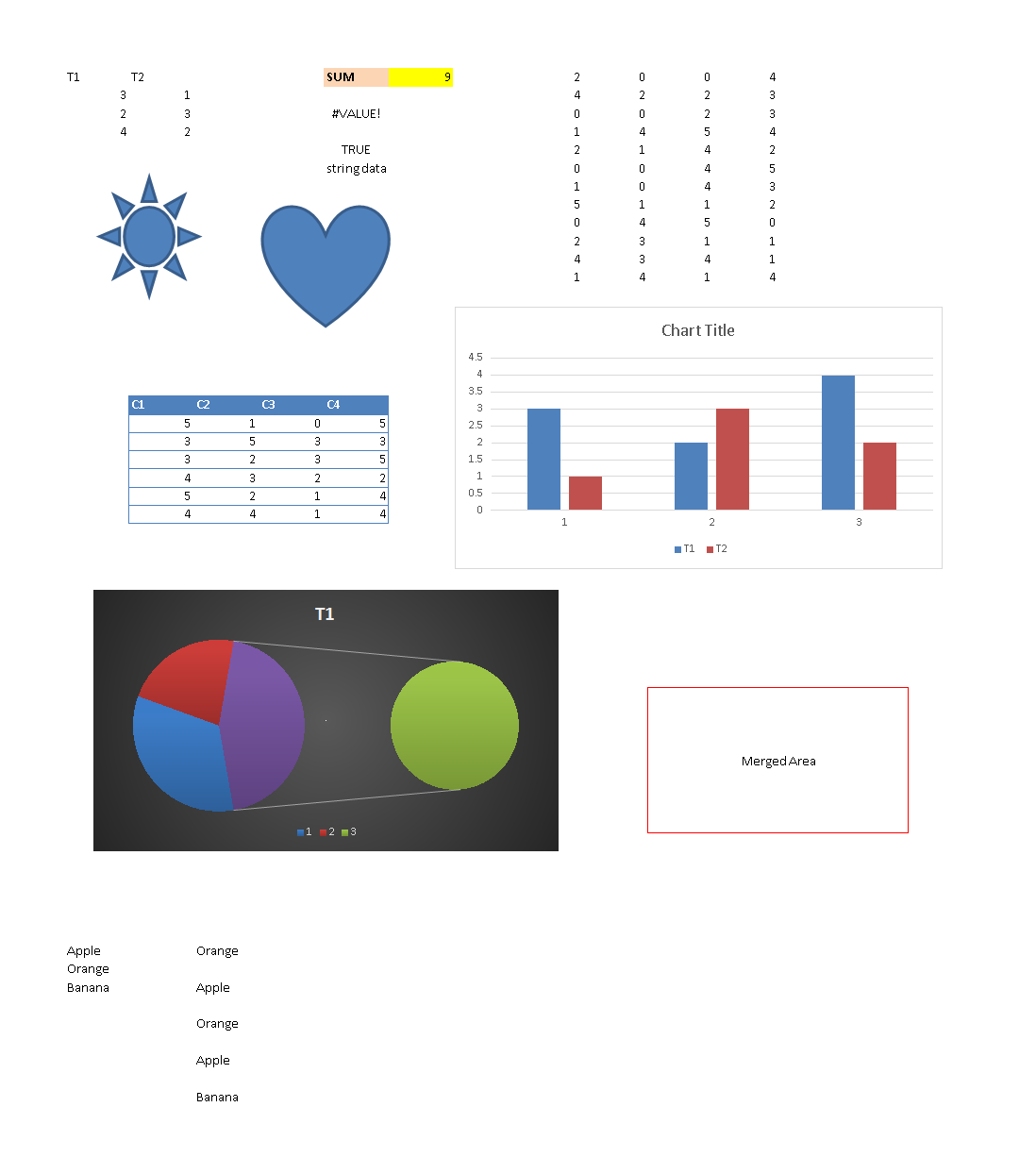

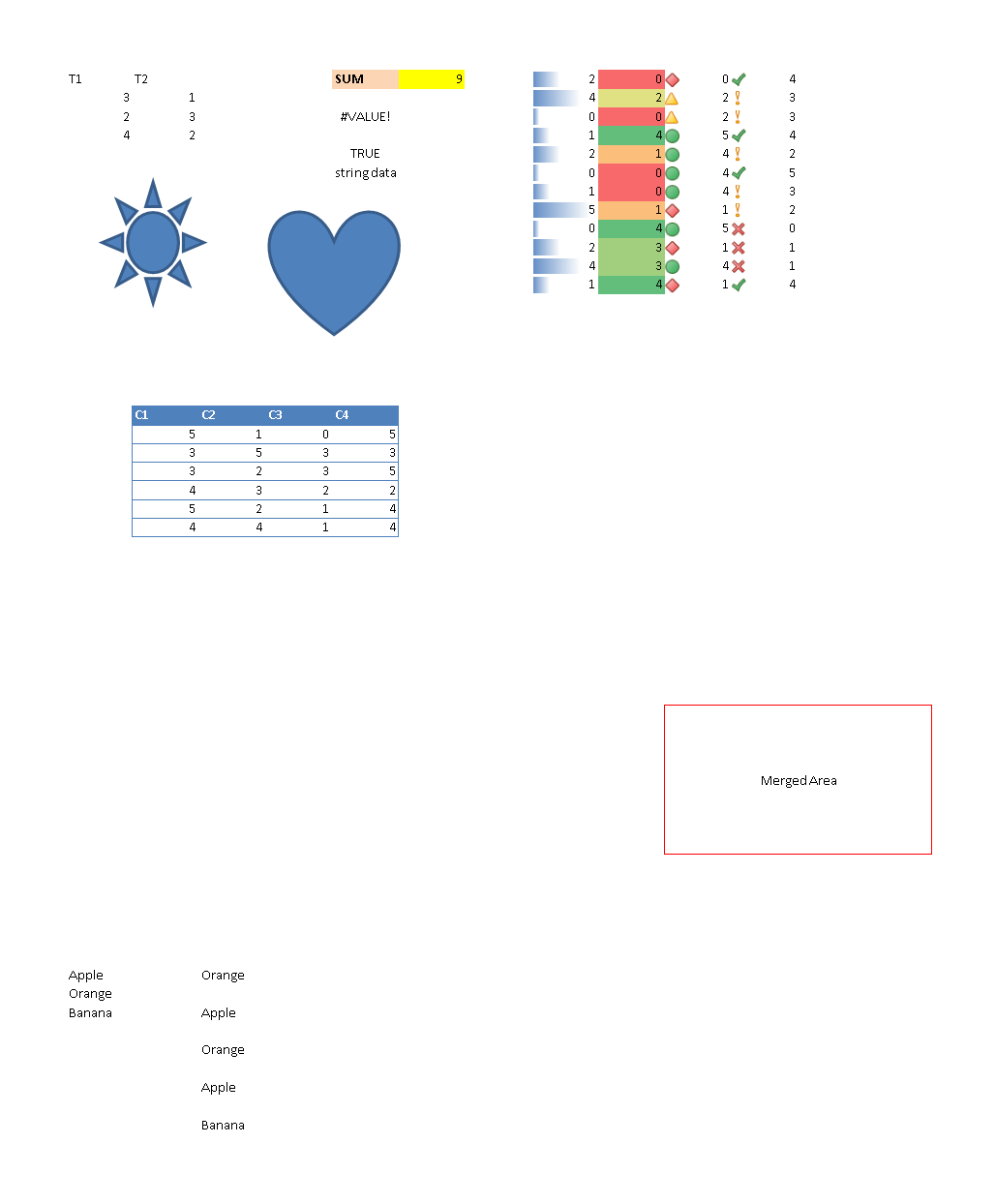

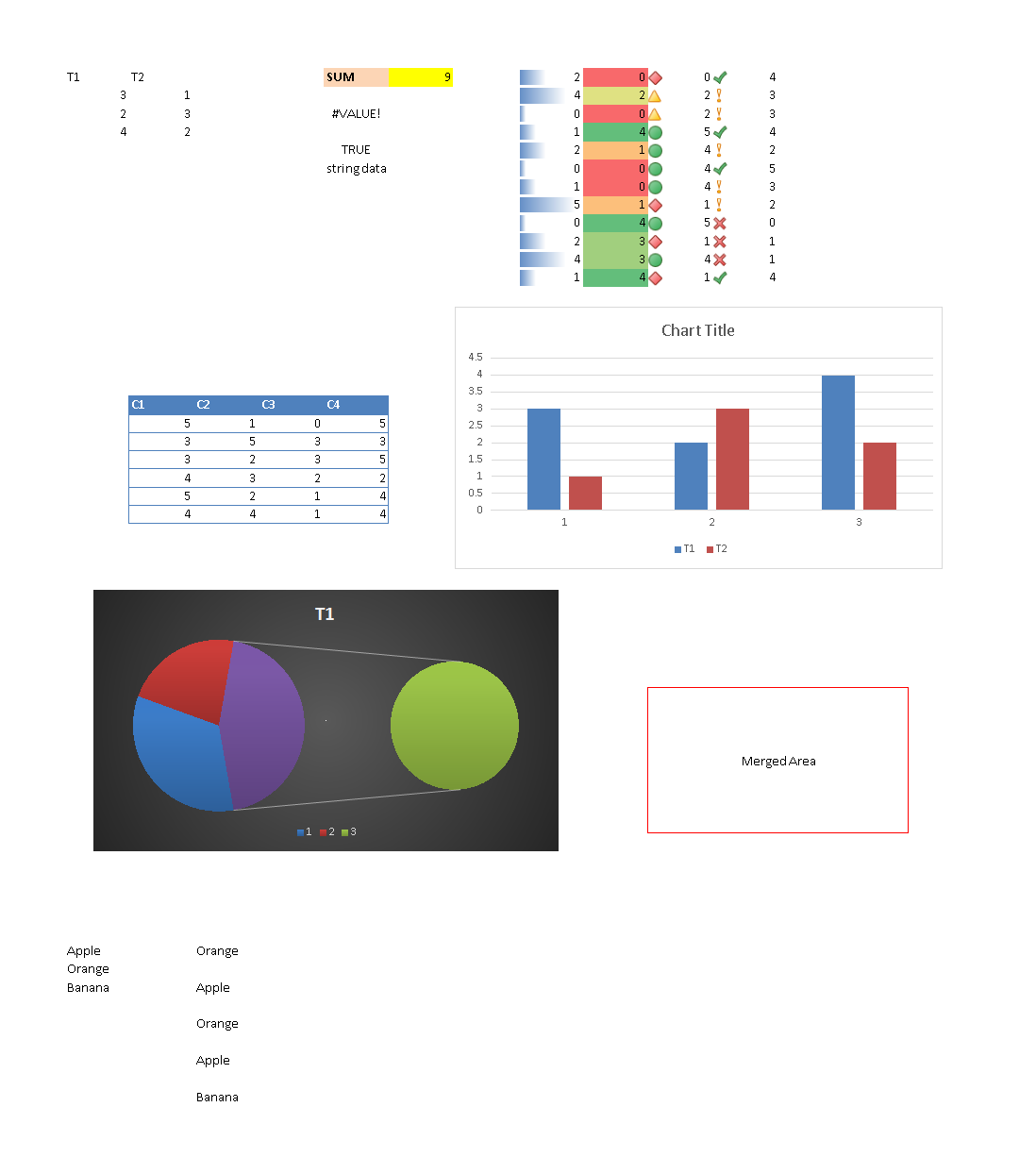

Sobald es die Quell-Excel-Datei mit einem benutzerdefinierten Filter lädt, nimmt es die Bilder aller Arbeitsblätter nacheinander. Hier sind die Ausgabe-Bilder zur Referenz. Wie Sie sehen können, hat das erste Bild keine Diagramme, das zweite Bild hat keine Formen und das dritte Bild hat keine bedingte Formatierung.
<!DOCTYPE html>
<html>
<head>
<title>Custom Load Filter Example</title>
</head>
<body>
<h1>Custom Load Filter Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Converted CustomLoadFilter class
class CustomLoadFilter extends AsposeCells.LoadFilter {
startSheet(sheet) {
if (sheet.name === "NoCharts") {
// Load everything and filter charts
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Chart;
}
if (sheet.name === "NoShapes") {
// Load everything and filter shapes
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Drawing;
}
if (sheet.name === "NoConditionalFormatting") {
// Load everything and filter conditional formatting
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.ConditionalFormatting;
}
}
}
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object using the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Instantiate and (optionally) attach the custom load filter
const customFilter = new CustomLoadFilter();
// If the environment supports assigning a load filter to workbook, set it as a property
workbook.loadFilter = customFilter;
// Inform user that the filter class was created and assigned
document.getElementById('result').innerHTML = '<p style="color: green;">CustomLoadFilter created and assigned to workbook. You can download the (possibly unchanged) workbook below.</p>';
// Save the workbook back to a downloadable file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
});
</script>
</html>
So verwenden Sie die Klasse CustomLoadFilter gemäß der Arbeitsblattnamen.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadList a { display: block; margin: 6px 0; }
#result p { margin: 8px 0; }
</style>
</head>
<body>
<h1>Render Worksheets to PNG with Custom Load Filter</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<div id="result"></div>
<div id="downloadList"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, LoadOptions, ImageOrPrintOptions, SheetRender, ImageType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Define CustomLoadFilter class (placeholder - adapt as needed)
// The original JavaScript code referenced a CustomLoadFilter implementation.
// This minimal implementation can be replaced with actual filtering logic.
class CustomLoadFilter {
constructor() {
}
// If the AsposeCells runtime expects specific methods on the filter,
// implement them here. This is a generic placeholder.
}
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
const downloadList = document.getElementById('downloadList');
downloadList.innerHTML = '';
resultDiv.innerHTML = '';
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Prepare load options and assign custom load filter
const loadOpts = new LoadOptions();
loadOpts.loadFilter = new CustomLoadFilter();
// Instantiate workbook from uploaded file with load options
const workbook = new Workbook(new Uint8Array(arrayBuffer), loadOpts);
// Iterate through worksheets and render each to PNG
const sheetCount = workbook.worksheets.count;
for (let i = 0; i < sheetCount; i++) {
const worksheet = workbook.worksheets.get(i);
// Create image options
const imageOpts = new ImageOrPrintOptions();
imageOpts.onePagePerSheet = true;
imageOpts.imageType = ImageType.Png;
// Render worksheet to image bytes
const render = new SheetRender(worksheet, imageOpts);
const imgBytes = render.toImage(0);
// Create blob and download link for each rendered image
const blob = new Blob([imgBytes], { type: 'image/png' });
const url = URL.createObjectURL(blob);
const link = document.createElement('a');
const sheetNameSafe = worksheet.name ? worksheet.name.replace(/[\/\\:?*"<>|]/g, '_') : `sheet${i+1}`;
link.href = url;
link.download = `outputCustomFilteringPerWorksheet_${sheetNameSafe}.png`;
link.textContent = `Download ${link.download}`;
downloadList.appendChild(link);
}
resultDiv.innerHTML = `<p style="color: green;">Rendered ${sheetCount} worksheet(s). Download links are available below.</p>`;
});
</script>
</html>
