Drei Methoden zum Filtern von Diagrammdaten mit JavaScript via C++
Contents
[
Hide
]
1. Herausfiltern von Reihen, um ein Diagramm zu rendern
Schritte zum Filtern von Reihen aus einem Diagramm in Excel

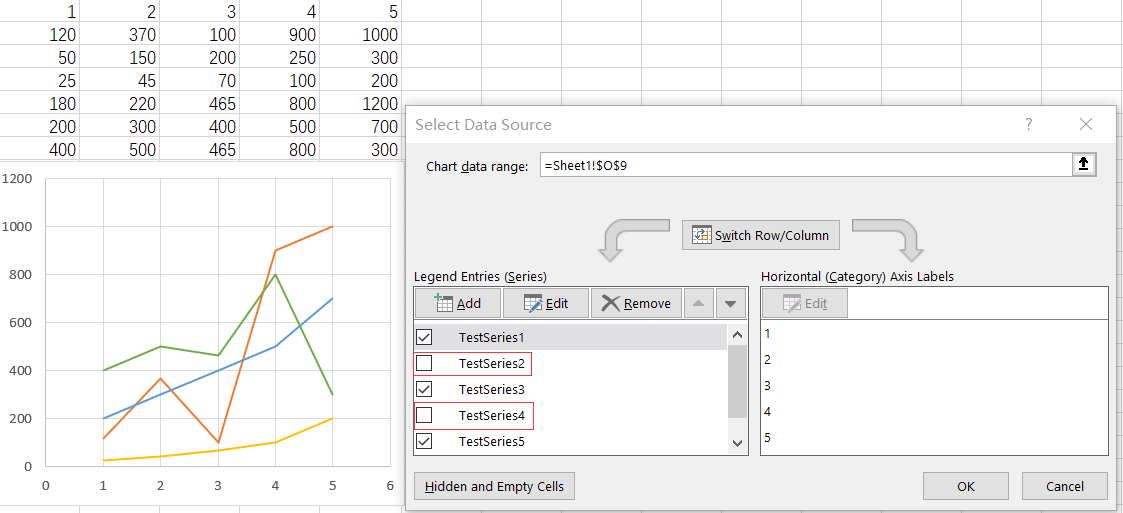

In Excel können wir bestimmte Serien aus einem Diagramm herausfiltern, sodass diese gefilterten Serien im Diagramm nicht angezeigt werden. Das Originaldiagramm ist in Abbildung 1 dargestellt. Wenn wir jedoch Testseries2 und Testseries4 herausfiltern, erscheint das Diagramm wie in Abbildung 2.
In Aspose.Cells for JavaScript via C++ können wir eine ähnliche Operation durchführen. Für eine Beispieldatei wie diese, wenn wir Testseries2 und Testseries4 filtern möchten, können wir den folgenden Code ausführen. Zusätzlich werden wir zwei Listen pflegen: eine (Chart.nSeries) Liste, um alle ausgewählten Serien zu speichern.
Beispielcode
Der folgende Beispielcode lädt die Beispieldatei Excel.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Series Filter Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet and chart
const worksheet = workbook.worksheets.get(0);
const chart = worksheet.charts.get("Chart 1");
// Get filtered series list and visible series list
const nSeriesFiltered = chart.filteredNSeries;
const nSeries = chart.nSeries;
// Initial counts
const initialFilteredCount = nSeriesFiltered.count;
const initialVisibleCount = nSeries.count;
console.log("Filtered Series count: " + initialFilteredCount);
console.log("Visible Series count: " + initialVisibleCount);
// Process from the end to the beginning - mark series as filtered
nSeries.get(1).isFiltered = true;
nSeries.get(0).isFiltered = true;
// Counts after filtering
const afterFilteredCount = nSeriesFiltered.count;
const afterVisibleCount = nSeries.count;
console.log("Filtered Series count: " + afterFilteredCount);
console.log("Visible Series count: " + afterVisibleCount);
// Save the modified workbook and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'seriesFiltered-out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
// Re-open the saved workbook from the in-memory output to validate counts
const reopenedWorkbook = new Workbook(outputData);
const reopenedWorksheet = reopenedWorkbook.worksheets.get(0);
const reopenedChart = reopenedWorksheet.charts.get("Chart 1");
const reopenedFiltered = reopenedChart.filteredNSeries;
const reopenedVisible = reopenedChart.nSeries;
const reopenedFilteredCount = reopenedFiltered.count;
const reopenedVisibleCount = reopenedVisible.count;
console.log("Filtered Series count: " + reopenedFilteredCount);
console.log("Visible Series count: " + reopenedVisibleCount);
// Display results to user
document.getElementById('result').innerHTML =
`<p style="color: green;">Initial - Filtered Series count: ${initialFilteredCount}, Visible Series count: ${initialVisibleCount}</p>` +
`<p style="color: green;">After Marking - Filtered Series count: ${afterFilteredCount}, Visible Series count: ${afterVisibleCount}</p>` +
`<p style="color: green;">After Reopen - Filtered Series count: ${reopenedFilteredCount}, Visible Series count: ${reopenedVisibleCount}</p>`;
});
</script>
</html>
2. Filtern Sie die Daten und lassen Sie das Diagramm sich ändern
Das Filtern Ihrer Daten ist eine großartige Möglichkeit, mit Diagrammfiltern bei großen Datenmengen umzugehen. Wenn Sie die Daten filtern, ändert sich das Diagramm. Ein Problem, das wir lösen müssen, ist sicherzustellen, dass das Diagramm auf dem Bildschirm bleibt. Beim Filtern werden versteckte Zeilen angezeigt, und manchmal befindet sich das Diagramm in diesen versteckten Zeilen.

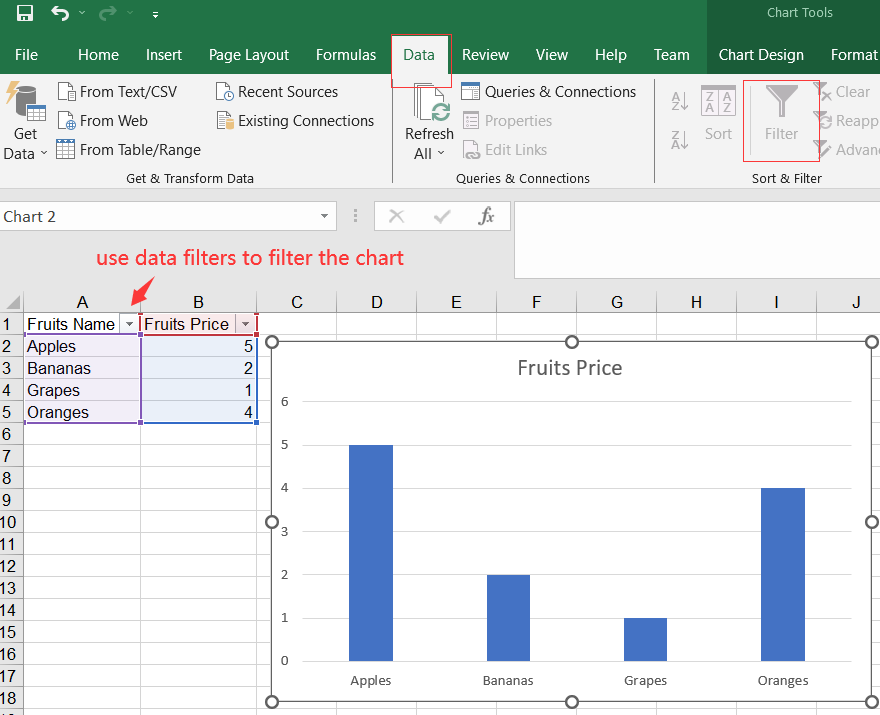

Schritte zum Verwenden von Datenfiltern zum Ändern des Diagramms in Excel
- Klicken Sie innerhalb Ihres Datenbereichs.
- Klicken Sie auf die Registerkarte Daten und aktivieren Sie Filter, indem Sie auf Filter klicken. Ihre Kopfzeile wird Dropdown-Pfeile haben.
- Erstellen Sie ein Diagramm, indem Sie zum Einfügen-Tab gehen und ein Säulendiagramm auswählen.
- Filtern Sie nun Ihre Daten mithilfe der Dropdown-Pfeile in den Daten. Verwenden Sie nicht die Diagrammfilter.
Beispielcode
Der folgende Beispielcode zeigt die gleiche Funktion mit Aspose.Cells.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Autofilter and Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<a id="imageDownloadLink" style="display: none; margin-left: 10px;">Download Chart Image</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const downloadLink = document.getElementById('downloadLink');
const imageDownloadLink = document.getElementById('imageDownloadLink');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
// Ensure Aspose.Cells is initialized
await AsposeCells.onReady();
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the worksheet named "Sheet1"
const sheet = workbook.worksheets.get("Sheet1");
// Add data into detail cells
sheet.cells.get(0, 0).putValue("Fruits Name");
sheet.cells.get(0, 1).putValue("Fruits Price");
sheet.cells.get(1, 0).putValue("Apples");
sheet.cells.get(2, 0).putValue("Bananas");
sheet.cells.get(3, 0).putValue("Grapes");
sheet.cells.get(4, 0).putValue("Oranges");
sheet.cells.get(1, 1).putValue(5);
sheet.cells.get(2, 1).putValue(2);
sheet.cells.get(3, 1).putValue(1);
sheet.cells.get(4, 1).putValue(4);
// Add a chart to the worksheet
const chartIndex = sheet.charts.add(AsposeCells.ChartType.Column, 7, 7, 15, 15);
const chart = sheet.charts.get(chartIndex);
// Set data range (converted from setChartDataRange -> chartDataRange property)
chart.chartDataRange = "A1:B5";
// Set AutoFilter range (converted from setRange -> range property)
sheet.autoFilter.range = "A1:B5";
// Add filters for a filter column.
sheet.autoFilter.addFilter(0, "Bananas");
sheet.autoFilter.addFilter(0, "Oranges");
// Apply the filters
sheet.autoFilter.refresh();
// Export chart image (returns image data)
const imageData = chart.toImage("Autofilter.png");
// Save the modified workbook
const outputData = workbook.save(SaveFormat.Xlsx);
// Prepare Excel download link
const blob = new Blob([outputData]);
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'Autofilter.xlsx';
downloadLink.style.display = 'inline-block';
downloadLink.textContent = 'Download Excel File';
// Prepare image download link if image data exists
if (imageData) {
const imgBlob = new Blob([imageData], { type: 'image/png' });
imageDownloadLink.href = URL.createObjectURL(imgBlob);
imageDownloadLink.download = 'Autofilter.png';
imageDownloadLink.style.display = 'inline-block';
imageDownloadLink.textContent = 'Download Chart Image';
} else {
imageDownloadLink.style.display = 'none';
}
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Use the download links to get the modified files.</p>';
});
</script>
</html>
3. Filtern Sie die Daten mithilfe einer Tabelle und lassen Sie das Diagramm sich ändern.
Die Verwendung einer Tabelle ist ähnlich wie Methode 2, die Verwendung eines Bereichs, aber Sie haben mit Tabellen Vorteile gegenüber Bereichen. Wenn Sie Ihren Bereich in eine Tabelle ändern und Daten hinzufügen, wird das Diagramm automatisch aktualisiert. Mit einem Bereich müssten Sie die Datenquelle ändern.
Als Tabelle formatieren in Excel
Klicken Sie in Ihre Daten und verwenden Sie STRG + T oder gehen Sie zum Register Start, Als Tabelle formatieren
Beispielcode
Der folgende Beispielcode lädt die Beispiel Excel-Datei und zeigt die gleiche Funktion mit Aspose.Cells.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Example Title</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<a id="downloadLinkBefore" style="display: none;">Download Before Image</a>
<a id="downloadLinkAfter" style="display: none;">Download After Image</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const sheet = workbook.worksheets.get(0);
// Access the instance of the newly added chart
const chartIndex = sheet.charts.add(AsposeCells.ChartType.Column, 7, 7, 15, 15);
const chart = sheet.charts.get(chartIndex);
// Set data range (converted from setter to property)
chart.chartDataRange = { range: "A1:B7", isVertical: true };
// Convert the chart to image (before)
const beforeImageData = chart.toImage(SaveFormat.Png);
const beforeBlob = new Blob([beforeImageData]);
const beforeLink = document.getElementById('downloadLinkBefore');
beforeLink.href = URL.createObjectURL(beforeBlob);
beforeLink.download = 'TableFilters.before.png';
beforeLink.style.display = 'block';
beforeLink.textContent = 'Download Chart Before Image';
// Add a new List Object to the worksheet
const listObjectIndex = sheet.listObjects.add("A1", "B7", true);
const listObject = sheet.listObjects.get(listObjectIndex);
// Add default style to the table
listObject.tableStyleType = AsposeCells.TableStyleType.TableStyleMedium10;
// Show Total
listObject.showTotals = false;
// Add filters for a filter column.
listObject.autoFilter.addFilter(0, "James");
// Apply the filters
listObject.autoFilter.refresh();
// After adding new value the chart will change
listObject.putCellValue(7, 0, "Me");
listObject.putCellValue(7, 1, 1000);
// Check the changed images (after)
const afterImageData = chart.toImage(SaveFormat.Png);
const afterBlob = new Blob([afterImageData]);
const afterLink = document.getElementById('downloadLinkAfter');
afterLink.href = URL.createObjectURL(afterBlob);
afterLink.download = 'TableFilters.after.png';
afterLink.style.display = 'block';
afterLink.textContent = 'Download Chart After Image';
// Saving the Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'TableFilter.out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Use the download links to get the result files.</p>';
});
</script>
</html>
