Legentexte der Diagrammlinie mit Aspose.Cells for JavaScript via C++ auf none setzen

Contents
[ ]

Der folgende Beispielcode setzt den Text der zweiten Diagrammlegendeneintragsfüllung auf keine. Laden Sie bitte die Beispieldatei Excel herunter, die in diesem Code verwendet wird, und die Ausgabedatei Excel, die von ihr generiert wird, zur Referenz.

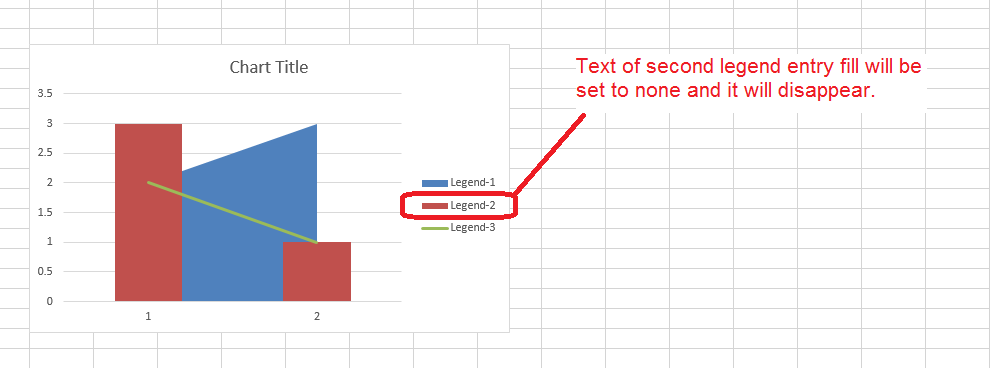

Das folgende Screenshot hebt die Wirkung dieses Codes auf die Beispieldatei Excel hervor.

todo:image_alt_text

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Chart Legend Entry Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first worksheet
            const sheet = workbook.worksheets.get(0);

            // Access the first chart inside the sheet
            const chart = sheet.charts.get(0);

            // Set text of second legend entry fill to none
            const legendEntry = chart.legend.legendEntries.get(1);
            legendEntry.isTextNoFill = true;

            // Save the workbook in xlsx format and provide download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'ChartLegendEntry_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
