Zeigen Sie eine Form im Arbeitsblatt mit Node.js via C++ vor oder nach

Mögliche Verwendungsszenarien

Wenn mehrere Formen am selben Ort vorhanden sind, bestimmt ihre Z-Reihenfolge die Sichtbarkeit. Aspose.Cells bietet die Methode Shape.toFrontOrBack(), mit der die Z-Order-Position der Form geändert wird. Um eine Form nach hinten zu senden, verwenden Sie eine negative Zahl wie -1, -2, -3 usw., und um eine Form nach vorne zu bringen, verwenden Sie eine positive Zahl wie 1, 2, 3 usw.

Form nach vorn oder hinten im Arbeitsblatt senden

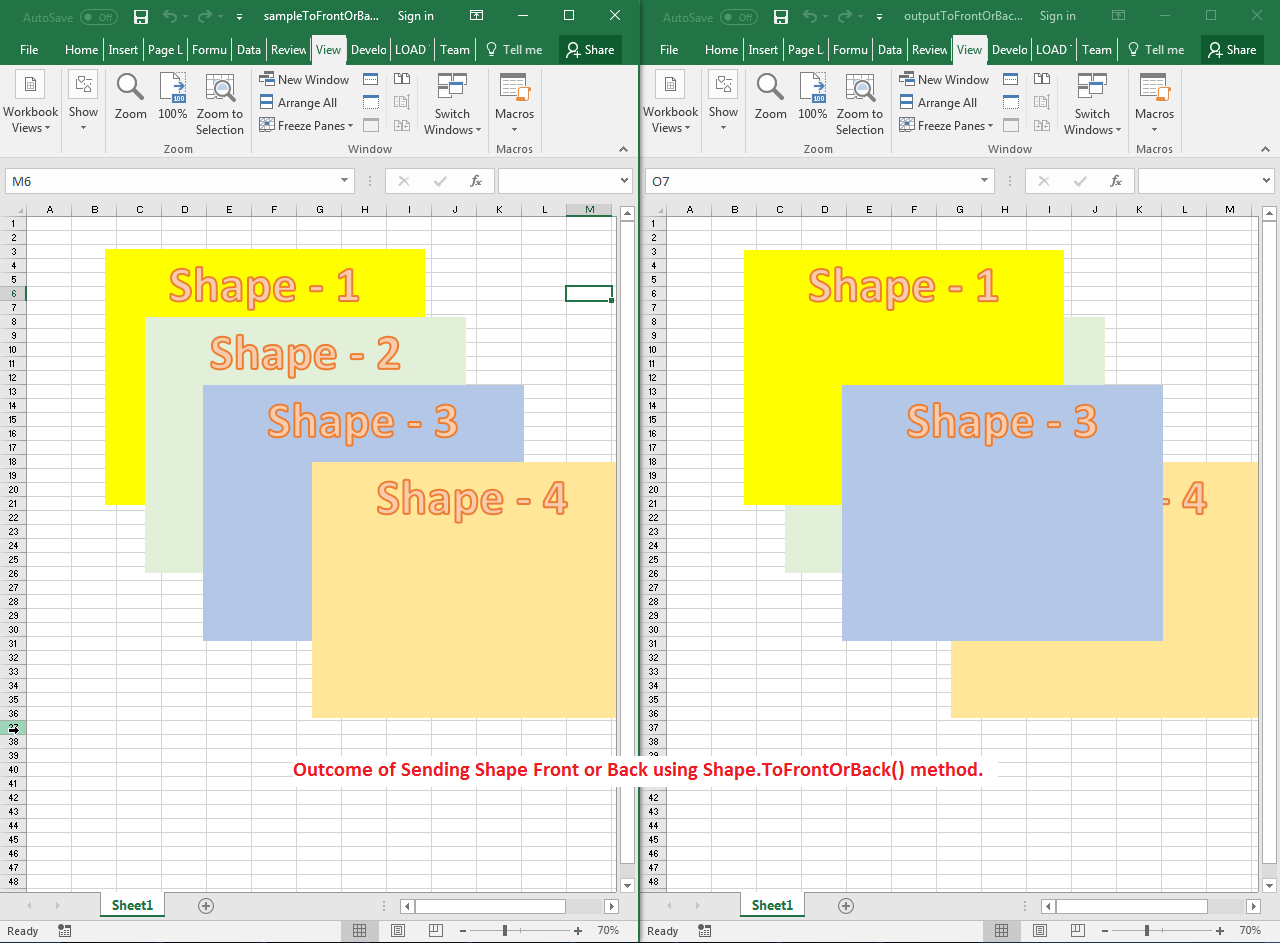

Der folgende Beispielcode zeigt die Verwendung der Methode Shape.toFrontOrBack(). Bitte sehen Sie sich dieBeispiel-Excel-Datei an, die im Code verwendet wird, sowie dieAusgabedatei, die damit erstellt wurde. Der Screenshot zeigt die Wirkung des Codes auf die Beispiel-Excel-Datei nach der Ausführung.

todo:image_alt_text

Beispielcode

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const sourceFilePath = path.join(dataDir, "sampleToFrontOrBack.xlsx");

// Load source Excel file
const workbook = new AsposeCells.Workbook(sourceFilePath);

// Access first worksheet
const worksheet = workbook.getWorksheets().get(0);

// Access first and fourth shape
const shape1 = worksheet.getShapes().get(0);
const shape4 = worksheet.getShapes().get(3);

// Print the Z-Order position of the shape
console.log("Z-Order Shape 1: " + shape1.getZOrderPosition());

// Send this shape to front
shape1.toFrontOrBack(2);

// Print the Z-Order position of the shape
console.log("Z-Order Shape 4: " + shape4.getZOrderPosition());

// Send this shape to back
shape4.toFrontOrBack(-2);

// Save the output Excel file
const outputFilePath = path.join(dataDir, "outputToFrontOrBack.xlsx");
workbook.save(outputFilePath);
