Verwaltung von Achsen von Excel Diagrammen
Contents
[
Hide
]
In Excel-Diagrammen gibt es 3 Arten von Achsen:
- Horizontale(Kategorie) Achse: X-Achse
- Vertikale(Wert) Achse: Y-Achse
- Tiefen(Serien) Achse: Z-Achse
Achsenoptionen
Aspose.Cells für Python via .NET ermöglicht auch die Verwaltung der Diagrammachsen zur Laufzeit. Mit dem Axis Objekt können Sie alle Optionen der Achse ändern, wie in Excel.
|
|
X- und Y-Achsen verwalten
Im Excel-Diagramm sind horizontale und vertikale Achsen die beiden beliebtesten Achsen zum Verwenden.

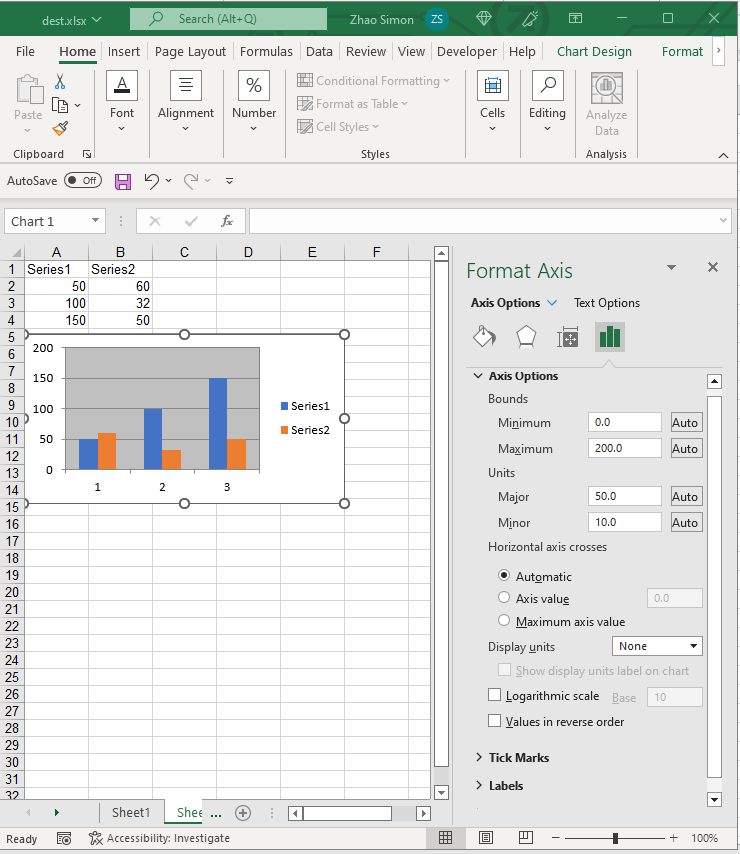

Der folgende Codeauszug demonstriert, wie die Optionen der X- und Y-Achsen festgelegt werden.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| from aspose.cells import Workbook | |
| from aspose.cells.charts import ChartType | |
| # Instantiating a Workbook object | |
| workbook = Workbook() | |
| # Adding a new worksheet to the Workbook object | |
| sheetIndex = workbook.worksheets.add() | |
| # Obtaining the reference of the newly added worksheet by passing its sheet index | |
| worksheet = workbook.worksheets[sheetIndex] | |
| # Adding sample values to cells | |
| worksheet.cells.get("A1").put_value("Series1") | |
| worksheet.cells.get("A2").put_value(50) | |
| worksheet.cells.get("A3").put_value(100) | |
| worksheet.cells.get("A4").put_value(150) | |
| worksheet.cells.get("B1").put_value("Series2") | |
| worksheet.cells.get("B2").put_value(60) | |
| worksheet.cells.get("B3").put_value(32) | |
| worksheet.cells.get("B4").put_value(50) | |
| # Adding a chart to the worksheet | |
| chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
| # Accessing the instance of the newly added chart | |
| chart = worksheet.charts[chartIndex] | |
| # Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
| chart.set_chart_data_range("A1:B4", True) | |
| # hiding X axis | |
| chart.category_axis.is_visible = False | |
| # Setting max value of Y axis. | |
| chart.value_axis.max_value = 200 | |
| # Setting major unit. | |
| chart.value_axis.major_unit = 50.0 | |
| # Save the file | |
| workbook.save("chart_axes.xlsx") |
