Cómo crear un gráfico combinado con C++

Escenarios de uso posibles

Los gráficos combo en Excel te permiten aprovechar esta opción porque puedes combinar fácilmente dos o más tipos de gráficos para hacer que tus datos sean comprensibles. Los gráficos combo son útiles cuando tus datos contienen múltiples tipos de valores, incluidos precio y volumen. Además, los gráficos combo son factibles cuando los números de tus datos varían ampliamente de serie a serie.

todo:image_alt_text

Gráfico combo

Después de ejecutar el código a continuación, verás el gráfico combo como se muestra a continuación.

todo:image_alt_text

Código de muestra

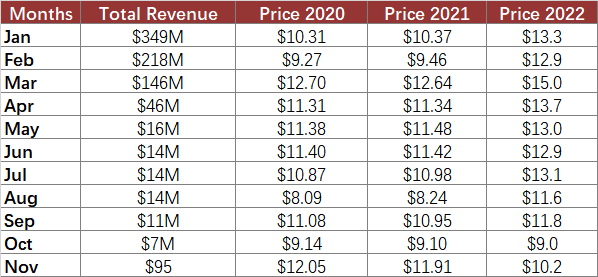

El siguiente código de muestra carga el archivo de Excel de muestra y genera el archivo de Excel de salida.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Create the workbook
    Workbook workbook(u"combo.xlsx");

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add a stock volume (VHLC) chart
    int32_t pieIdx = worksheet.GetCharts().Add(ChartType::StockVolumeHighLowClose, 15, 0, 34, 12);

    // Retrieve the Chart object
    Chart chart = worksheet.GetCharts().Get(pieIdx);

    // Set the legend to be shown
    chart.SetShowLegend(true);

    // Set the chart title
    chart.GetTitle().SetText(u"Combo Chart");

    // Set the Legend position to bottom of the chart area
    chart.GetLegend().SetPosition(LegendPositionType::Bottom);

    // Set data range
    chart.SetChartDataRange(u"A1:E12", true);

    // Set category data
    chart.GetNSeries().GetCategoryData() = u"A2:A12";

    // Set the Series[1], Series[2], and Series[3] to different Marker Styles
    for (int32_t j = 0; j < chart.GetNSeries().GetCount(); j++)
    {
        switch (j)
        {
            case 1:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Circle);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Pink());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 2:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Dash);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Orange());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 3:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Square);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::LightBlue());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
        }
    }

    // Set the chart type for Series[0]
    chart.GetNSeries().Get(0).SetType(ChartType::Line);

    // Set style for the border of the first series
    chart.GetNSeries().Get(0).GetBorder().SetStyle(LineType::Solid);

    // Set color for the first series
    chart.GetNSeries().Get(0).GetBorder().SetColor(Color::DarkBlue());

    // Fill the PlotArea area with nothing
    chart.GetPlotArea().GetArea().SetFormatting(FormattingType::None);

    // Save the Excel file
    workbook.Save(u"out.xlsx");

    Aspose::Cells::Cleanup();
}
