Cómo crear un gráfico TreeMap con C++
Contents
[
Hide
]
Escenarios de uso posibles
Un gráfico Treemap proporciona una vista jerárquica de sus datos y facilita detectar patrones, como cuáles son los artículos más vendidos de una tienda. Las ramas del árbol están representadas por rectángulos y cada subrama se muestra como un rectángulo más pequeño. El gráfico Treemap muestra categorías por color y proximidad y puede mostrar fácilmente muchos datos que serían difíciles con otros tipos de gráficos.
Gráfico TreeMap

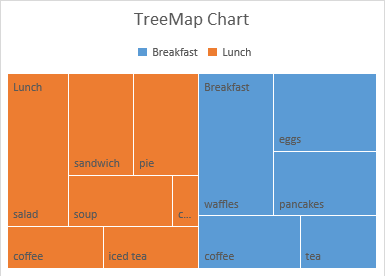

Después de ejecutar el código a continuación, verá el gráfico TreeMap como se muestra a continuación.
Código de muestra

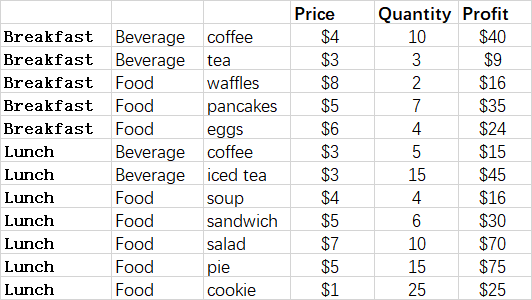

El siguiente código de muestra carga el archivo de Excel de muestra y genera el archivo de Excel de salida.
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Create an instance of Workbook
Workbook workbook(u"treemap.xlsx");
// Access the first worksheet
Worksheet worksheet = workbook.GetWorksheets().Get(0);
// Add a Treemap chart
int32_t pieIdx = worksheet.GetCharts().Add(ChartType::Treemap, 5, 6, 20, 12);
// Retrieve the Chart object
Chart chart = worksheet.GetCharts().Get(pieIdx);
// Set the legend can be showed
chart.SetShowLegend(true);
// Set the chart title name
chart.GetTitle().SetText(u"TreeMap Chart");
// Add series data range (D2:F13, actually)
chart.GetNSeries().Add(u"D2:F13", true);
// Set category data (A2:C13 is incorrect)
chart.GetNSeries().SetCategoryData(u"A2:C13");
// Show the DataLabels with category names
chart.GetNSeries().Get(0).GetDataLabels().SetShowCategoryName(true);
// Fill the PlotArea area with nothing
chart.GetPlotArea().GetArea().GetFillFormat().SetFillType(FillType::None);
// Save the Excel file
workbook.Save(u"out.xlsx");
Aspose::Cells::Cleanup();
}
