Insertar rebanador
Contents
[
Hide
]
Escenarios de uso posibles
Un segmentador se usa para filtrar datos rápidamente. Puede filtrar datos tanto en una tabla como en una tabla dinámica. Microsoft Excel te permite crear un segmentador seleccionando una tabla o tabla dinámica y luego haciendo clic en Insertar > Segmentador. Aspose.Cells for JavaScript vía C++ también permite crear un segmentador usando el método Worksheet.slicers.add().
Crear Cortador para una Tabla Dinámica

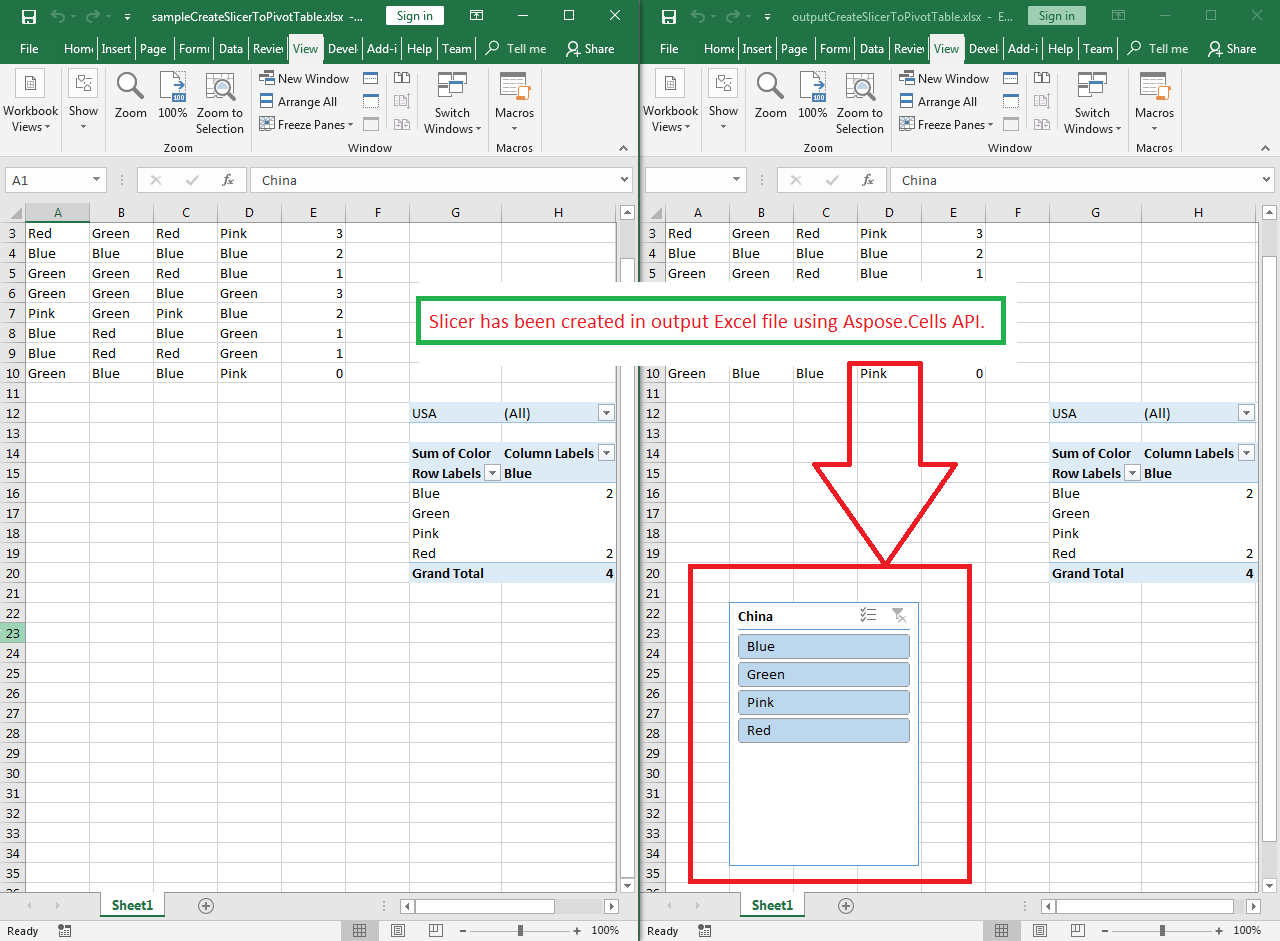

Por favor, vea el siguiente ejemplo de código. Carga el archivo de Excel de muestra que contiene la tabla dinámica. Luego crea el segmentador en función del primer campo base de la tabla dinámica. Finalmente, guarda el libro en formato XLSX de salida y XLSB de salida. La siguiente captura de pantalla muestra el segmentador creado por Aspose.Cells for JavaScript vía C++ en el archivo de Excel de salida.
Código de muestra
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Create Slicer to PivotTable</title>
</head>
<body>
<h1>Create Slicer to PivotTable Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.xlsb,.csv" />
<button id="runExample">Run Example</button>
<br/><br/>
<a id="downloadXlsxLink" style="display: none;">Download XLSX Result</a>
<br/>
<a id="downloadXlsbLink" style="display: none;">Download XLSB Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file (e.g., sampleCreateSlicerToPivotTable.xlsx).</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const wb = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const ws = wb.worksheets.get(0);
// Access first pivot table inside the worksheet.
const pt = ws.pivotTables.get(0);
// Add slicer relating to pivot table with first base field at cell B22.
const idx = ws.slicers.add(pt, "B22", pt.baseFields.get(0));
// Access the newly added slicer from slicer collection.
const slicer = ws.slicers.get(idx);
// Save the workbook in output XLSX format.
const outputDataXlsx = wb.save(SaveFormat.Xlsx);
const blobXlsx = new Blob([outputDataXlsx]);
const downloadXlsxLink = document.getElementById('downloadXlsxLink');
downloadXlsxLink.href = URL.createObjectURL(blobXlsx);
downloadXlsxLink.download = 'outputCreateSlicerToPivotTable.xlsx';
downloadXlsxLink.style.display = 'inline';
downloadXlsxLink.textContent = 'Download outputCreateSlicerToPivotTable.xlsx';
// Save the workbook in output XLSB format.
const outputDataXlsb = wb.save(SaveFormat.Xlsb);
const blobXlsb = new Blob([outputDataXlsb]);
const downloadXlsbLink = document.getElementById('downloadXlsbLink');
downloadXlsbLink.href = URL.createObjectURL(blobXlsb);
downloadXlsbLink.download = 'outputCreateSlicerToPivotTable.xlsb';
downloadXlsbLink.style.display = 'inline';
downloadXlsbLink.textContent = 'Download outputCreateSlicerToPivotTable.xlsb';
document.getElementById('result').innerHTML = '<p style="color: green;">Slicer created and files are ready for download.</p>';
});
</script>
</html>
Crear Cortador para Tabla de Excel
Por favor, consulte el siguiente código de ejemplo. Carga el archivo de Excel de muestra que contiene una tabla. Luego crea el rebanador basado en la primera columna. Finalmente, guarda el libro de trabajo en formato XLSX de salida.
Código de muestra
<!DOCTYPE html>
<html>
<head>
<title>Create Slicer to Excel Table Example</title>
</head>
<body>
<h1>Create Slicer to Excel Table Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
let asposeReady = false;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
asposeReady = true;
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
if (!asposeReady) {
document.getElementById('result').innerHTML = '<p style="color: red;">Aspose.Cells is not initialized yet. Please wait and try again.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const worksheet = workbook.worksheets.get(0);
// Access first table inside the worksheet.
const table = worksheet.listObjects.get(0);
// Add slicer
const idx = worksheet.slicers.add(table, 0, "H5");
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputCreateSlicerToExcelTable.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Slicer added successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
