Dibuje una línea de tiempo mientras renderiza Excel a PDF
Si tienes un archivo Excel con una línea de tiempo aplicada y deseas exportar el Excel a PDF con la configuración de línea de tiempo, Script Aspose.Cells for Java a través de C++ ahora admite esto por defecto. Simplemente exporta el archivo Excel con línea de tiempo a PDF y el PDF generado mostrará la línea de tiempo aplicada.

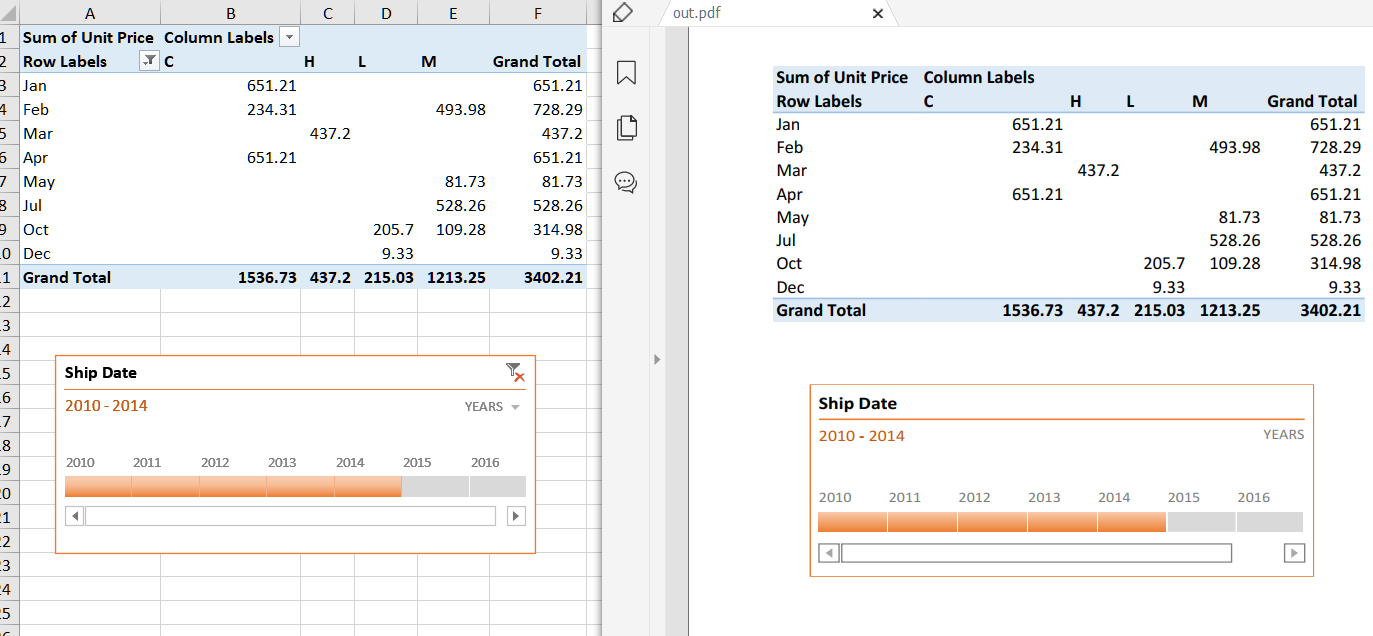

El siguiente código de muestra carga el archivo Excel de muestra que contiene una línea de tiempo existente. Luego guarda el libro de trabajo como archivo PDF de salida. La siguiente captura de pantalla compara el archivo Excel fuente y el archivo PDF generado.
Código de muestra
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Saving the workbook to PDF format (browser)
const outputData = workbook.save(SaveFormat.Pdf);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>
