Dividir pantalla de la hoja de Excel con JavaScript vía C++
Contents
[
Hide
]
Introducción
En este artículo, aprenderemos cómo mostrar en paneles separados ciertas filas y/o columnas dividiendo la hoja de cálculo en dos o cuatro partes. Cuando se trabaja con conjuntos de datos grandes, necesitamos ver algunas áreas de la misma hoja de cálculo a la vez para comparar diferentes subconjuntos de datos. La función de pantalla dividida puede satisfacer sus necesidades.
Cómo dividir la pantalla en Excel
Para dividir una hoja de cálculo en dos o cuatro partes, haz lo siguiente:
- Selecciona la fila/columna/celda antes de la cual deseas colocar la división.

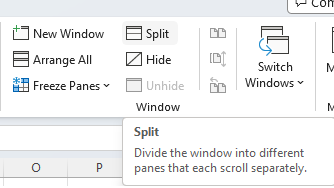

- En la pestaña de Vista, en el grupo de Ventanas, haz clic en el botón Dividir.
Dividir la hoja de cálculo verticalmente en columnas
Para separar dos áreas de la hoja de cálculo verticalmente, selecciona la columna a la derecha de la columna donde deseas que aparezca la división y haz clic en el botón Dividir en Excel.
Es fácil dividir la hoja verticalmente en columnas programáticamente con Aspose.Cells for JavaScript vía C++, solo necesitamos seleccionar una celda en la fila superior como celda activa, y luego dividir con Worksheet.split() método.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Set Active Cell and Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
const readyPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await readyPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const sheet = workbook.worksheets.get(0);
// Sets C1 cell in the top row as the active cell.
sheet.activeCell = "C1";
// Split worksheet vertically on columns
sheet.split();
// Save the modified workbook and prepare download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet updated successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Dividir la hoja de cálculo horizontalmente en filas
Para separar tu ventana de Excel horizontalmente, selecciona la fila debajo de la fila donde deseas que ocurra la división en Excel.
Es fácil dividir la hoja horizontalmente en filas programáticamente con Aspose.Cells for JavaScript vía C++, solo necesitamos seleccionar una celda en la columna izquierda como celda activa, y luego dividir con Worksheet.split() método.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet in the Excel file
const sheet = workbook.worksheets.get(0);
// Sets A6 cell in the left column as the active cell.
sheet.activeCell = "A6";
// Split worksheet horizontally on rows
sheet.split();
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'dest.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Dividir la hoja de cálculo en cuatro partes
Para ver cuatro secciones diferentes de la misma hoja de cálculo simultáneamente, divide tu pantalla tanto vertical como horizontalmente en Excel.
Es fácil dividir la hoja verticalmente en columnas programáticamente con Aspose.Cells for JavaScript vía C++, solo necesitamos seleccionar una celda que no esté en la primera fila ni columna como celda activa, y luego dividir con Worksheet.split() método.
<!DOCTYPE html>
<html>
<head>
<title>Set Active Cell and Split Worksheet Example</title>
</head>
<body>
<h1>Set Active Cell and Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const sheet = workbook.worksheets.get(0);
// Sets E6 cell as the active cell.
sheet.activeCell = "E6";
// Split worksheet into four parts
sheet.split();
// Save the modified workbook and provide a download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet updated successfully. Click the download link to get the modified file.</p>';
});
</script>
</html>
Cómo quitar la división
Para eliminar la división de la hoja de cálculo, simplemente haz clic en el botón Dividir nuevamente.
Aspose.Cells for JavaScript vía C++ proporciona un método Worksheet.removeSplit() para eliminar la configuración de división.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Split Worksheet Example</title>
</head>
<body>
<h1>Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const sheet = workbook.worksheets.get(0);
// Remove split and then split worksheet into four parts
sheet.removeSplit();
sheet.split();
// Save the modified workbook and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet split operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
