Renderizar líneas de cuadrícula sólidas mientras se convierte Excel a PDF con JavaScript vía C++
Contents
[
Hide
]
Para compatibilidad con versiones anteriores, Aspose.Cells renderiza las líneas de cuadrícula como líneas punteadas por defecto al convertir Excel a PDF. Sin embargo, Excel moderno renderiza las líneas de cuadrícula como líneas sólidas hoy.
Con la opción PdfSaveOptions.gridlineTypes, Aspose.Cells for JavaScript vía C++ también puede renderizar líneas de cuadrícula como líneas sólidas.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example - Generate PDF with Gridlines</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Loads the workbook which contains hidden external links (as in original JavaScript example)
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Create an empty Workbook
const wb = new Workbook();
// Prepare data
const worksheet = wb.worksheets.get(0);
const cell = worksheet.cells.get("D9");
cell.value = "gridline";
// Enable to print gridline
worksheet.pageSetup.printGridlines = true;

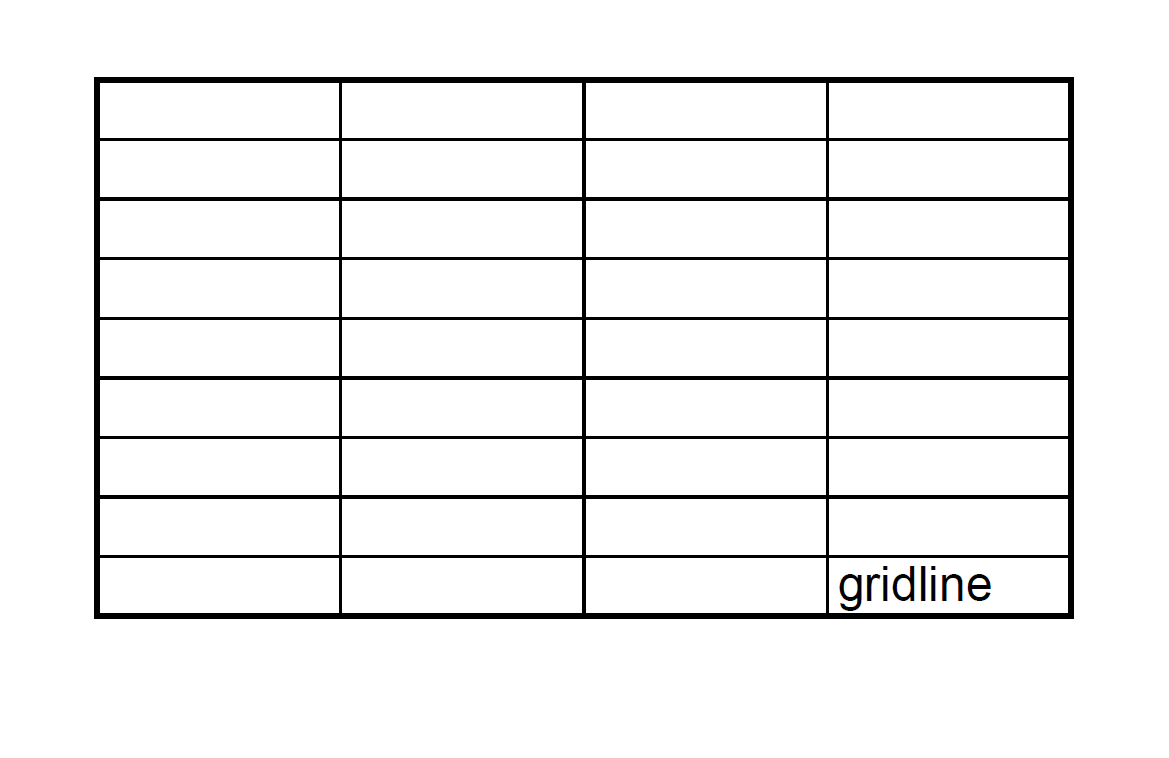

// Set to render gridline as solid line
const pdfSaveOptions = new PdfSaveOptions();
pdfSaveOptions.gridlineType = AsposeCells.GridlineType.Hair;
// Save the pdf file with PdfSaveOptions
const outputData = wb.save(SaveFormat.Pdf, pdfSaveOptions);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'test_Cs.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
});
</script>
</html>
