Crear gráfico de acciones de apertura máximo mínimo cierre (OHLC) con Node.js vía C++
Escenarios de uso posibles

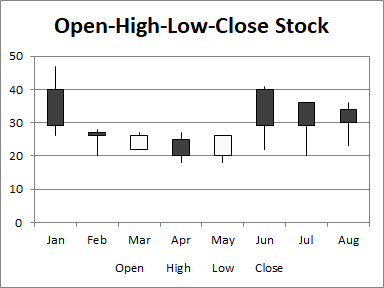

El gráfico de cotizaciones apertura-alta-baja-cierre (OHLC) utiliza cinco columnas de datos, en orden: categoría, apertura, alta, baja y cierre. El rango de precios en cada categoría nuevamente se indica con una línea vertical, mientras que el rango entre la apertura y el cierre se muestra con una barra flotante más ancha; si el precio aumenta en la categoría (el cierre es mayor que la apertura), la barra se llena de un color, mientras que si el precio disminuye, la barra se llena de otro. Este tipo de gráfico a menudo se llama gráfico de velas.
Mejoras de visibilidad en el gráfico
A menudo usamos colores en lugar de blanco y negro para indicar precios en aumento y en disminución. En el primer conjunto de velas abajo, el rojo muestra precios en aumento y el verde en disminución.
Código de muestra
El siguiente código de muestra carga el archivo de Excel de ejemplo y genera el archivo de Excel de salida.
const AsposeCells = require("aspose.cells.node");
const path = require("path");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().getCategoryData("A2:A9");
// Set the DownBars and UpBars with different color
chart.getNSeries().get(0).getDownBars().getArea().setForegroundColor(AsposeCells.Color.Green);
chart.getNSeries().get(0).getUpBars().getArea().setForegroundColor(AsposeCells.Color.Red);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
