Crear gráfico de acciones de Volumen Alto Bajo Cierre (VHLC) con Node.js mediante C++

Escenarios de uso posibles

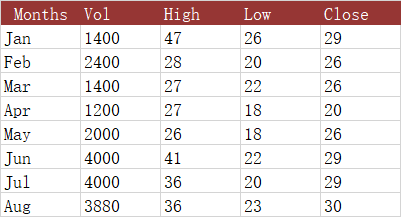

El tercer gráfico que analizaremos es el gráfico de volumen alto, bajo y cierre. Nuevamente, es importante repetir que los datos deben estar en el orden correcto. Si necesitas reorganizar tu tabla de datos, debes hacerlo antes de configurar tu gráfico. Este gráfico incluye una columna para volumen justo después de la primera columna (categoría), y los gráficos incluyen un gráfico de columnas en el eje primario que muestra este volumen, mientras que los precios se trasladan al eje secundario.

todo:image_alt_text

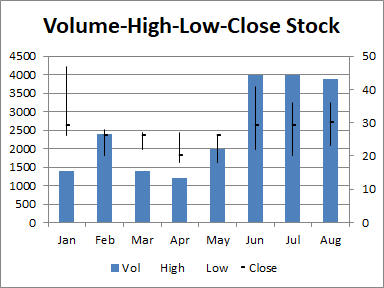

Gráfico de bolsa de valores Volumen-Alto-Bajo-Cierre (VHLC)

todo:image_alt_text

Código de muestra

El siguiente código de muestra carga el archivo Excel de muestra y genera el archivo Excel de salida.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);

// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series(Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
