Crear gráfico de acciones de Volumen Apertura Alto Bajo Cierre (VOHLC) con Node.js mediante C++

Escenarios de uso posibles

El cuarto gráfico de acciones que veremos es el gráfico de volumen apertura-alto-bajo-cierre. Es importante repetir que los datos deben estar en el orden correcto. Si necesita reorganizar su tabla de datos, háganlo antes de configurar su gráfico. Este gráfico incluye una columna para volumen justo después de la primera columna (categoría), y los gráficos incluyen un gráfico de columnas en el eje primario que muestra este volumen, mientras que los precios se mueven al eje secundario.

todo:image_alt_text

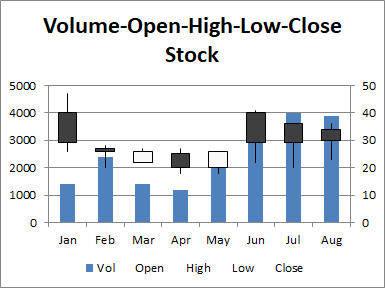

Gráfico de valores-apertura-altos-bajos-cierre (VOHLC) de acciones

todo:image_alt_text

Código de muestra

El siguiente código de muestra carga el archivo de Excel de muestra y genera el archivo de Excel de salida.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-Open-High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:F9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series (Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
