Extraire les objets OLE du classeur avec JavaScript via C++
Contents
[
Hide
]
Parfois, vous devez extraire les objets OLE d’un classeur. Aspose.Cells supporte l’extraction et la sauvegarde de ces objets OLE.
Cet article montre comment créer une application en JavaScript via C++ et extraire différents objets OLE d’un classeur avec quelques lignes de code simples.
Extraire les objets OLE d’un classeur
Création d’un classeur modèle
- Créez un classeur dans Microsoft Excel.
- Ajoutez un document Microsoft Word, un classeur Excel et un document PDF en tant qu’objets OLE sur la première feuille.

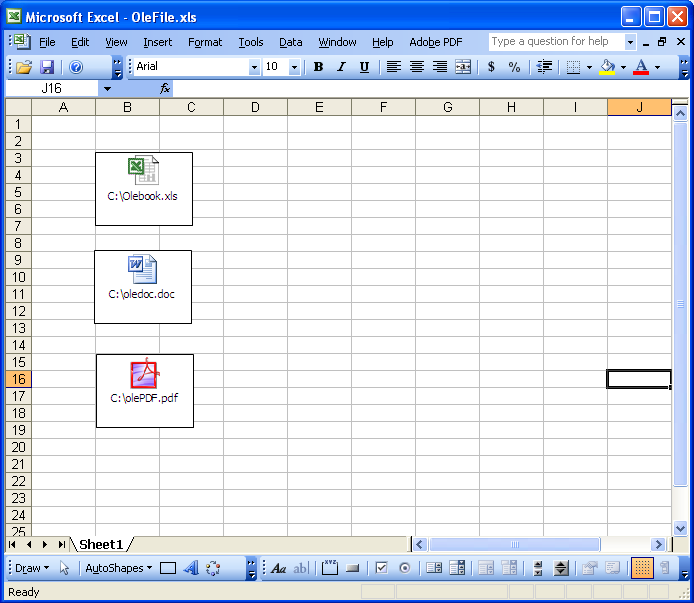

| Document de modèle avec des objets OLE (OleFile.xls) |
|---|
 |
Ensuite, extrayez les objets OLE et sauvegardez-les sur le disque dur avec leurs types de fichiers respectifs.
Téléchargez et installez Aspose.Cells
- Télécharger Aspose.Cells for JavaScript via C++.
- Installez-le sur votre ordinateur de développement.
Tous les composants Aspose, une fois installés, fonctionnent en mode d’évaluation. Le mode d’évaluation n’a pas de limite de temps et n’injecte que des filigranes dans les documents produits.
Créer un projet
Démarrez un environnement JavaScript et créez un nouveau projet. Cet exemple montrera une application basée sur le navigateur, mais vous pouvez également utiliser tout environnement compatible JavaScript.
- Ajouter des dépendances
- Incluez le script Aspose.Cells for JavaScript via C++ dans votre page HTML et créez une interface utilisateur simple pour sélectionner un fichier Excel et extraire les objets OLE :
<!DOCTYPE html>
<html>
<head>
<title>Extract OLE Objects</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadLink { display: none; margin-top: 10px; }
.ole-link { display: block; margin: 6px 0; }
.info { margin-top: 12px; }
</style>
</head>
<body>
<h1>Extract OLE Objects</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.xlsm,.xlsb" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const primaryDownloadLink = document.getElementById('downloadLink');
resultDiv.innerHTML = '';
primaryDownloadLink.style.display = 'none';
primaryDownloadLink.href = '';
primaryDownloadLink.textContent = '';
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const extractedLinks = [];
let totalExtracted = 0;
// Iterate through all worksheets
const sheetsCount = workbook.worksheets.count;
for (let s = 0; s < sheetsCount; s++) {
const worksheet = workbook.worksheets.get(s);
// Access OLE objects collection on the worksheet
const oleObjects = worksheet.oleObjects;
if (!oleObjects) continue;
const oleCount = oleObjects.count;
for (let o = 0; o < oleCount; o++) {
const ole = oleObjects.get(o);
// Attempt to get a filename from ole properties
// Applying universal getter->property conversion:
// getSourceFullName() -> sourceFullName, getName() -> name, getObjectData() -> objectData
let fileName = ole.sourceFullName || ole.name || `ole_object_sheet${s}_idx${o}.bin`;
// Ensure filename is just the basename
try {
// simple basename extraction
const parts = fileName.split(/[/\\]/);
fileName = parts[parts.length - 1] || fileName;
} catch (e) {
// if something unexpected, fallback
fileName = `ole_object_sheet${s}_idx${o}.bin`;
}
// Get the raw object data as bytes
const objectData = ole.objectData;
// Some runtimes may return a typed array, ArrayBuffer or plain JS array.
let blobData;
if (objectData instanceof ArrayBuffer) {
blobData = new Blob([new Uint8Array(objectData)]);
} else if (ArrayBuffer.isView(objectData)) {
blobData = new Blob([objectData]);
} else if (objectData && objectData.buffer && ArrayBuffer.isView(objectData.buffer)) {
blobData = new Blob([objectData]);
} else if (objectData && objectData.byteLength !== undefined) {
// fallback for objects exposing byteLength
blobData = new Blob([objectData]);
} else {
// If objectData is a normal JS array of bytes
blobData = new Blob([new Uint8Array(objectData)]);
}
const url = URL.createObjectURL(blobData);
// Create a download link element for this OLE object
const a = document.createElement('a');
a.href = url;
a.download = fileName;
a.textContent = `Download extracted OLE object: ${fileName}`;
a.className = 'ole-link';
resultDiv.appendChild(a);
extractedLinks.push({ name: fileName, url });
totalExtracted++;
}
}
if (totalExtracted === 0) {
resultDiv.innerHTML = '<p class="info">No OLE objects were found in the uploaded workbook.</p>';
} else {
// Make the first extracted file available via the primary downloadLink element as well
if (extractedLinks.length) {
primaryDownloadLink.href = extractedLinks[0].url;
primaryDownloadLink.download = extractedLinks[0].name;
primaryDownloadLink.style.display = 'inline-block';
primaryDownloadLink.textContent = `Download First Extracted OLE Object: ${extractedLinks[0].name}`;
}
const summary = document.createElement('p');
summary.className = 'info';
summary.innerHTML = `<strong>Extracted ${totalExtracted} OLE object(s).</strong> Use the links above to download them.`;
resultDiv.insertBefore(summary, resultDiv.firstChild);
}
});
</script>
</html>
```html
<!DOCTYPE html>
<html>
<head>
<title>Extract OLE Objects from Workbook</title>
</head>
<body>
<h1>Extract OLE Objects from Workbook</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx" />
<button id="extractBtn">Extract OLE Objects</button>
<div id="result"></div>
<div id="downloads"></div>
<script src="aspose.cells.js"></script>
<script type="text/javascript">
const { Workbook, FileFormatType, SaveFormat } = AsposeCells;
AsposeCells.onReady().then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('extractBtn').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const result = document.getElementById('result');
const downloads = document.getElementById('downloads');
downloads.innerHTML = '';
if (!fileInput.files.length) {
result.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the OleObject collection in the first worksheet.
const worksheet = workbook.worksheets.get(0);
const oles = worksheet.oleObjects;
const count = oles.count;
if (count === 0) {
result.innerHTML = '<p>No OLE objects found in the workbook.</p>';
return;
}
result.innerHTML = `<p>Found ${count} OLE object(s). Preparing downloads...</p>`;
for (let i = 0; i < count; i++) {
const ole = oles.get(i);
// Specify each file format based on the ole object format type.
let ext = 'bin';
switch (ole.fileFormatType) {
case FileFormatType.Doc:
ext = 'doc';
break;
case FileFormatType.Excel97To2003:
ext = 'xls';
break;
case FileFormatType.Xlsx:
ext = 'xlsx';
break;
case FileFormatType.Ppt:
ext = 'ppt';
break;
case FileFormatType.Pdf:
ext = 'pdf';
break;
case FileFormatType.Unknown:
ext = 'jpg';
break;
default:
ext = 'bin';
break;
}
const fileName = `outOle${i}.${ext}`;
// Save the ole object as a new excel file if the object type is xlsx.
if (ole.fileFormatType === FileFormatType.Xlsx) {
const ms = ole.objectData;
if (ms != null) {
const oleBook = new Workbook(ms);
oleBook.settings.isHidden = false;
const outData = oleBook.save(SaveFormat.Xlsx);
const blob = new Blob([outData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const a = document.createElement('a');
a.href = URL.createObjectURL(blob);
a.download = fileName;
a.textContent = `Download ${fileName}`;
downloads.appendChild(a);
downloads.appendChild(document.createElement('br'));
}
} else {
const data = ole.objectData;
if (data != null) {
const blob = new Blob([data]);
const a = document.createElement('a');
a.href = URL.createObjectURL(blob);
a.download = fileName;
a.textContent = `Download ${fileName}`;
downloads.appendChild(a);
downloads.appendChild(document.createElement('br'));
}
}
}
result.innerHTML += '<p style="color: green;">Extraction completed! Use the links above to download the extracted files.</p>';
});
</script>
</body>
</html>
