Rendu de lignes de grille solides lors de la conversion d Excel en PDF avec JavaScript via C++

Contents
[ ]

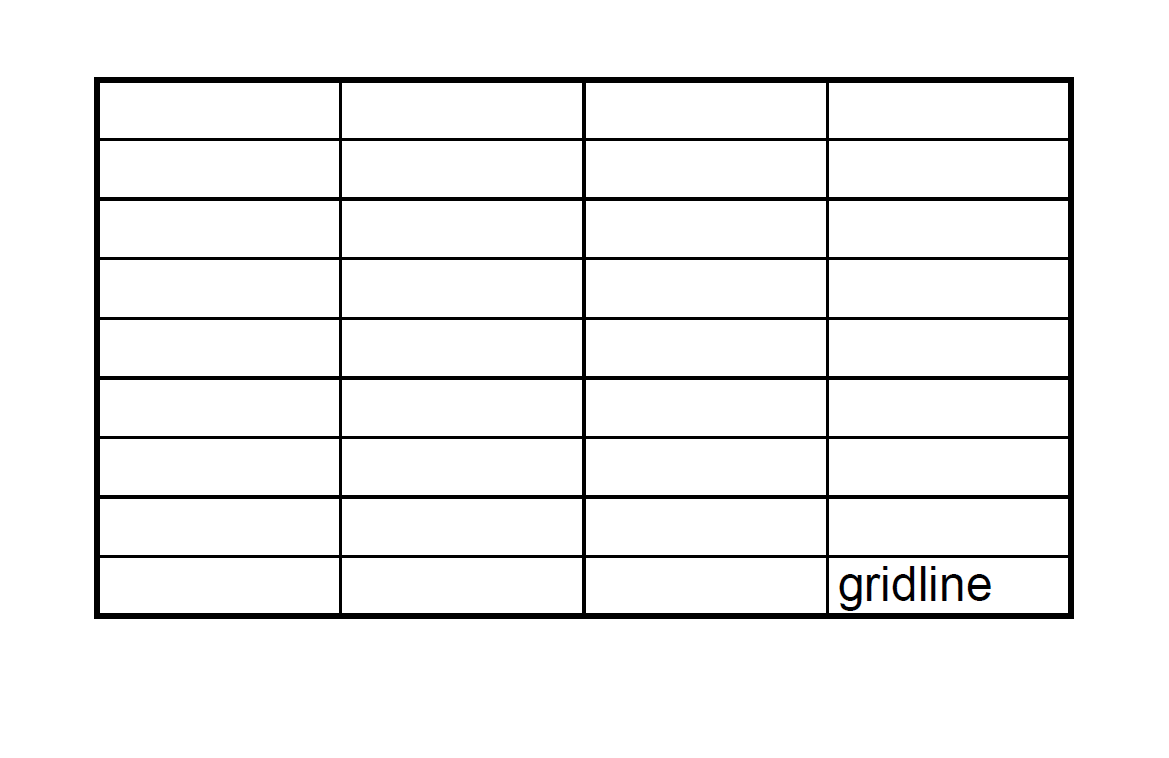

Pour assurer la compatibilité avec les versions antérieures, Aspose.Cells rend par défaut les lignes de grille en traitillé lors de la conversion d’Excel en PDF. Cependant, les versions modernes d’Excel rendent les lignes de grille en trait plein aujourd’hui.

Avec l’option PdfSaveOptions.gridlineTypes, Aspose.Cells for JavaScript via C++ peut également rendre les lignes de grille comme lignes solides.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Example - Generate PDF with Gridlines</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Loads the workbook which contains hidden external links (as in original JavaScript example)
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Create an empty Workbook
            const wb = new Workbook();

            // Prepare data
            const worksheet = wb.worksheets.get(0);
            const cell = worksheet.cells.get("D9");
            cell.value = "gridline";

            // Enable to print gridline
            worksheet.pageSetup.printGridlines = true;

            // Set to render gridline as solid line
            const pdfSaveOptions = new PdfSaveOptions();
            pdfSaveOptions.gridlineType = AsposeCells.GridlineType.Hair;

            // Save the pdf file with PdfSaveOptions
            const outputData = wb.save(SaveFormat.Pdf, pdfSaveOptions);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'test_Cs.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download PDF File';

            document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
        });
    </script>
</html>
