Créer un graphique de stock Open High Low Close (OHLC) avec Node.js via C++
Scénarios d’utilisation possibles

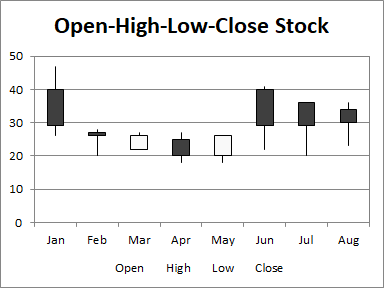

Le graphique Open-High-Low-Close (OHLC) utilise cinq colonnes de données, dans l’ordre : catégorie, ouverture, haut, bas et clôture. La plage de prix dans chaque catégorie est à nouveau indiquée par une ligne verticale, tandis que la plage entre l’ouverture et la clôture est donnée par une barre flottante plus large ; si le prix augmente dans la catégorie (la clôture est supérieure à l’ouverture), la barre est remplie d’une couleur, tandis que si le prix diminue, la barre est remplie d’une autre couleur. Ce type de graphique est souvent appelé un graphique en chandelier.
Améliorations de la visibilité dans le graphique
Nous utilisons souvent des couleurs plutôt que du noir et blanc pour indiquer l’augmentation ou la diminution des prix. Dans le premier ensemble de chandeliers ci-dessous, le rouge montre une augmentation et le vert une diminution des prix.
Code d’exemple

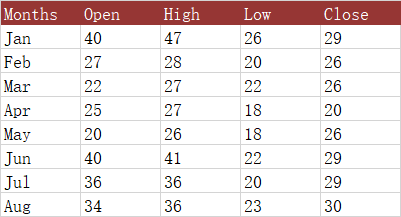

Le code d’exemple suivant charge le fichier Excel d’exemple et génère le fichier Excel de sortie.
const AsposeCells = require("aspose.cells.node");
const path = require("path");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().getCategoryData("A2:A9");
// Set the DownBars and UpBars with different color
chart.getNSeries().get(0).getDownBars().getArea().setForegroundColor(AsposeCells.Color.Green);
chart.getNSeries().get(0).getUpBars().getArea().setForegroundColor(AsposeCells.Color.Red);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
