Crea Grafico Stock Open High Low Close (OHLC) con Node.js tramite C++
Possibili Scenari di Utilizzo
Il grafico Open-High-Low-Close (OHLC) utilizza cinque colonne di dati, in ordine: categoria, apertura, alta, bassa e chiusura. L’intervallo di prezzi in ogni categoria è nuovamente indicato da una linea verticale, mentre l’intervallo tra apertura e chiusura è dato da una barra galleggiante più ampia; se il prezzo aumenta nella categoria (chiusura è superiore all’apertura), la barra è riempita con un colore, mentre se il prezzo diminuisce, la barra è riempita con un altro. Questo tipo di grafico è spesso chiamato grafico a candela.
Miglioramenti della visibilità nel grafico

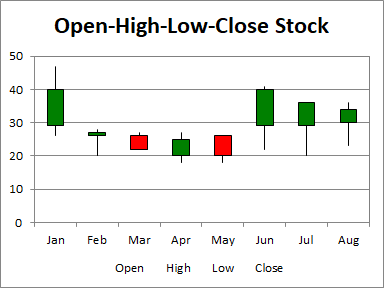

Spesso usiamo colori anziché bianco e nero per indicare prezzi in aumento e diminuzione. Nel primo set di candlestick sottostante, il rosso mostra prezzi in aumento e il verde in diminuzione.
Codice di Esempio

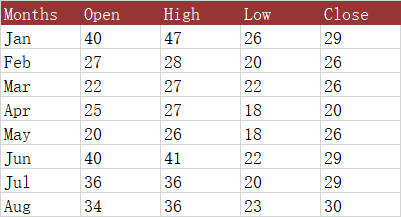

Il codice di esempio seguente carica il file Excel di esempio e genera il file Excel di output.
const AsposeCells = require("aspose.cells.node");
const path = require("path");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().getCategoryData("A2:A9");
// Set the DownBars and UpBars with different color
chart.getNSeries().get(0).getDownBars().getArea().setForegroundColor(AsposeCells.Color.Green);
chart.getNSeries().get(0).getUpBars().getArea().setForegroundColor(AsposeCells.Color.Red);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
