JavaScriptを使用してブックまたはワークシートの読み込み時にオブジェクトをフィルターする
Contents
[
Hide
]
可能な使用シナリオ
データをフィルタリングする際は、LoadOptions.loadFilter プロパティを使用してください。ただし、個々のワークシートからデータをフィルタリングしたい場合は、LoadFilter.startSheet(Worksheet) メソッドを上書きする必要があります。LoadDataFilterOptions 列挙体から適切な値を指定して、LoadFilter を作成または操作してください。
LoadDataFilterOptions 列挙体には次の値があります。
- 全て
- ブック設定
- 空白セル
- ブールセル
- データセル
- エラーセル
- 数値セル
- 文字列セル
- 値セル
- Chart
- 条件付き書式
- データの検証
- 定義された名前
- ドキュメントのプロパティ
- 数式
- ハイパーリンク
- 結合エリア
- ピボットテーブル
- 設定
- 図形
- シートデータ
- シート設定
- 構造
- スタイル
- テーブル
- VBA
- XmlMap
ワークブックの読み込み中にオブジェクトをフィルタリングする
以下のサンプルコードは、ワークブックからグラフをフィルタリングする方法を示しています。このコードで使用されているサンプルエクセルファイルとその生成された出力PDFを確認してください。出力PDFでは、すべてのグラフがワークブックからフィルタリングされていることが分かります。
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Filter Charts and Save to PDF Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, LoadOptions, LoadFilter, LoadDataFilterOptions, PdfSaveOptions } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const downloadLink = document.getElementById('downloadLink');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Create load options and filter out charts
const lOptions = new LoadOptions();
lOptions.loadFilter = new LoadFilter(LoadDataFilterOptions.All & ~LoadDataFilterOptions.Chart);
// Load the workbook with the above filter
const workbook = new Workbook(new Uint8Array(arrayBuffer), lOptions);
// Create PDF save options and set one page per sheet
const pOptions = new PdfSaveOptions();
pOptions.onePagePerSheet = true;
// Save the workbook in PDF format
const outputData = workbook.save(SaveFormat.Pdf, pOptions);
const blob = new Blob([outputData], { type: 'application/pdf' });
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'sampleFilterCharts.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">Workbook saved to PDF (charts filtered out). Click the download link to get the PDF.</p>';
});
</script>
</html>
ワークシートの読み込み中にオブジェクトをフィルタリングする
以下のサンプルコードは、ソースエクセルファイルを読み込み、カスタムフィルタを使用してそのワークシートから以下のデータをフィルタリングする方法を説明しています。
- NoChartsという名前のワークシートからグラフをフィルタリングします。
- NoShapesという名前のワークシートから形状をフィルタリングします。
- NoConditionalFormattingという名前のワークシートから条件付き書式をフィルタリングします。

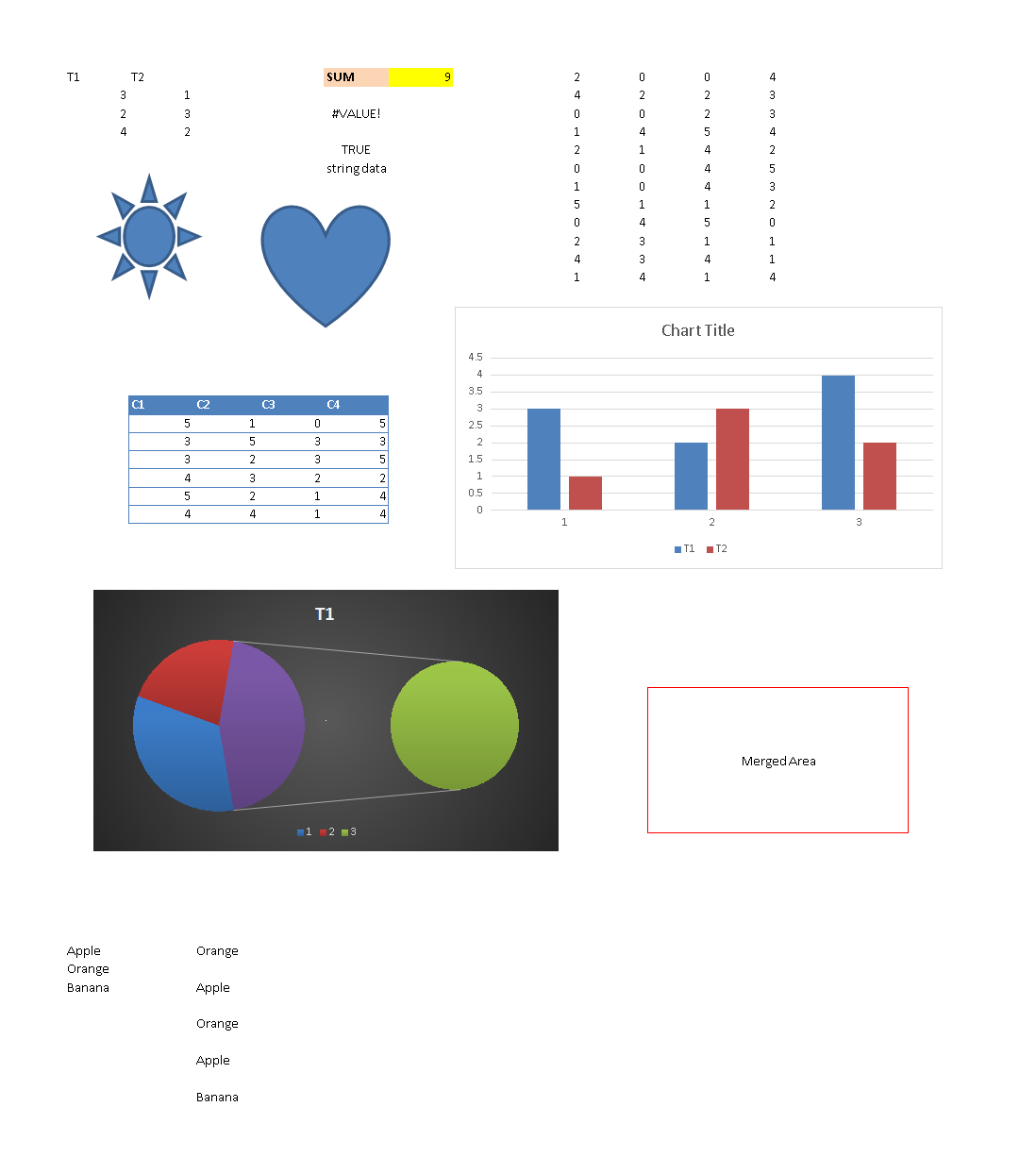

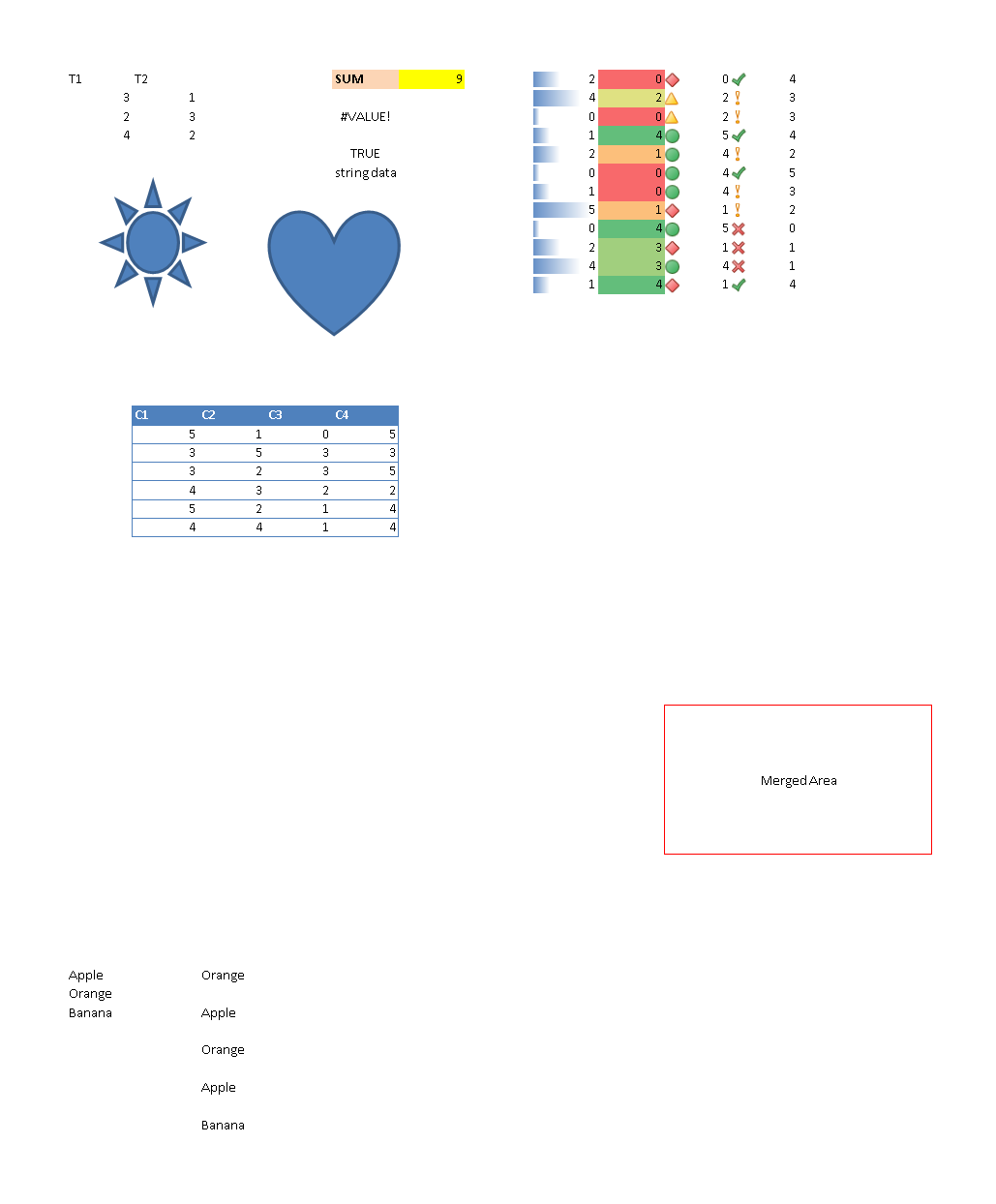

1つのカスタムフィルタでソースエクセルファイルを読み込むと、ワークシートを1つずつ画像化します。以下は参照用の出力画像です。最初の画像にはグラフがなく、2番目の画像には形状がなく、3番目の画像には条件付き書式がないことが分かります。
<!DOCTYPE html>
<html>
<head>
<title>Custom Load Filter Example</title>
</head>
<body>
<h1>Custom Load Filter Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Converted CustomLoadFilter class
class CustomLoadFilter extends AsposeCells.LoadFilter {
startSheet(sheet) {
if (sheet.name === "NoCharts") {
// Load everything and filter charts
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Chart;
}
if (sheet.name === "NoShapes") {
// Load everything and filter shapes
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Drawing;
}
if (sheet.name === "NoConditionalFormatting") {
// Load everything and filter conditional formatting
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.ConditionalFormatting;
}
}
}
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object using the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Instantiate and (optionally) attach the custom load filter
const customFilter = new CustomLoadFilter();
// If the environment supports assigning a load filter to workbook, set it as a property
workbook.loadFilter = customFilter;
// Inform user that the filter class was created and assigned
document.getElementById('result').innerHTML = '<p style="color: green;">CustomLoadFilter created and assigned to workbook. You can download the (possibly unchanged) workbook below.</p>';
// Save the workbook back to a downloadable file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
});
</script>
</html>
ワークシート名に従ってCustomLoadFilterクラスを使用する方法
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadList a { display: block; margin: 6px 0; }
#result p { margin: 8px 0; }
</style>
</head>
<body>
<h1>Render Worksheets to PNG with Custom Load Filter</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<div id="result"></div>
<div id="downloadList"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, LoadOptions, ImageOrPrintOptions, SheetRender, ImageType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Define CustomLoadFilter class (placeholder - adapt as needed)
// The original JavaScript code referenced a CustomLoadFilter implementation.
// This minimal implementation can be replaced with actual filtering logic.
class CustomLoadFilter {
constructor() {
}
// If the AsposeCells runtime expects specific methods on the filter,
// implement them here. This is a generic placeholder.
}
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
const downloadList = document.getElementById('downloadList');
downloadList.innerHTML = '';
resultDiv.innerHTML = '';
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Prepare load options and assign custom load filter
const loadOpts = new LoadOptions();
loadOpts.loadFilter = new CustomLoadFilter();
// Instantiate workbook from uploaded file with load options
const workbook = new Workbook(new Uint8Array(arrayBuffer), loadOpts);
// Iterate through worksheets and render each to PNG
const sheetCount = workbook.worksheets.count;
for (let i = 0; i < sheetCount; i++) {
const worksheet = workbook.worksheets.get(i);
// Create image options
const imageOpts = new ImageOrPrintOptions();
imageOpts.onePagePerSheet = true;
imageOpts.imageType = ImageType.Png;
// Render worksheet to image bytes
const render = new SheetRender(worksheet, imageOpts);
const imgBytes = render.toImage(0);
// Create blob and download link for each rendered image
const blob = new Blob([imgBytes], { type: 'image/png' });
const url = URL.createObjectURL(blob);
const link = document.createElement('a');
const sheetNameSafe = worksheet.name ? worksheet.name.replace(/[\/\\:?*"<>|]/g, '_') : `sheet${i+1}`;
link.href = url;
link.download = `outputCustomFilteringPerWorksheet_${sheetNameSafe}.png`;
link.textContent = `Download ${link.download}`;
downloadList.appendChild(link);
}
resultDiv.innerHTML = `<p style="color: green;">Rendered ${sheetCount} worksheet(s). Download links are available below.</p>`;
});
</script>
</html>
