Volume High Low Close(VHLC)株価チャートをNode.jsとC++で作成

可能な使用シナリオ

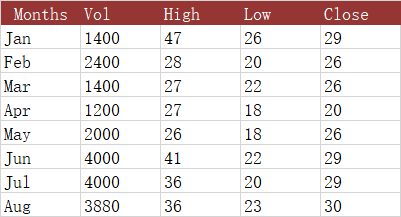

次に紹介する株価チャートはボリュームハイロークローズチャートです。データの順番が正しいことが重要です。データテーブルを並べ替える必要がある場合は、チャート設定前に行ってください。 このチャートには、最初の(カテゴリー)列の直後にボリューム列があり、主要軸の上にこのボリュームを示す棒グラフがあり、価格は副軸に移動しています。

todo:image_alt_text

出来高-高値-安値-終値(VHLC)株価チャート

todo:image_alt_text

サンプルコード

サンプルExcelファイルを読み込み、出力Excelファイルを生成するサンプルコードは、以下の通りです。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);

// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series(Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
