Node.jsをC++経由でシリーズを非表示に設定する方法

Excelチャートでシリーズを非表示にする方法

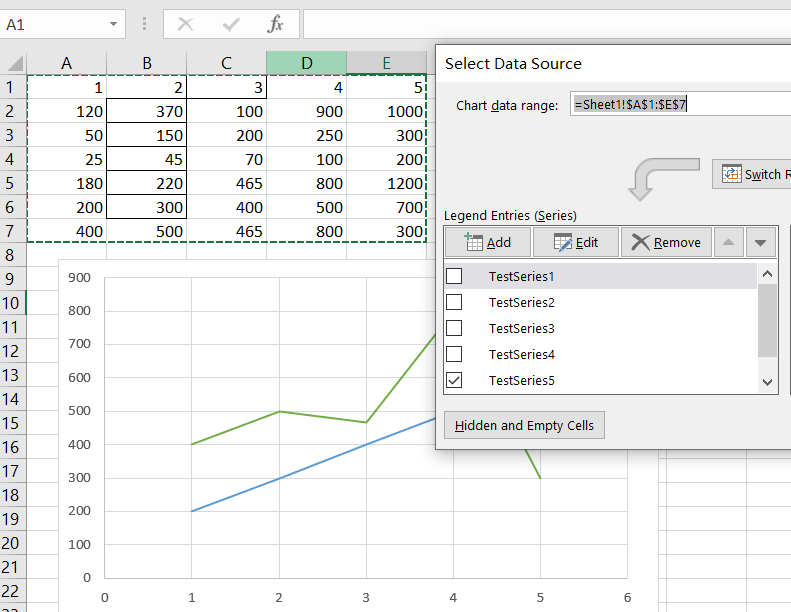

Excelチャートでは、チャートを右クリックして「データの選択」をクリックし、表示・非表示の設定をチェック・解除できます。以下のサンプルファイルをダウンロードし、図のように操作してこの機能を実現できます。次に、Aspose.Cellsライブラリを使った方法をご説明します。

todo:image_alt_text

Aspose.Cellsでシリーズを非表示に設定する方法

Aspose.Cellsを使ってシリーズを非表示に設定するコードは以下の通りです:

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "SeriesFiltered.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

const charts = workbook.getWorksheets().get(0).getCharts();
const chart = charts.get("Chart 1");
const nSeriesFiltered = chart.getFilteredNSeries();
const nSeries = chart.getNSeries();
nSeries.get(1).setIsColorVaried(true);
nSeries.get(0).setIsColorVaried(true);
workbook.save(path.join(dataDir, "output.xlsx"));

以下の入力ファイル出力ファイルを取得できます。

図のように、最初に表示されていた2つのシリーズが、出力ファイルで非表示になっています。 todo:image_alt_text
