Node.jsとC++を使用してワークシートにアイコンを追加

Aspose.Cells for Node.js via C++でワークシートにアイコンを追加する

Excel ファイルに ‘アイコン’ を追加する必要がある場合は、このドキュメントが役立ちます。Aspose.Cells を使用して、Excel ファイルにアイコンを追加する方法について説明します。

挿入アイコン操作に対応する Excel インターフェースは次のとおりです。

  • ワークシートに挿入するアイコンの位置を選択します
  • 挿入->アイコン を左クリックします
  • 開いたウィンドウで、上図の赤い四角内のアイコンを選択します
  • 左クリックで挿入を選択すると、Excelファイルに挿入されます。

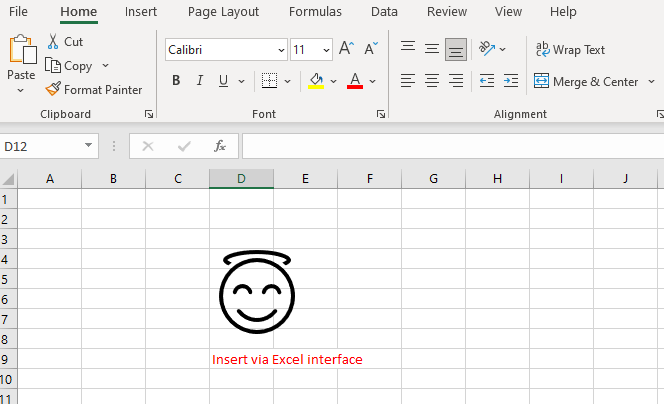

効果は以下のようになります。

ここでは、Aspose.Cellsを使ったアイコン挿入を支援するためのサンプルコードを用意しています。また、必要なサンプルファイルとアイコンリソースファイルもあります。Excelのインターフェースを使用して、リソースファイルと同じ表示効果のアイコンをサンプルファイルに挿入しました。

Node.js

const fs = require("fs");
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");

// Read icon resource file data
const fileName = path.join(dataDir, "icon.svg");
const bytes = fs.readFileSync(fileName).buffer;

// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the icon to the worksheet
sheet.getShapes().addIcons(3, 0, 7, 0, 100, 100, bytes, null);

// Set a prompt message
const c = sheet.getCells().get(8, 7);
c.putValue("Insert via Aspose.Cells");
const s = c.getStyle();
s.getFont().setColor(AsposeCells.Color.Blue);
c.setStyle(s);

// Save. You can check your icon in this way.
workbook.save("sample2.xlsx", AsposeCells.SaveFormat.Xlsx);

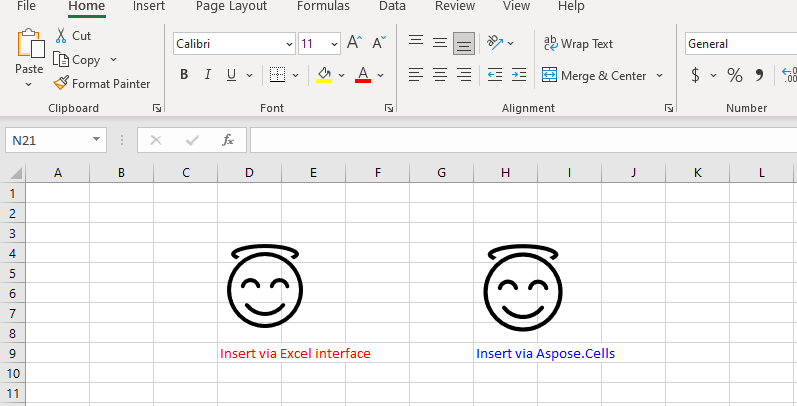

プロジェクトで上記のコードを実行すると、次の結果が得られます。
