Add Cells to Microsoft Excel Formula Watch Window with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
Microsoft Excel Watch Window is a useful tool to watch the cell values and its formulas conveniently in a window. You can open the Watch Window using Microsoft Excel by clicking the Formulas > Watch Window. It has the Add Watch button that can be used to add the cells for inspection. Similarly, you can use CellWatchCollection.add(number, number) method to add cells into Watch Window using the Aspose.Cells API.
Add Cells to Microsoft Excel Formula Watch Window

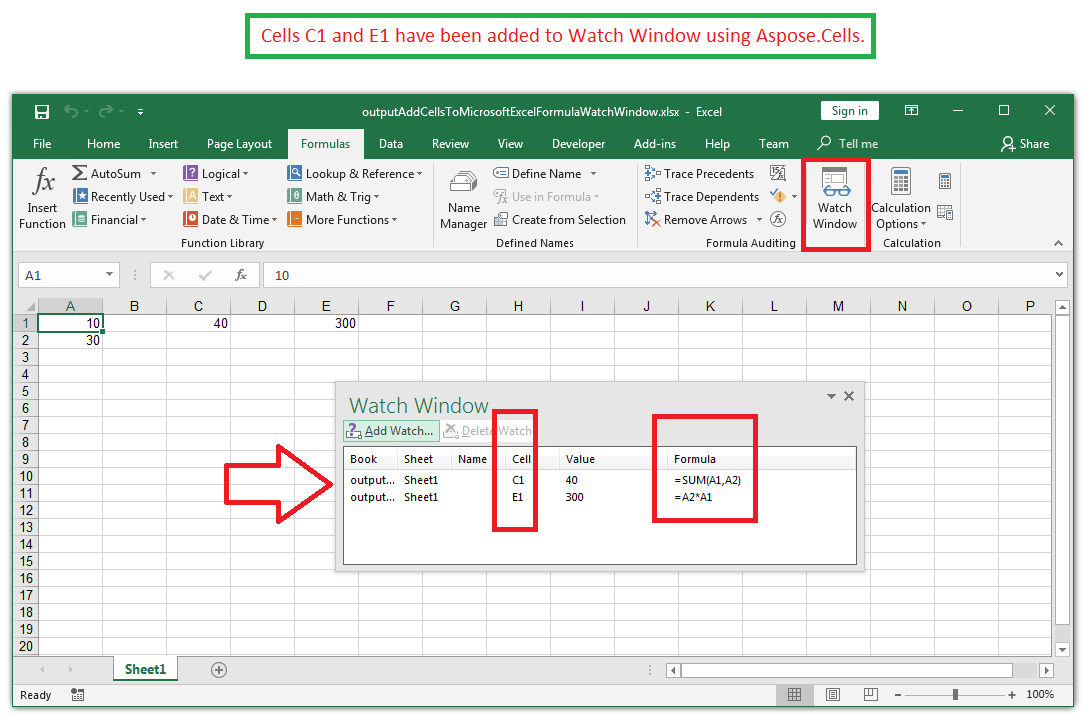

The following sample code sets the formula of cells C1 and E1 and adds both of them to the Watch Window. It then saves the workbook as output Excel file. If you open the output Excel file and view the Watch Window, you will see both cells as shown in this screenshot.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example - Add Cells to Formula Watch Window</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
// This example creates a new workbook (like the original JavaScript example).
// If a user-selected file is provided, it will be ignored for this specific example.
if (!fileInput) {
document.getElementById('result').innerHTML = '<p style="color: red;">File input not available.</p>';
return;
}
// Instantiate a new empty workbook
const wb = new Workbook();
// Access first worksheet
const ws = wb.worksheets.get(0);
// Put some integer values in cell A1 and A2
ws.cells.get("A1").value = 10;
ws.cells.get("A2").value = 30;
// Access cell C1 and set its formula
const c1 = ws.cells.get("C1");
c1.formula = "=Sum(A1,A2)";
// Add cell C1 into cell watches by name
ws.cellWatches.add(c1.name);
// Access cell E1 and set its formula
const e1 = ws.cells.get("E1");
e1.formula = "=A2*A1";
// Add cell E1 into cell watches by its row and column indices
ws.cellWatches.add(e1.row, e1.column);
// Save workbook to output XLSX format and provide download link
const outputData = wb.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputAddCellsToMicrosoftExcelFormulaWatchWindow.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Workbook created. Click the download link to get the file.</p>';
});
</script>
</html>
