Add PDF Bookmarks with Named Destinations using JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
Named Destinations are special kinds of bookmarks or links in PDF that do not depend on PDF pages. It means, if pages are added or deleted from PDF, bookmarks may become invalid but named destinations will remain intact. To create Named Destination, please set the PdfBookmarkEntry.destinationName property.
Add PDF Bookmarks with Named Destinations

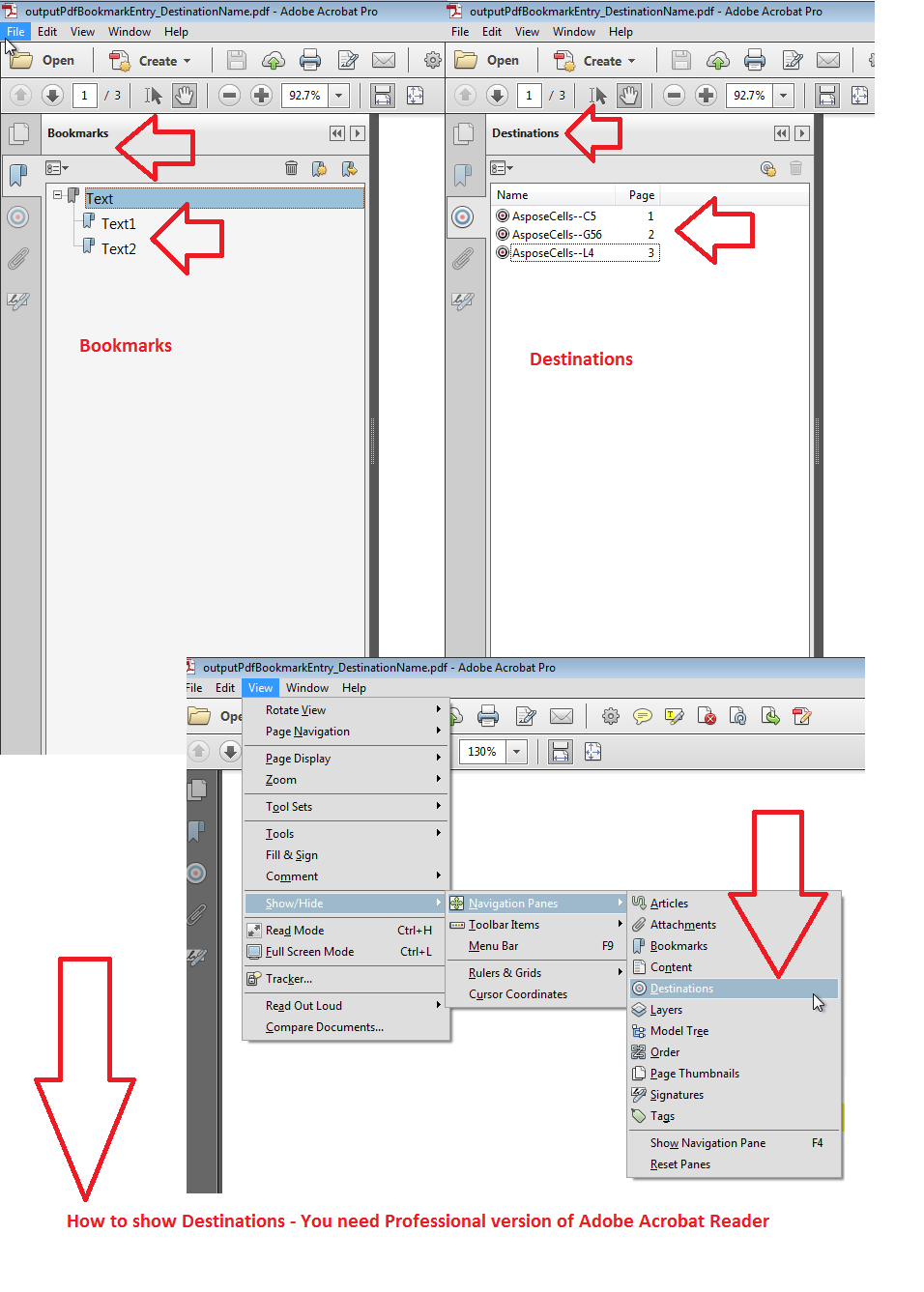

Please see the following sample code, its source Excel file, and its output PDF file. The screenshot shows the bookmarks and named destinations inside the output PDF. The screenshot also describes how to view Named Destinations and that you need Professional version of Acrobat Reader.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells PDF Bookmark Example</title>
</head>
<body>
<h1>Aspose.Cells PDF Bookmark Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;"></a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PdfBookmarkEntry, PdfSaveOptions } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const worksheet = workbook.worksheets.get(0);
// Access cell C5
let cell = worksheet.cells.get("C5");
// Create Bookmark and Destination for this cell
const bookmarkEntry = new PdfBookmarkEntry();
bookmarkEntry.text = "Text";
bookmarkEntry.destination = cell;
bookmarkEntry.destinationName = "AsposeCells--" + cell.name;
// Access cell G56
cell = worksheet.cells.get("G56");
// Create Sub-Bookmark and Destination for this cell
const subbookmarkEntry1 = new PdfBookmarkEntry();
subbookmarkEntry1.text = "Text1";
subbookmarkEntry1.destination = cell;
subbookmarkEntry1.destinationName = "AsposeCells--" + cell.name;
// Access cell L4
cell = worksheet.cells.get("L4");
// Create Sub-Bookmark and Destination for this cell
const subbookmarkEntry2 = new PdfBookmarkEntry();
subbookmarkEntry2.text = "Text2";
subbookmarkEntry2.destination = cell;
subbookmarkEntry2.destinationName = "AsposeCells--" + cell.name;
// Add Sub-Bookmarks in list
const list = [];
list.push(subbookmarkEntry1);
list.push(subbookmarkEntry2);
// Assign Sub-Bookmarks list to Bookmark Sub-Entry
bookmarkEntry.subEntries = bookmarkEntry.subEntries || [];
bookmarkEntry.subEntries.push(...list);
// Create PdfSaveOptions and assign Bookmark to it
const opts = new PdfSaveOptions();
opts.bookmark = bookmarkEntry;
// Save the workbook in Pdf format with given pdf save options
const outputData = workbook.save(SaveFormat.Pdf, opts);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputPdfBookmarkEntry_DestinationName.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">PDF created successfully! Click the download link to download the file.</p>';
});
</script>
</html>
