Add Signature line to the worksheet with JavaScript via C++

Introduction

Aspose.Cells provides the Picture.signatureLine property to add the signature line of the worksheet.

How to Add Signature Line to Worksheet

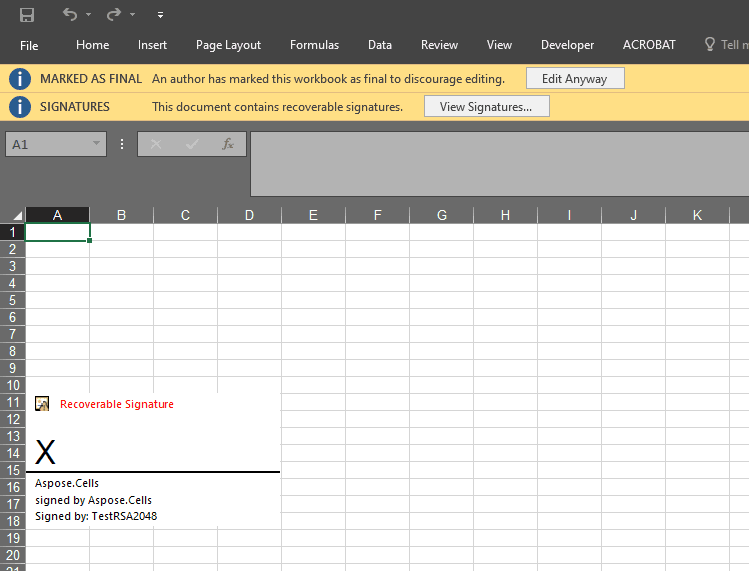

The following sample code demonstrates how to make use of Picture.signatureLine property to add the signature line of the worksheet. The screenshot shows the effect of the sample code on the sample Excel file after execution.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Signature Line</title>
    </head>
    <body>
        <h1>Signature Line Example</h1>
        <p>Optional: select an existing Excel file to add the signature line to. Otherwise a new workbook will be created.</p>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <p>Select a PFX certificate file (required):</p>
        <input type="file" id="certInput" accept=".pfx" />
        <br/><br/>
        <button id="runExample">Add Signature Line and Sign Workbook</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils, SignatureLine, DigitalSignature, DigitalSignatureCollection } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const certInput = document.getElementById('certInput');
            const resultDiv = document.getElementById('result');

            if (!certInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select a PFX certificate file.</p>';
                return;
            }

            const certFile = certInput.files[0];
            const certArrayBuffer = await certFile.arrayBuffer();
            const certBytes = new Uint8Array(certArrayBuffer);

            // Instantiate or load workbook
            let workbook;
            if (fileInput.files.length) {
                const file = fileInput.files[0];
                const arrayBuffer = await file.arrayBuffer();
                workbook = new Workbook(new Uint8Array(arrayBuffer));
            } else {
                workbook = new Workbook();
            }

            // Create and configure signature line
            const signatureLine = new SignatureLine();
            signatureLine.signer = "Aspose.Cells";
            signatureLine.title = "signed by Aspose.Cells";

            // Access first worksheet and add signature line
            const worksheet = workbook.worksheets.get(0);
            worksheet.shapes.addSignatureLine(1, 1, signatureLine);

            // Create digital signature from certificate bytes
            const signature = new DigitalSignature(certBytes, "aspose", "test Microsoft Office signature line", new Date());

            // Add signature to collection and assign to workbook
            const dsCollection = new DigitalSignatureCollection();
            dsCollection.add(signature);
            workbook.digitalSignature = dsCollection;

            // Save the workbook and provide download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'signatureLine.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Signed Workbook';

            resultDiv.innerHTML = '<p style="color: green;">Signature line added and workbook signed. Click the download link to get the file.</p>';
        });
    </script>
</html>
