Add Word Art Text with Built-in Styles using JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
You can add Word Art Text with Built-in Styles using Aspose.Cells for JavaScript via C++. Please use ShapeCollection.addWordArt() method for this purpose.
Add Word Art Text with Built-in Styles

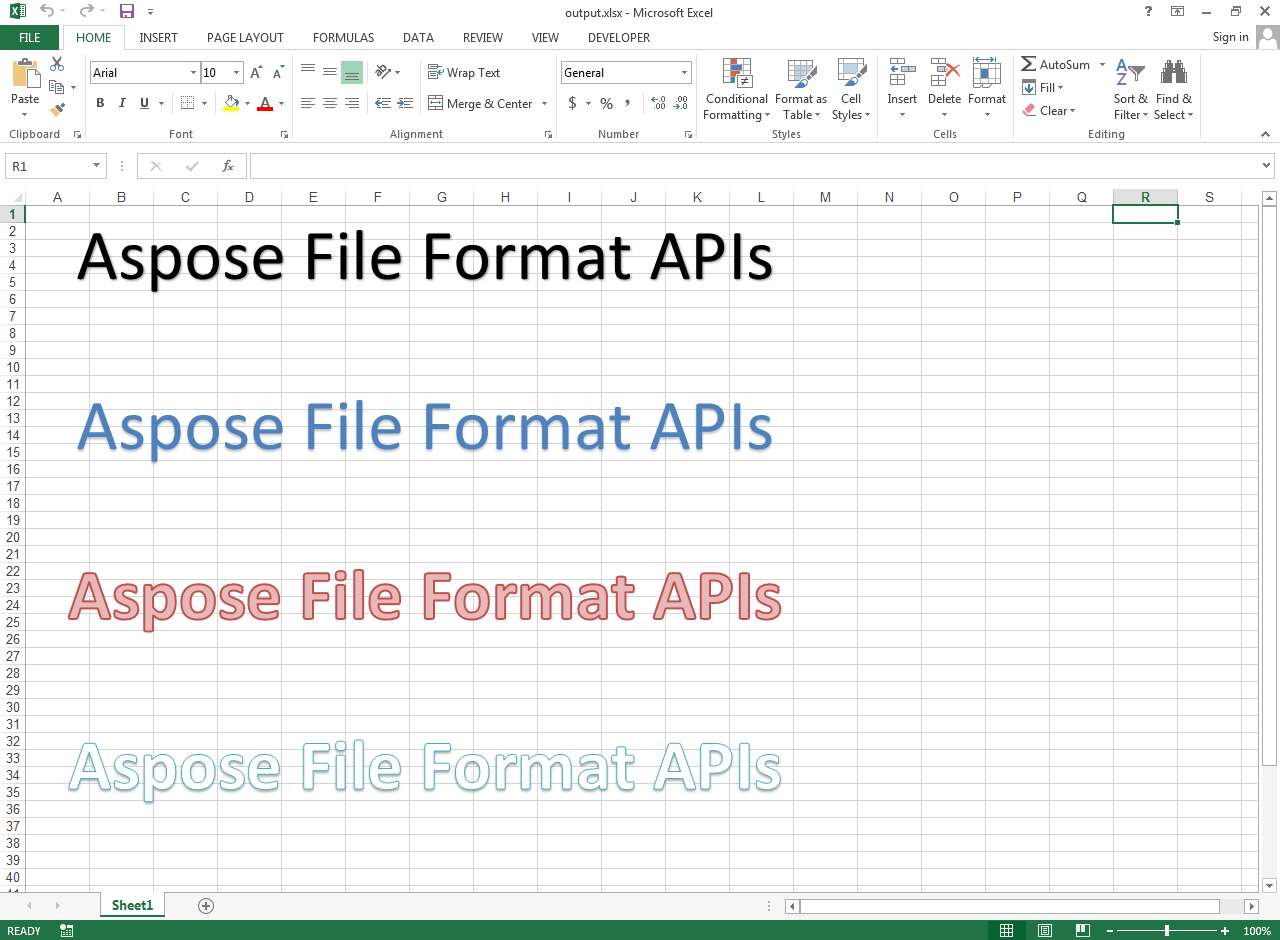

The following sample code adds Word Art texts with different Built-in Styles. Please check the output excel file generated with this code. This is how the output excel file looks in Microsoft Excel.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Add WordArt Example</title>
</head>
<body>
<h1>Add WordArt Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PresetWordArtStyle } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (fileInput.files.length === 0) {
// If no file selected, create a new workbook
var workbook = new Workbook();
} else {
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
var workbook = new Workbook(new Uint8Array(arrayBuffer));
}
// Ensure at least one worksheet exists
if (workbook.worksheets.count === 0) {
workbook.worksheets.add();
}
// Access first worksheet
const ws = workbook.worksheets.get(0);
// Add Word Art Text with Built-in Styles
ws.shapes.addWordArt(PresetWordArtStyle.WordArtStyle1, "Aspose File Format APIs", 0, 0, 0, 0, 100, 800);
ws.shapes.addWordArt(PresetWordArtStyle.WordArtStyle2, "Aspose File Format APIs", 10, 0, 0, 0, 100, 800);
ws.shapes.addWordArt(PresetWordArtStyle.WordArtStyle3, "Aspose File Format APIs", 20, 0, 0, 0, 100, 800);
ws.shapes.addWordArt(PresetWordArtStyle.WordArtStyle4, "Aspose File Format APIs", 30, 0, 0, 0, 100, 800);
ws.shapes.addWordArt(PresetWordArtStyle.WordArtStyle5, "Aspose File Format APIs", 40, 0, 0, 0, 100, 800);
// Save the workbook in xlsx format
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">WordArt added successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
