Add XML Map inside the Workbook using XmlMapCollection.Add method with JavaScript via C++

Possible Usage Scenarios

Aspose.Cells provides XmlMapCollection.add(string) method which you can use to import your XML Map inside the workbook.

Add XML Map inside the Workbook using XmlMapCollection.Add method

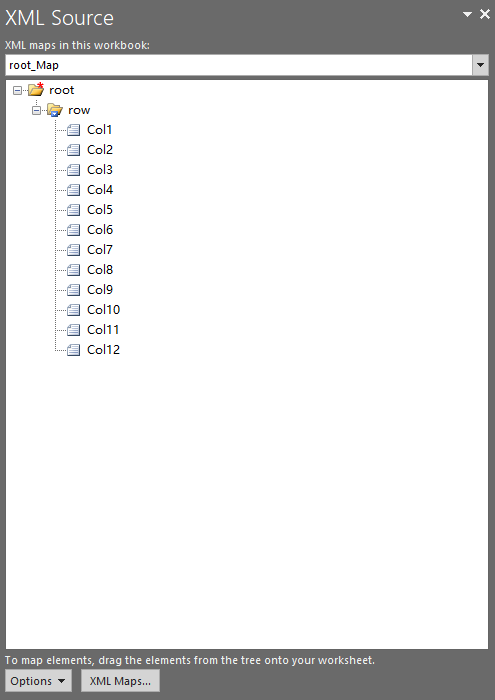

The following sample code adds XML Map inside the workbook using the XmlMapCollection.add(string) method and saves it as output excel file. The screenshot shows the XML Map that has been imported from the sample.xml inside the output excel file.

add-xml-map

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Add XML Map to Workbook Example</h1>
        <input type="file" id="fileInput" accept=".xml" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an XML file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();
            const xmlString = new TextDecoder().decode(arrayBuffer);

            // Create workbook object
            const wb = new Workbook();

            // Add xml map found inside the uploaded sample.xml into the workbook
            // Note: converted getter/setter usage to property access per universal conversion rules
            wb.worksheets.xmlMaps.add(xmlString);

            // Save the workbook in xlsx format and provide download link
            const outputData = wb.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">XML map added and workbook saved. Click the download link to get the modified file.</p>';
        });
    </script>
</html>
