Apply Shading to Alternate Rows and Columns with Conditional Formatting

Aspose.Cells APIs provide the means to add & manipulate conditional formatting rules for the Worksheet object. These rules can be tailored in a number of ways to get the desired formatting based on conditions or rules. This article will demonstrate the use of Aspose.Cells for JavaScript via C++ APIs to apply shading to alternate rows & columns with the help of conditional formatting rules and Excel’s built-in functions.

This article makes use of Excel’s built-in functions such as ROW, COLUMN & MOD. Here are some details of these functions for a better understanding of the code snippet provided ahead.

ROW() function returns the row number of a cell reference. If the reference parameter is omitted, it assumes that the reference is the cell address in which the ROW function has been entered.
COLUMN() function returns the column number of a cell reference. If the reference parameter is omitted, it assumes that the reference is the cell address in which the COLUMN function has been entered.
MOD() function returns the remainder after a number is divided by a divisor, where the first parameter to the function is the numeric value whose remainder you wish to find and the second parameter is the number used to divide into the number parameter. If the divisor is 0, then it will return the #DIV/0! error.

Let’s start writing some code to accomplish this goal with the help of Aspose.Cells for JavaScript via C++ API.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Conditional Formatting</title>
    </head>
    <body>
        <h1>Conditional Formatting Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, CellArea, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            // Create an instance of Workbook
            const book = new Workbook();

            // Access the first worksheet
            const sheet = book.worksheets.get(0);

            // Add FormatConditions to the instance of Worksheet
            let idx = sheet.conditionalFormattings.add();

            // Access the newly added FormatConditions via its index
            const conditionCollection = sheet.conditionalFormattings.get(idx);

            // Define a CellsArea on which conditional formatting will be applicable (A1 to I20)
            const area = CellArea.createCellArea("A1", "I20");

            // Add area to the instance of FormatConditions
            conditionCollection.addArea(area);

            // Add a condition to the instance of FormatConditions (Expression type)
            idx = conditionCollection.addCondition(AsposeCells.FormatConditionType.Expression);

            // Access the newly added FormatCondition via its index
            const formatCondition = conditionCollection.get(idx);

            // Set the formula for the FormatCondition
            formatCondition.formula1 = "=MOD(ROW(),2)=0";

            // Set the background color and pattern for the FormatCondition's Style
            formatCondition.style.backgroundColor = AsposeCells.Color.Blue;
            formatCondition.style.pattern = AsposeCells.BackgroundType.Solid;

            // Save the result and provide a download link
            const outputData = book.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Conditional formatting applied successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

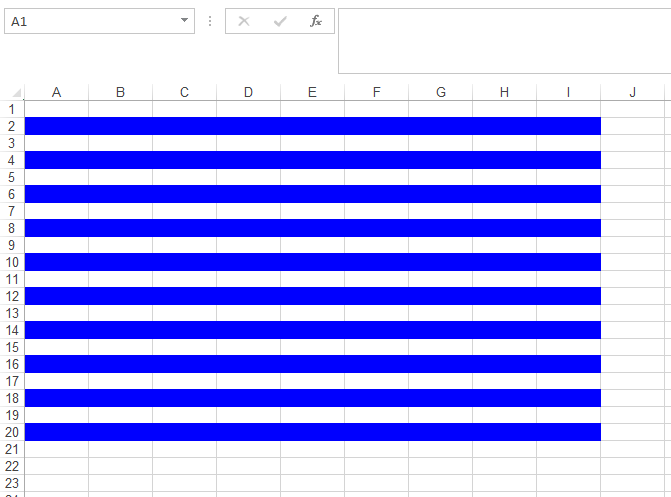

The following snapshot shows the resultant spreadsheet loaded in Excel application.

In order to apply the shading to alternative columns, all you have to do is to change the formula =MOD(ROW(),2)=0 as =MOD(COLUMN(),2)=0, that is; instead of getting the row index, modify the formula to retrieve the column index.

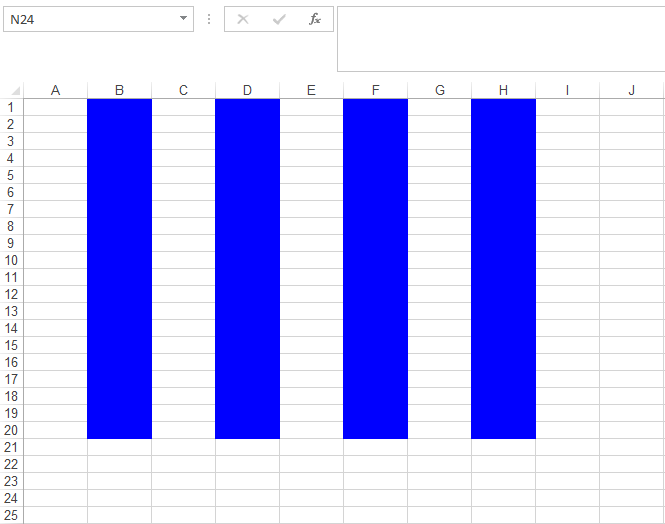

The resultant spreadsheet, in this case, will look as follow.
