Applying Subtotal and Changing Direction of Outline Summary Rows Below Detail

This article explains how to apply a subtotal to data and change the direction of outline summary rows below detail.

You can apply a subtotal to data using the Worksheet.cells.subtotal() method. It takes the following parameters.

CellArea – The range to which the subtotal is applied.
GroupBy – The field to group by, as a zero‑based integer offset.
Function – The subtotal function.
TotalList – An array of zero‑based field offsets indicating the fields to which the subtotals are added.
Replace – Indicates whether to replace the current subtotals.
PageBreaks – Indicates whether to add a page break between groups.
SummaryBelowData – Indicates whether to add a summary below the data.

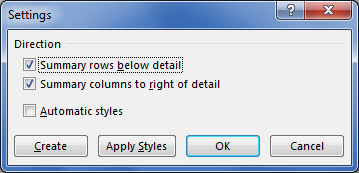

You can also control the direction of Outline Summary rows below detail as shown in the following screenshot by using the Worksheet.outline.summaryRowBelow property. This setting can be opened in Microsoft Excel via Data > Outline > Settings.

todo:image_alt_text

Images of source and output files

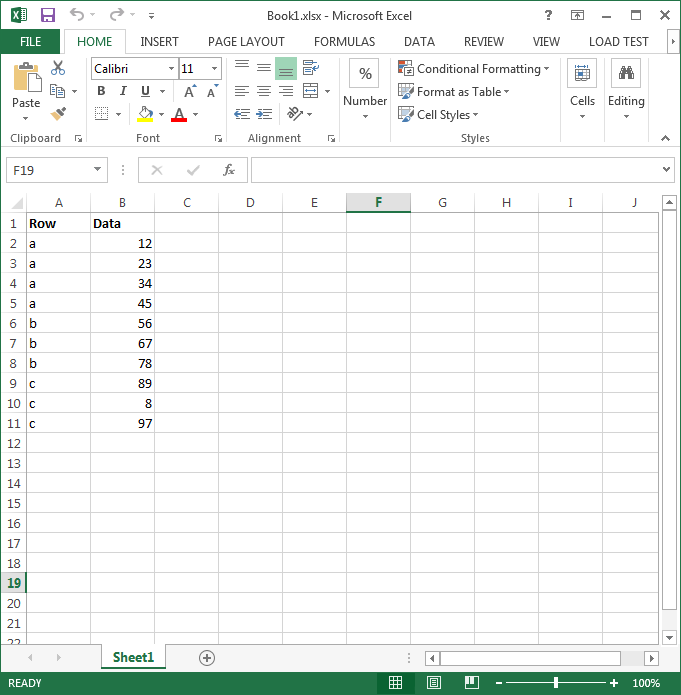

The following screenshot shows the source Excel file used in the sample code below, which contains data in columns A and B.

todo:image_alt_text

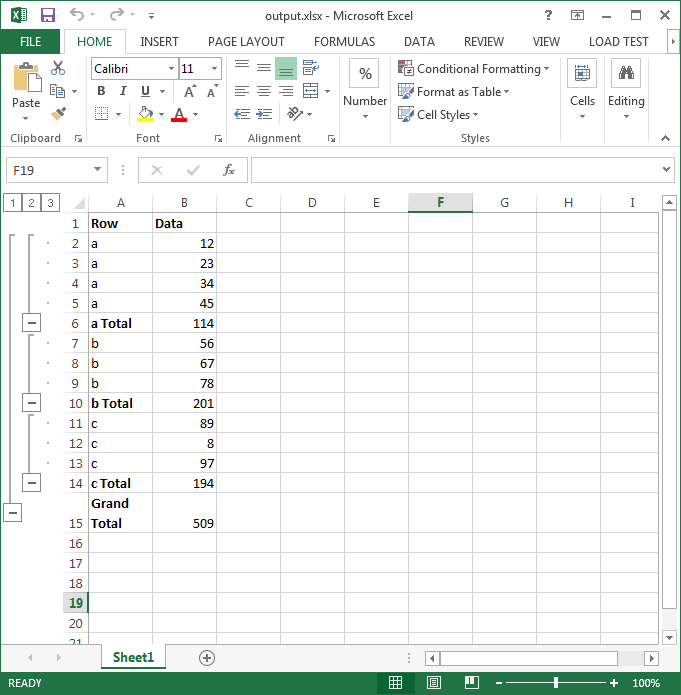

The following screenshot shows the output Excel file generated by the sample code. As you can see, a subtotal has been applied to range A2:B11, and the outline direction is set to summary rows below detail.

todo:image_alt_text

JavaScript to apply subtotal and change the direction of outline summary rows

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Subtotal Example</title>
    </head>
    <body>
        <h1>Apply Subtotal Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, CellArea, ConsolidationFunction, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Create a workbook from the uploaded Excel file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first worksheet
            const worksheet = workbook.worksheets.get(0);

            // Get the Cells collection in the first worksheet
            const cells = worksheet.cells;

            // Create a cell area, i.e., A2:B11
            const ca = CellArea.createCellArea("A2", "B11");

            // Apply subtotal; the consolidation function is Sum and it will be applied to the second column (B) in the list
            cells.subtotal(ca, 0, ConsolidationFunction.Sum, [1], true, false, true);

            // Set the direction of outline summary
            worksheet.outline.summaryRowBelow = true;

            // Save the Excel file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Subtotal applied successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
