AutoFit Rows for Merged Cells with JavaScript via C++

How to use AutoFitMergedCellsType for autofitting rows

Aspose.Cells for JavaScript via C++ supports this feature through the AutoFitterOptions.autoFitMergedCellsType API. Using this API, it is possible to auto-fit rows in a worksheet including merged cells. Here is a list of all possible types of auto fitting merged cells:

  • None
  • FirstLine
  • LastLine
  • EachLine

Autofit Rows for Merged Cells

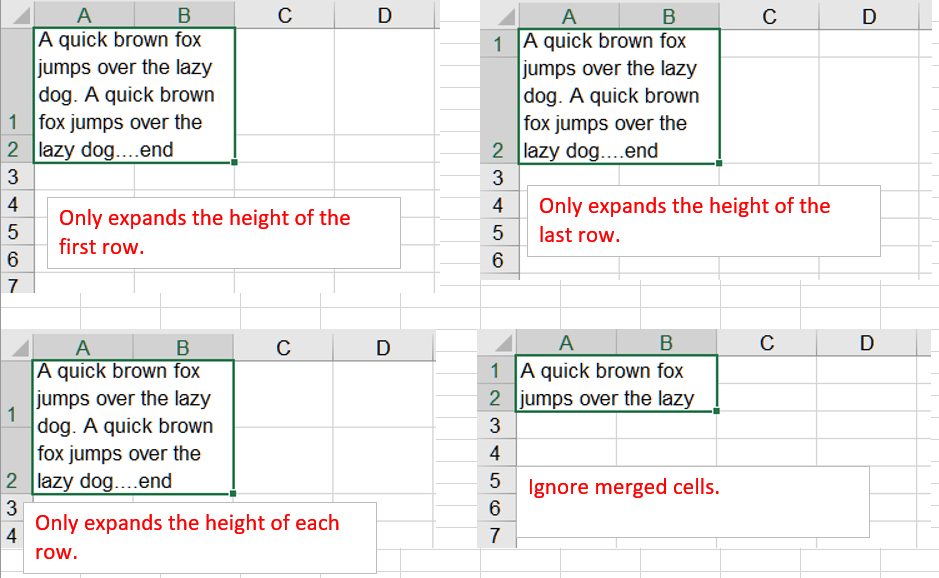

Please see the following code, it creates a workbook object and adds multiple worksheets. Use different methods for autofit operations in each worksheet. The screenshot shows the results after the execution of the sample code.


JavaScript Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Autofit Merged Cells Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, AutoFitterOptions, AutoFitMergedCellsType, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');

            let workbook;
            if (fileInput.files.length) {
                const file = fileInput.files[0];
                const arrayBuffer = await file.arrayBuffer();
                workbook = new Workbook(new Uint8Array(arrayBuffer));
            } else {
                workbook = new Workbook();
            }

            // Obtaining the reference of the first worksheet
            const sheet1 = workbook.worksheets.get(0);

            // Create a range A1:B2
            const range = sheet1.cells.createRange(0, 0, 2, 2);

            // Merge the cells
            range.merge();

            // Insert value to the merged cell A1
            const cell1 = sheet1.cells.get(0, 0);
            cell1.value = "A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end";

            // Create a style object
            const style = cell1.style;

            // Set wrapping text on
            style.isTextWrapped = true;

            // Apply the style to the cell
            cell1.style = style;

            // Create an object for AutoFitterOptions
            const options = new AutoFitterOptions();

            // Only expands the height of the first row.
            options.autoFitMergedCellsType = AutoFitMergedCellsType.FirstLine;

            // Autofit rows in the sheet (including the merged cells)
            sheet1.autoFitRows(options);

            let index = workbook.worksheets.add();
            const sheet2 = workbook.worksheets.get(index);
            sheet2.name = "Sheet2";
            // Create a range A1:B2
            const range2 = sheet2.cells.createRange(0, 0, 2, 2);

            // Merge the cells
            range2.merge();

            // Insert value to the merged cell A1
            const cell2 = sheet2.cells.get(0, 0);
            cell2.value = "A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end";

            // Create a style object
            const style2 = cell2.style;

            // Set wrapping text on
            style2.isTextWrapped = true;

            // Apply the style to the cell
            cell2.style = style2;

            // Create an object for AutoFitterOptions
            const options2 = new AutoFitterOptions();

            // Only expands the height of the last row.
            options2.autoFitMergedCellsType = AutoFitMergedCellsType.LastLine;

            // Autofit rows in the sheet (including the merged cells)
            sheet2.autoFitRows(options2);

            index = workbook.worksheets.add();
            const sheet3 = workbook.worksheets.get(index);
            sheet3.name = "Sheet3";
            // Create a range A1:B2
            const range3 = sheet3.cells.createRange(0, 0, 2, 2);

            // Merge the cells
            range3.merge();

            // Insert value to the merged cell A1
            const cell3 = sheet3.cells.get(0, 0);
            cell3.value = "A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end";

            // Create a style object
            const style3 = cell3.style;

            // Set wrapping text on
            style3.isTextWrapped = true;

            // Apply the style to the cell
            cell3.style = style3;

            // Create an object for AutoFitterOptions
            const options3 = new AutoFitterOptions();

            // Only expands the height of each row.
            options3.autoFitMergedCellsType = AutoFitMergedCellsType.EachLine;

            // Autofit rows in the sheet (including the merged cells)
            sheet3.autoFitRows(options3);

            index = workbook.worksheets.add();
            const sheet4 = workbook.worksheets.get(index);
            sheet4.name = "Sheet4";
            // Create a range A1:B2
            const range4 = sheet4.cells.createRange(0, 0, 2, 2);

            // Merge the cells
            range4.merge();

            // Insert value to the merged cell A1
            const cell4 = sheet4.cells.get(0, 0);
            cell4.value = "A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end";

            // Create a style object
            const style4 = cell4.style;

            // Set wrapping text on
            style4.isTextWrapped = true;

            // Apply the style to the cell
            cell4.style = style4;

            // Create an object for AutoFitterOptions
            const options4 = new AutoFitterOptions();

            // Ignore merged cells.
            options4.autoFitMergedCellsType = AutoFitMergedCellsType.None;

            // Autofit rows in the sheet (not including the merged cells)
            sheet4.autoFitRows(options4);

            // Saving the modified Excel file and creating a download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
