AutoFit Rows for Rendering with JavaScript via C++
Contents
[
Hide
]
Generally, when you want to display all the text in a cell, you can auto-fit the row in Normal view with 100% zoom in Microsoft Excel. This allows the text to be fully visible in Normal view, and even when you print or save the file as a PDF, the text will be displayed correctly.

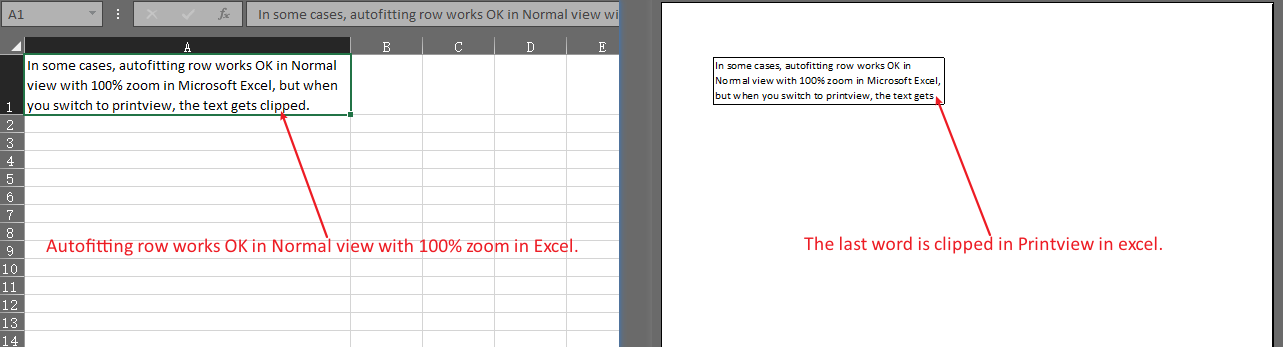

However, in some cases, auto-fitting the row works fine in Normal view, but when you switch to print view or save the file as a PDF, the text gets clipped. Please check the source file Book1.xlsx and screenshots.
If you want to prevent text from being clipped in the saved PDF file, you can auto-fit the row with the AutoFitterOptions.forRendering option.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Autofit Rows and Save as PDF Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, AutoFitterOptions, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Init workbook instance from uploaded file.
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Set autofit options for rendering.
const autoFitterOptions = new AutoFitterOptions();
autoFitterOptions.forRendering = true;
// Autofit rows with options on first worksheet.
const worksheet = workbook.worksheets.get(0);
worksheet.autoFitRows(autoFitterOptions);
// Save to pdf.
const outputData = workbook.save(SaveFormat.Pdf);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>

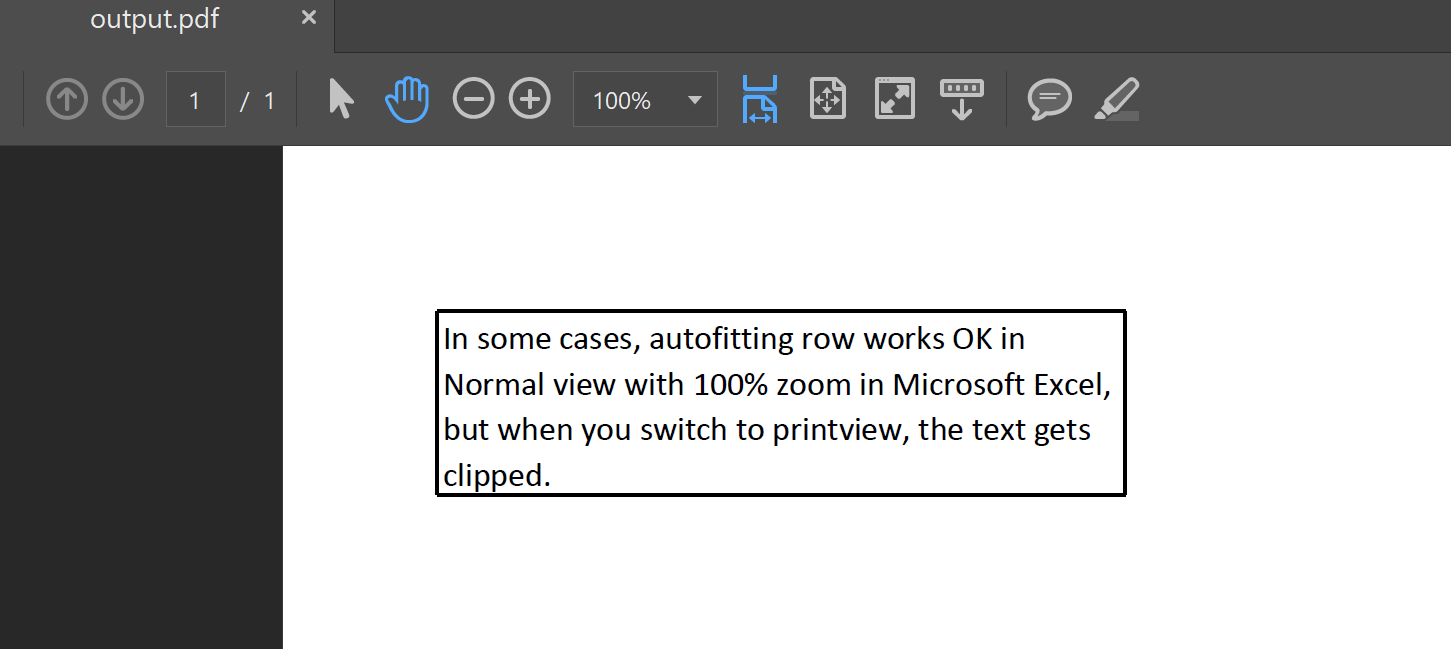

Now, the text is not clipped in the output PDF file.
