Change Data Source of the Chart to Destination Worksheet while Copying Rows or Range with JavaScript via C++

Possible Usage Scenarios

When you copy rows or range which contains charts to a new worksheet, then the data source of the chart does not change. For example, if the data source of the chart is =Sheet1!$A$1:$B$4, then after copying rows or range to a new worksheet, the data source will remain the same i.e., =Sheet1!$A$1:$B$4. It still refers to the old worksheet i.e., Sheet1. This is also the behavior in Microsoft Excel. But if you want it to refer to the new destination worksheet, then please use the CopyOptions.referToDestinationSheet property and set it to true while calling the Cells.copyRows(Cells, number, number, number) method. Now if your destination worksheet is DestSheet, then the data source of your chart will change from =Sheet1!$A$1:$B$4 to =DestSheet!$A$1:$B$4.

Change Data Source of the Chart to Destination Worksheet while Copying Rows or Range

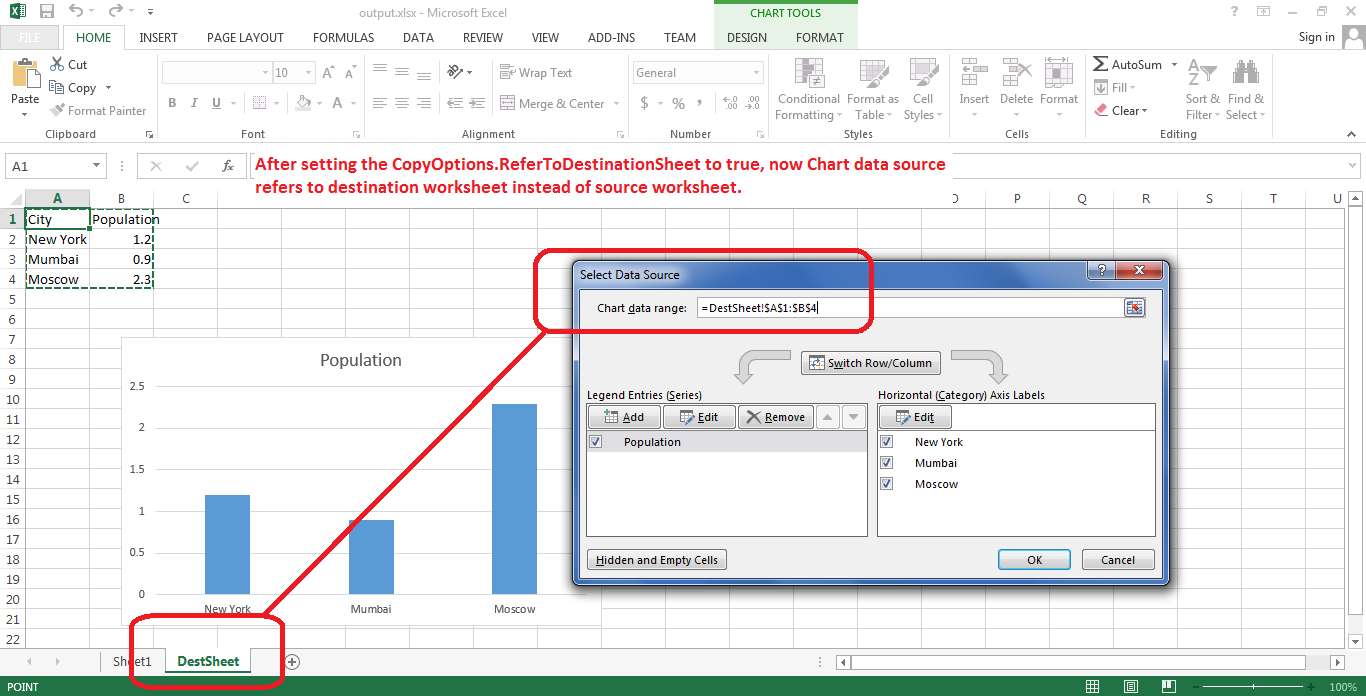

The following sample code explains the usage of CopyOptions.referToDestinationSheet property while copying rows or range containing charts to a new worksheet. The code uses the sample excel file and generates the output excel file.

todo:image_alt_text

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Copy Worksheet with Charts</title>
    </head>
    <body>
        <h1>Copy Worksheet with Charts Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiate Workbook from the uploaded file
            const wb = new Workbook(new Uint8Array(arrayBuffer));

            // Access the first sheet which contains chart
            const source = wb.worksheets.get(0);

            // Add another sheet named DestSheet
            const destination = wb.worksheets.add("DestSheet");

            // Set CopyOptions.referToDestinationSheet to true
            const options = new AsposeCells.CopyOptions();
            options.referToDestinationSheet = true;

            // Copy all the rows of source worksheet to destination worksheet which includes chart as well
            // The chart data source will now refer to DestSheet
            destination.cells.copyRows(source.cells, 0, 0, source.cells.maxDisplayRange.rowCount, options);

            // Save workbook in xlsx format and provide download link
            const outputData = wb.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Worksheet copied successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
