Clear filter in Pivot Table
Contents
[
Hide
]
Possible Usage Scenarios
When you create a pivot table with known data and want to filter the pivot table, you need to learn and use filter. It can help you filter out the data you want effectively. By using the Aspose.Cells for JavaScript via C++ API, you can operate filter on field values in Pivot Tables.
How to Clear filter in Pivot Table in Excel
Clear filter in Pivot Table in Excel, follow these steps:
- Select the PivotTable that you want to clear filter to.

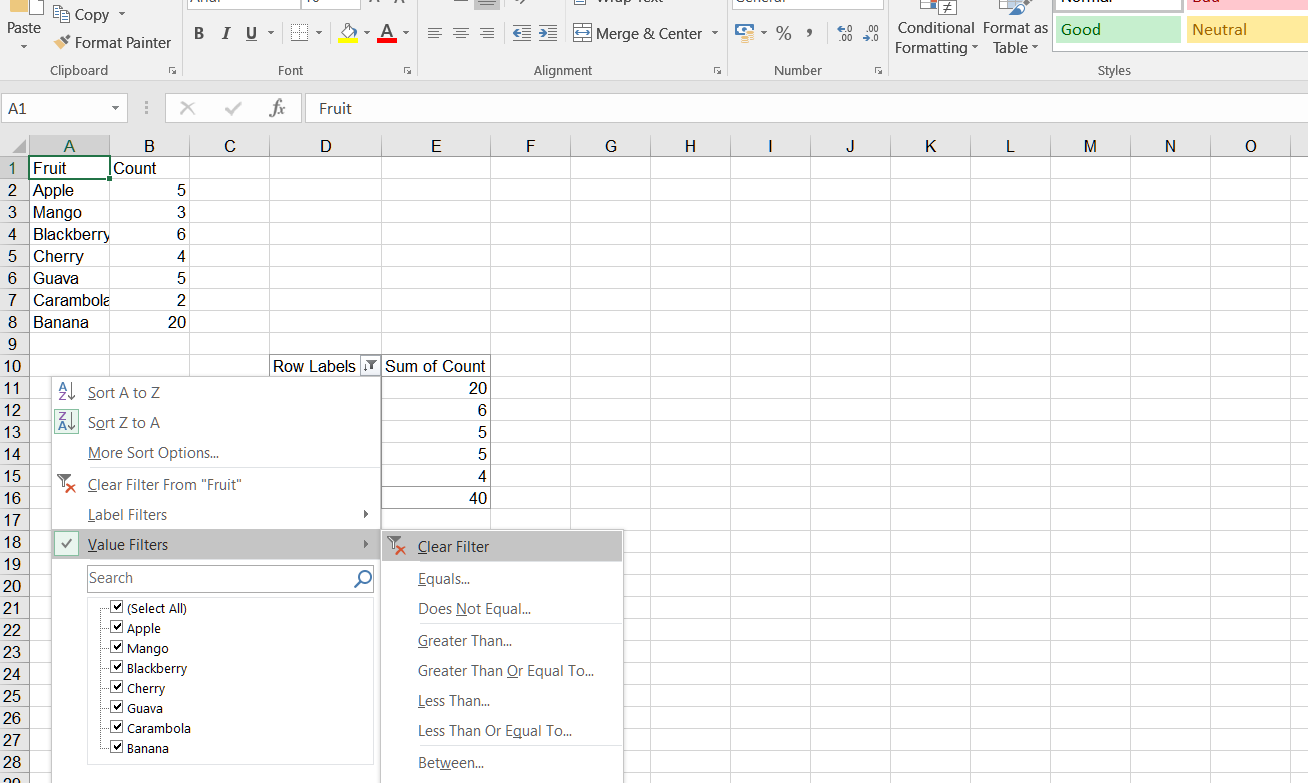

- Click on the drop-down arrow for the filter you want to clear in the pivot table.
- Select the “Clear Filter” from the drop-down menu.

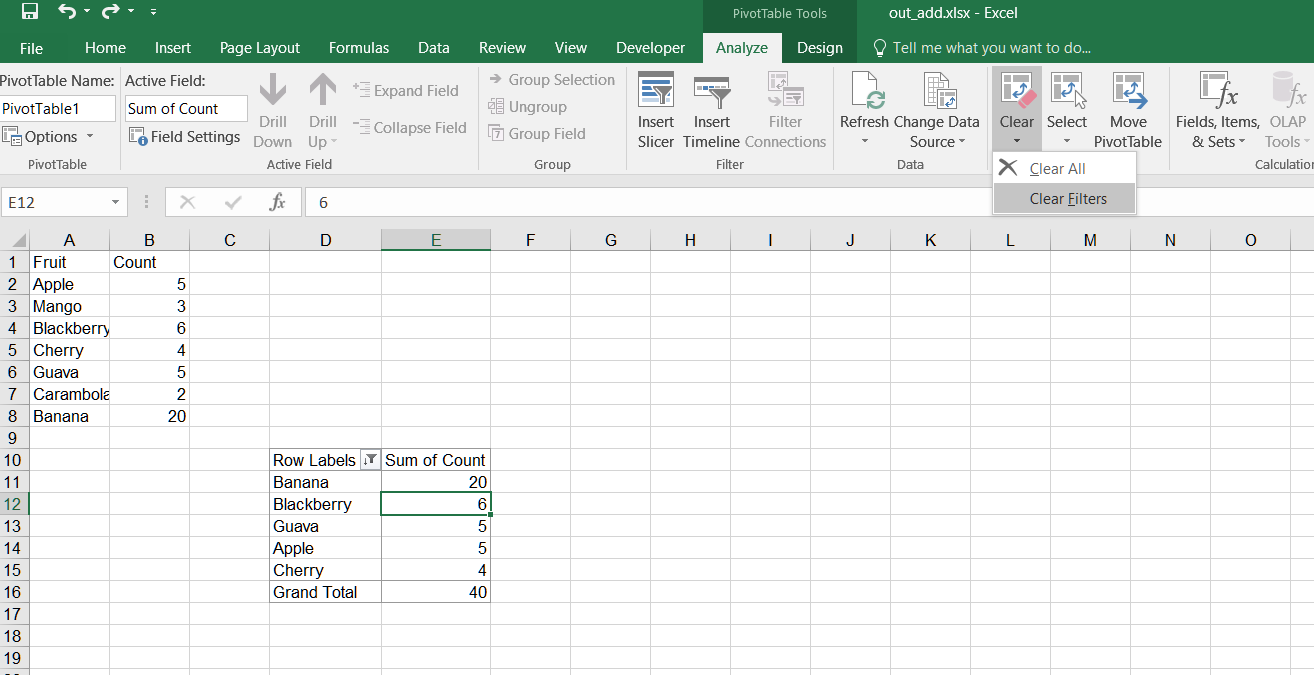

- If you want to clear all filters from the pivot table, you can also click on the “Clear Filters” button in PivotTable Analyze tab on the ribbon in Excel.
How to Clear filter in Pivot Table Using Aspose.Cells for JavaScript via C++
Clear filter in Pivot Table using Aspose.Cells for JavaScript via C++. Please see the following sample code.
- Set the data and create a PivotTable based on it.
- Add a filter on the row field of the pivot table.
- Save the workbook in output XLSX format. After executing the example code, a pivot table with top10 filter is added to the worksheet.
- Clear the filter on a specific pivotfield. After executing the code to clear the filter, the filter on the specific pivotfield will be cleared. Please check the output XLSX.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells PivotTable Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<div>
<a id="downloadLinkAdd" style="display: none; margin-right: 10px;">Download Pivot Added File</a>
<a id="downloadLinkDelete" style="display: none;">Download Pivot Filter Cleared File</a>
</div>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
document.getElementById('result').innerHTML = '<p>Running example...</p>';
// Create a new workbook
const workbook = new Workbook();
// Obtaining the reference of the newly added worksheet
const ws = workbook.worksheets.get(0);
const cells = ws.cells;
// Setting the value to the cells
let cell = cells.get("A1");
cell.value = "Fruit";
cell = cells.get("B1");
cell.value = "Count";
cell = cells.get("A2");
cell.value = "Apple";
cell = cells.get("A3");
cell.value = "Mango";
cell = cells.get("A4");
cell.value = "Blackberry";
cell = cells.get("A5");
cell.value = "Cherry";
cell = cells.get("A6");
cell.value = "Guava";
cell = cells.get("A7");
cell.value = "Carambola";
cell = cells.get("A8");
cell.value = "Banana";
cell = cells.get("B2");
cell.value = 5;
cell = cells.get("B3");
cell.value = 3;
cell = cells.get("B4");
cell.value = 6;
cell = cells.get("B5");
cell.value = 4;
cell = cells.get("B6");
cell.value = 5;
cell = cells.get("B7");
cell.value = 2;
cell = cells.get("B8");
cell.value = 20;
// Adding a PivotTable to the worksheet
const i = ws.pivotTables.add("=A1:B8", "D10", "PivotTable1");
// Accessing the instance of the newly added PivotTable
const pivotTable = ws.pivotTables.get(i);
pivotTable.addFieldToArea(AsposeCells.PivotFieldType.Row, 0);
pivotTable.addFieldToArea(AsposeCells.PivotFieldType.Data, "Count");
pivotTable.dataFields.get(0).function = AsposeCells.ConsolidationFunction.Sum;
const field = pivotTable.rowFields.get(0);
field.isAutoSort = true;
field.isAscendSort = false;
field.autoSortField = 0;
// Add top10 filter
const index = pivotTable.pivotFilters.add(field.baseIndex, AsposeCells.PivotFilterType.Count);
const filter = pivotTable.pivotFilters.get(index);
filter.autoFilter.filterTop10(0, true, false, 5);
pivotTable.refreshData();
pivotTable.calculateData();
// Save workbook after adding pivot/filter
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLinkAdd = document.getElementById('downloadLinkAdd');
downloadLinkAdd.href = URL.createObjectURL(blob);
downloadLinkAdd.download = 'out_add.xlsx';
downloadLinkAdd.style.display = 'inline-block';
downloadLinkAdd.textContent = 'Download out_add.xlsx';
document.getElementById('result').innerHTML = '<p style="color: green;">Pivot table created and top10 filter applied. Download the file with pivot added.</p>';
// Clear PivotFilter from the specific PivotField
pivotTable.pivotFilters.clearFilter(field.baseIndex);
pivotTable.refreshData();
pivotTable.calculateData();
// Save workbook after clearing filter
const outputData2 = workbook.save(SaveFormat.Xlsx);
const blob2 = new Blob([outputData2]);
const downloadLinkDelete = document.getElementById('downloadLinkDelete');
downloadLinkDelete.href = URL.createObjectURL(blob2);
downloadLinkDelete.download = 'out_delete.xlsx';
downloadLinkDelete.style.display = 'inline-block';
downloadLinkDelete.textContent = 'Download out_delete.xlsx';
document.getElementById('result').innerHTML += '<p style="color: green;">Pivot filter cleared and data recalculated. Download the file with filter removed.</p>';
});
</script>
</html>
