Shapes in Charts with JavaScript via C++
Contents
[
Hide
]
Sometimes you need to insert drawing objects like labels, text boxes, pictures and so on into a chart. Aspose.Cells can add the controls to a chart at runtime.
Adding Label Control to the Chart
Labels provide a means for giving information to users about a spreadsheet’s content. Aspose.Cells allows you to add and manipulate labels even into charts.
The ShapeCollection class provides a method named addLabelInChart(number, number, number, number), used to add a label control to a chart. Below is a list of the parameters used for the method:
- top – the vertical offset of the label from the upper left corner in units of 1/4000 of the chart area.
- left – the vertical offset of the label from the upper left corner in units of 1/4000 of the chart area.
- height – the height of the label, in units of 1/4000 of the chart area.
- width – the width of label, in units of 1/4000 of the chart area.
The method returns Label object. The Label class represents a label in the chart. It has some important members:
- text (property) – specifies a label’s caption string.
- fill (property) – specifies the fill color attributes.
The following example shows how to add a label to the chart. The example uses a designer file (exp_piechart.xls) which has a chart in it. We use this file to insert a label into the chart. Below is the original code for adding a label to the chart. The following output is generated when executing the code.
<!DOCTYPE html>
<html>
<head>
<title>Add Label In Chart Example</title>
</head>
<body>
<h1>Add Label In Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the Excel file from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the designer chart in the second sheet.
const sheet = workbook.worksheets.get(1);
const chart = sheet.charts.get(0);
// Add a new label to the chart.
const label = chart.shapes.addLabelInChart(100, 100, 350, 900);
// Set the caption of the label.
label.text = "A Label In Chart";
// Set the Placement Type, the way the Label is attached to the cells.
label.placement = AsposeCells.PlacementType.FreeFloating;
// Save the excel file and provide a download link.
const outputData = workbook.save(SaveFormat.Excel97To2003);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'chart.out.xls';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Label added successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Adding TextBox Control to the Chart
One way to highlight important information in a report is to use a text box. For example, enter text to highlight the company name or to indicate the geographic region with the highest sales. The ShapeCollection class provides a method named addTextBoxInChart(number, number, number, number), which is used to add a text box control to a chart. Following is the parameters list used for the method:
- top – the vertical offset of the text box from the upper left corner in units of 1/4000 of the chart area.
- left – the vertical offset of text box from the upper left corner in units of 1/4000 of the chart area.
- height – the height of text box, in units of 1/4000 of the chart area.
- width – the width of the text box, in units of 1/4000 of the chart area.
The method returns TextBox object. The TextBox class represents a text box in the chart.
The following example shows how to add a text box to a chart. The example uses the previous designer file (exp_piechart.xls) which has a chart in it. We use this file to insert a text box into the chart to show the chart title. Below is the original code for adding text box to the chart.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Opening the Excel file through the file stream
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the designer chart in the second sheet.
const sheet = workbook.worksheets.get(1);
const chart = sheet.charts.get(0);
// Add a new textbox to the chart.
const textbox0 = chart.shapes.addTextBoxInChart(100, 1100, 350, 2550);
// Fill the text.
textbox0.text = "Sales By Region";
// Get the textbox text frame.
// const textframe0 = textbox0.textFrame;
// Set the textbox to adjust it according to its contents.
// textframe0.autoSize = true;
// Set the font color.
textbox0.font.color = AsposeCells.Color.Maroon;
// Set the font to bold.
textbox0.font.isBold = true;
// Set the font size.
textbox0.font.size = 14;
// Set font attribute to italic.
textbox0.font.isItalic = true;
// Get the fill format of the textbox.
const fillformat = textbox0.fill;
// Get the line format type of the textbox.
const lineformat = textbox0.line;
// Set the line weight.
lineformat.weight = 2;
// Set the dash style to solid.
lineformat.dashStyle = AsposeCells.MsoLineDashStyle.Solid;
// Save the excel file.
const outputData = workbook.save(SaveFormat.Excel97To2003);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'chart.out.xls';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Adding Picture to the Chart
Aspose.Cells allows you to insert images into a chart. For example, add a picture to emphasize or give more meaning to a chart or its contents, or insert a brand image file.
The ShapeCollection class provides a method named addPictureInChart(number, number, Uint8Array, number, number), which is used to add a picture object to the chart. Following is the parameters list used for the method:
- top – the vertical offset of the picture from the upper left corner in units of 1/4000 of the chart area.
- left – the vertical offset of the picture from the upper left corner in units of 1/4000 of the chart area.
- stream – a stream object which contains the image data.
- widthScale – the scale of image width, a percentage value.
- heightScale – the scale of image height, a percentage value.
The method returns an Picture object. The Picture class represents a picture object in the chart.
The following example shows how to add a picture to the chart. The example utilizes the previous designer file (exp_piechart.xls) which has a chart in it. We use this file to insert an image into the chart. Below is the original code for adding picture to the chart.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Add Picture to Chart</title>
</head>
<body>
<h1>Add Picture to Chart Example</h1>
<p>Select an Excel file and an image to add to the first chart in the first worksheet.</p>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<input type="file" id="imageInput" accept="image/*" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const imageInput = document.getElementById('imageInput');
if (!fileInput.files.length || !imageInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file and an image file.</p>';
return;
}
const file = fileInput.files[0];
const imageFile = imageInput.files[0];
const arrayBuffer = await file.arrayBuffer();
const imageBuffer = await imageFile.arrayBuffer();
// Instantiating a Workbook object from the uploaded Excel file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the designer chart in the first sheet.
const sheet = workbook.worksheets.get(0);
const chart = sheet.charts.get(0);
// Add a new picture to the chart.
const pic0 = chart.shapes.addPictureInChart(50, 50, new Uint8Array(imageBuffer), 40, 40);
// Get the lineformat type of the picture.
const lineformat = pic0.line;
// Set the dash style.
lineformat.dashStyle = AsposeCells.MsoLineDashStyle.Solid;
// Set the line weight.
lineformat.weight = 4;
// Save the modified Excel file and provide a download link.
const outputData = workbook.save(SaveFormat.Excel97To2003);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'chart.out.xls';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Picture added to chart successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Adding Checkbox in the Chart
Aspose.Cells allows you to insert checkboxes into a chart sheet by using MsoDrawingType enumeration. The following example demonstrates adding a checkbox to a chart sheet.

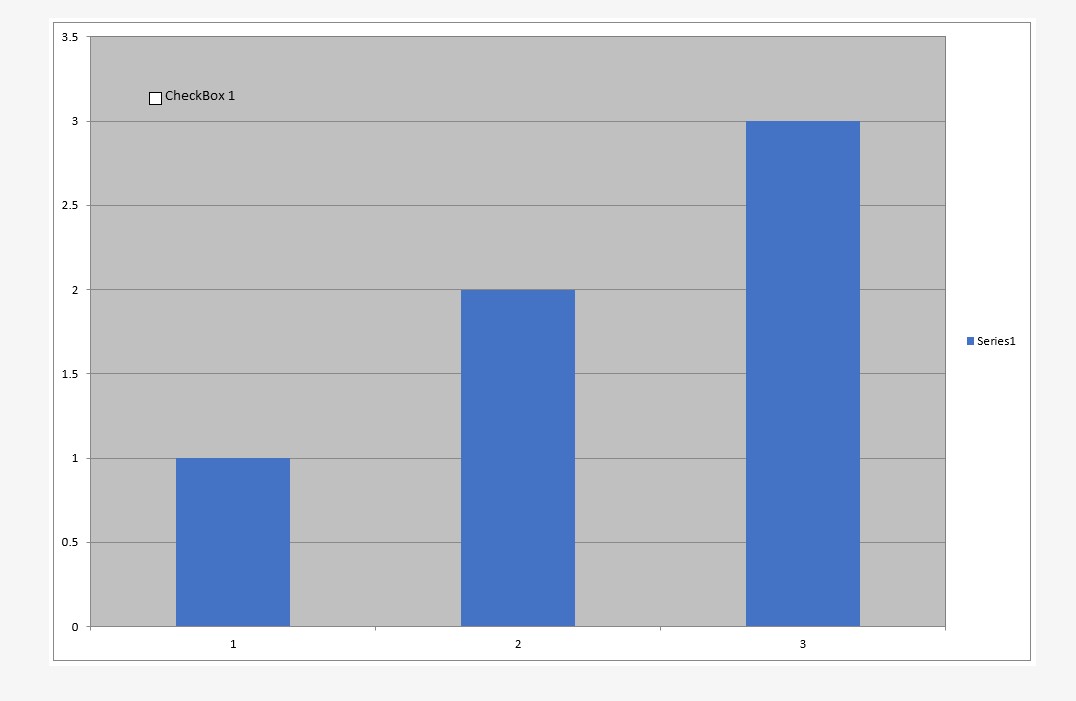

The following image shows the chart sheet with the checkbox in the output file.
The output file generated by the following code snippet is attached for your reference.
<!DOCTYPE html>
<html>
<head>
<title>Insert Checkbox in Chart Sheet Example</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadLink { display: none; margin-top: 10px; display: inline-block; }
#result p { margin: 8px 0; }
</style>
</head>
<body>
<h1>Insert Checkbox in Chart Sheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
resultDiv.innerHTML = '';
// This example creates a new workbook and inserts a chart sheet with a checkbox in the chart.
// The file input is optional for this example (a new workbook is created regardless).
// Instantiating a Workbook object
const workbook = new Workbook();
// Adding a chart sheet to the workbook
const index = workbook.worksheets.add(AsposeCells.SheetType.Chart);
// Access the newly added chart sheet
const sheet = workbook.worksheets.get(index);
// Add a floating column chart to the chart sheet
sheet.charts.addFloatingChart(AsposeCells.ChartType.Column, 0, 0, 1024, 960);
// Add nSeries to the chart (single series with values 1,2,3)
sheet.charts.get(0).nSeries.add("{1,2,3}", false);
// Add checkbox to the chart
sheet.charts.get(0).shapes.addShapeInChart(AsposeCells.MsoDrawingType.CheckBox, AsposeCells.PlacementType.Move, 400, 400, 1000, 600);
// Set text of the checkbox shape
sheet.charts.get(0).shapes.get(0).text = "CheckBox 1";
// Save the workbook to XLSX format and provide a download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet" });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'InsertCheckboxInChartSheet_out.xlsx';
downloadLink.style.display = 'inline-block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Chart sheet with checkbox created successfully! Click the download link to get the file.</p>';
});
</script>
</html>
