Convert the Smart Art to Group Shape with JavaScript via C++

Possible Usage Scenarios

You can convert Smart Art Shape into Group Shape using the Shape.resultOfSmartArt method. It will enable you to handle smart art shape like a group shape. Consequently, you will have access to the individual parts or shapes of the group shape.

Convert the Smart Art to Group Shape

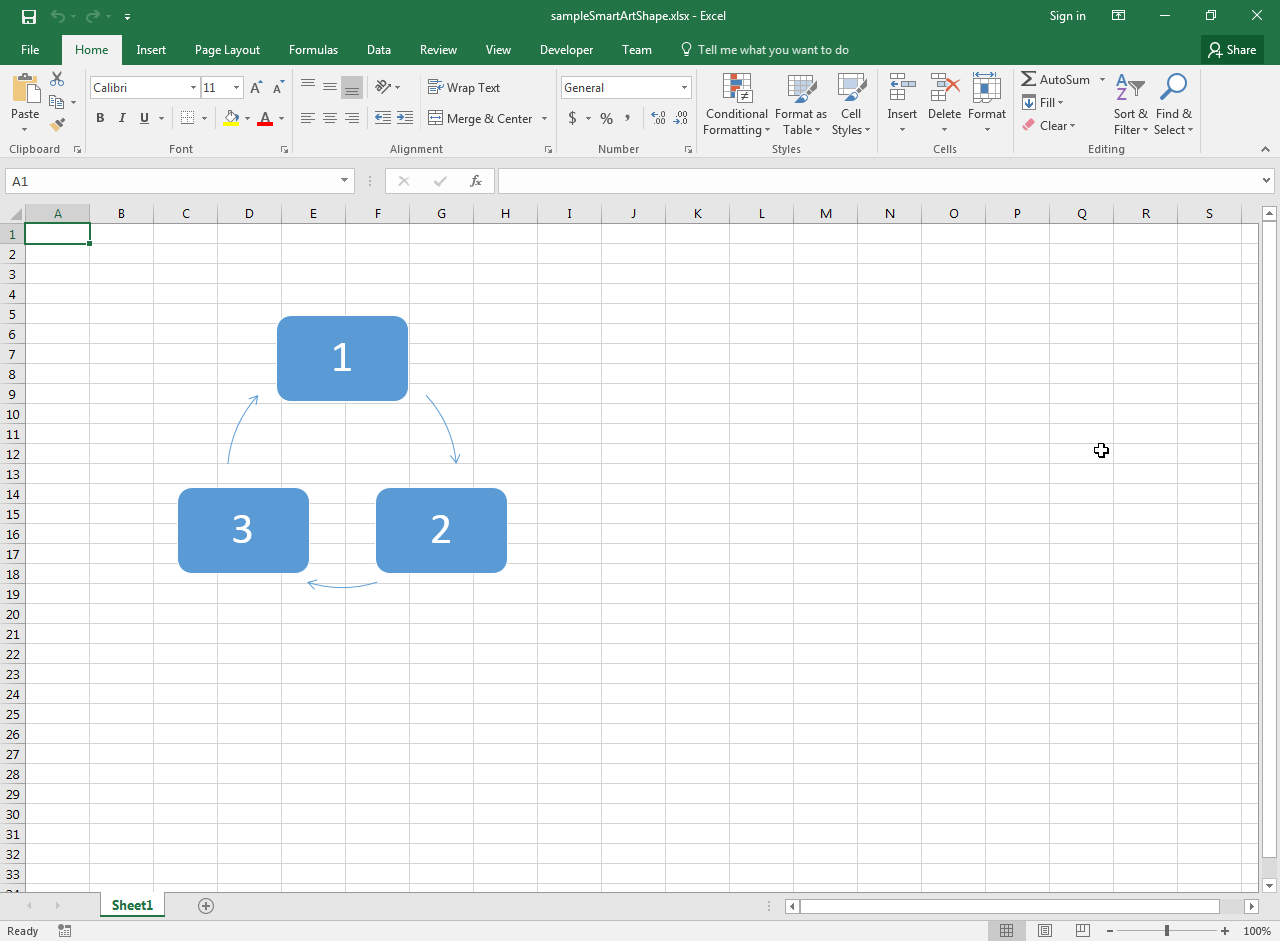

The following sample code loads the sample Excel file containing a smart art shape as shown in this screenshot. It then converts the smart art shape into group shape and prints the Shape.isGroup property. Please see the console output of the sample code given below.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Get Result Of SmartArt</title>
    </head>
    <body>
        <h1>Get Result Of SmartArt Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const resultDiv = document.getElementById('result');
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object using the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Accessing the first shape
            const shape = worksheet.shapes.get(0);

            // Determine if shape is smart art (property access, not method)
            const isSmartArt = shape.isSmartArt;

            // Determine if shape is group shape (property access)
            const isGroup = shape.isGroup;

            // Convert smart art shape into group shape result and check if group (getResultOfSmartArt -> resultOfSmartArt property)
            const resultOfSmartArtIsGroup = shape.resultOfSmartArt.isGroup;

            const html = [
                `<p>Is Smart Art Shape: ${isSmartArt}</p>`,
                `<p>Is Group Shape: ${isGroup}</p>`,
                `<p>Result of SmartArt is Group: ${resultOfSmartArtIsGroup}</p>`
            ].join('');

            resultDiv.innerHTML = html;
        });
    </script>
</html>

Console Output

Is Smart Art Shape: True

Is Group Shape: False

Is Group Shape: True
