Create High-Low-Close(HLC) Stock Chart with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios

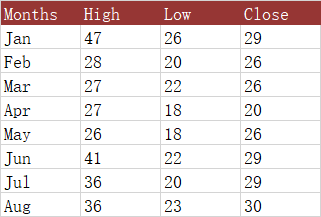

The High-Low-Close (HLC) stock chart uses four columns of data. The first column is a category, usually a date but stock names can also be used. The next three columns in order are for high, low, and closing prices. The range of price for each category is indicated by a vertical line from low to high, and closing price is shown using a tick mark extending to the right of this line.
Visibility improvements in the chart
Sometimes, to make the chart look more intuitive, we can modify the appearance of the marker (close), or make it display on the secondary axis.
Sample Code
The following sample code loads the sample Excel file and generates the output Excel file.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>High-Low-Close Stock Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Create an instance of Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet.
const worksheet = workbook.worksheets.get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.charts.add(AsposeCells.ChartType.StockHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.charts.get(pieIdx);
// Set the legend can be showed
chart.showLegend = true;
// Set the chart title name

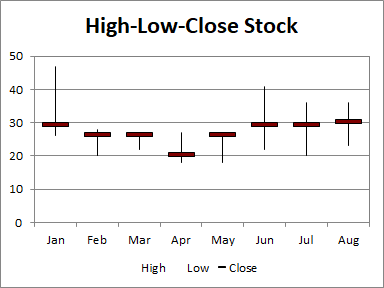

chart.title.text = "High-Low-Close Stock";
// Set the Legend at the bottom of the chart area
chart.legend.position = AsposeCells.LegendPositionType.Bottom;
// Set data range (range and orientation)
chart.chartDataRange = ["A1:D9", true];
// Set category data
chart.nSeries.categoryData = "A2:A9";
// Set the marker with the built-in data for the 3rd series (index 2)
const series2 = chart.nSeries.get(2);
const marker = series2.marker;
marker.markerStyle = AsposeCells.ChartMarkerType.Dash;
marker.markerSize = 20;
marker.area.formatting = AsposeCells.FormattingType.Custom;
marker.area.foregroundColor = AsposeCells.Color.Maroon;
// Fill the PlotArea area with nothing
chart.plotArea.area.fillFormat.fillType = AsposeCells.FillType.None;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Chart created successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
