Create Open-High-Low-Close (OHLC) Stock Chart with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios

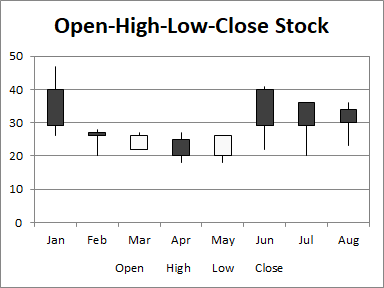

The Open-High-Low-Close (OHLC) chart uses five columns of data, in order: category, open, high, low, and close. The range of prices in each category is indicated by a vertical line, while the range between open and close is given by a wider floating bar; if the price increases in the category (close is higher than open), the bar is filled with one color, while if the price decreases, the bar is filled with another. This type of chart is often called a candlestick chart.
Visibility improvements in the chart

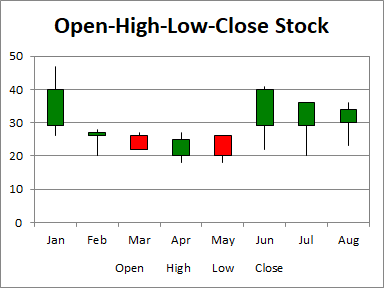

We often use colors rather than black and white to indicate increasing and decreasing prices. In the first set of candlesticks below, red shows increasing and green decreasing prices.
Sample Code

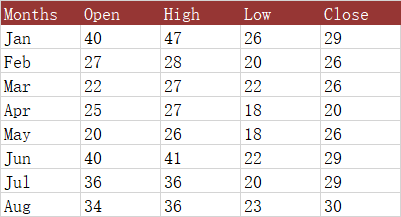

The following sample code loads the sample Excel file and generates the output Excel file.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Open-High-Low-Close Stock Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet.
const worksheet = workbook.worksheets.get(0);
// Create Open-High-Low-Close Stock Chart
const chartIdx = worksheet.charts.add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.charts.get(chartIdx);
// Set the legend to be shown
chart.showLegend = true;
// Set the chart title
chart.title.text = "Open-High-Low-Close Stock";
// Set the legend at the bottom of the chart area
chart.legend.position = AsposeCells.LegendPositionType.Bottom;
// Set the data range
chart.chartDataRange = ["A1:E9", true];
// Set category data
chart.nSeries.categoryData = "A2:A9";
// Set the DownBars and UpBars with different colors
chart.nSeries.get(0).downBars.area.foregroundColor = AsposeCells.Color.Green;
chart.nSeries.get(0).upBars.area.foregroundColor = AsposeCells.Color.Red;
// Set the PlotArea fill to none
chart.plotArea.area.fillFormat.fillType = AsposeCells.FillType.None;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Chart created successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
