Insert Timeline

Possible Usage Scenarios

Instead of adjusting filters to show dates, you can use a PivotTable Timeline——a dynamic filter option that lets you easily filter by date/time, and zoom in on the period you want with a slider control. Microsoft Excel allows you to create timeline by selecting a pivot table and then clicking the Insert > Timeline. Aspose.Cells for JavaScript via C++ also allows you to create timeline using the Worksheet.timelines.add() method.

Create Timeline to a Pivot Table

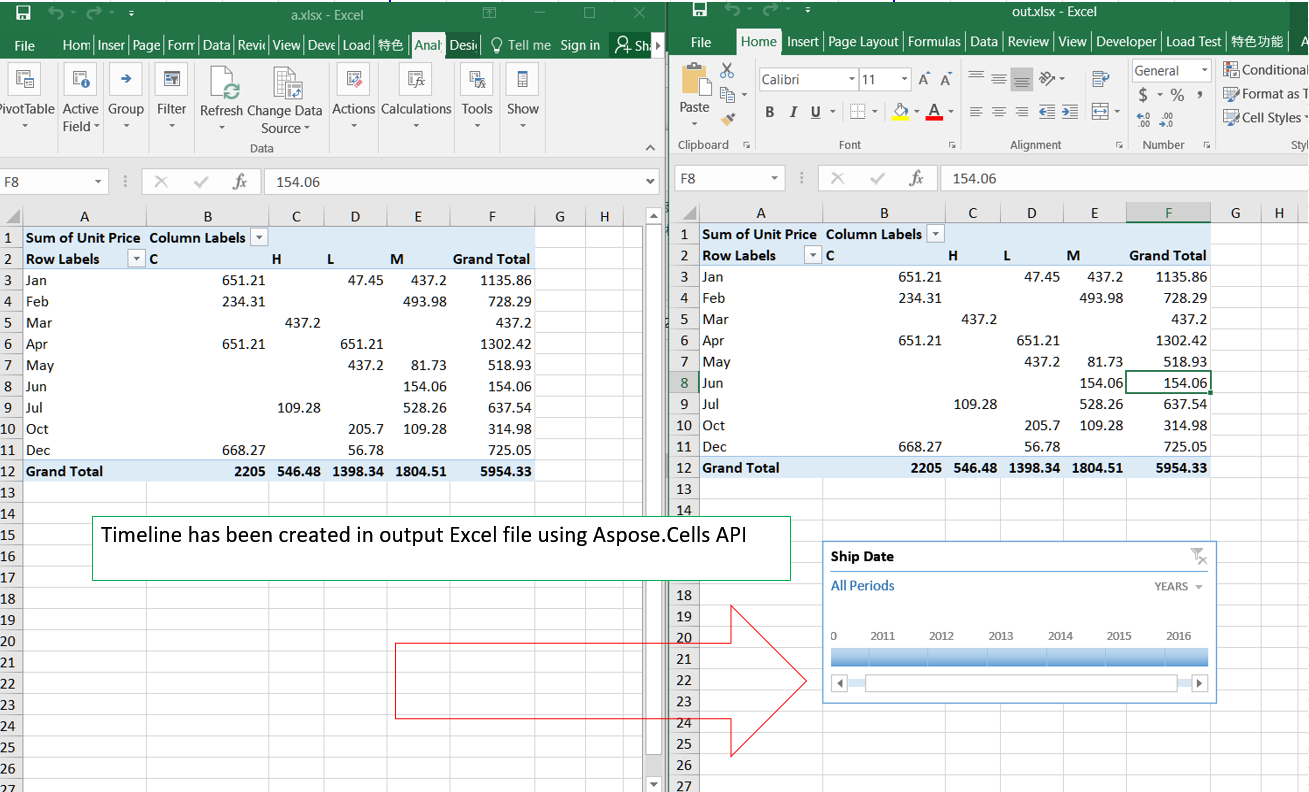

Please see the following sample code. It loads the sample Excel file that contains the pivot table. It then creates the timeline based on the first base pivot field. Finally, it saves the workbook in output XLSX format. The following screenshot shows the timeline created by Aspose.Cells for JavaScript via C++ in the output Excel file.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Add Timeline to Pivot Table</title>
    </head>
    <body>
        <h1>Add Timeline to Pivot Table</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiate workbook from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access second worksheet (index 1)
            const sheet = workbook.worksheets.get(1);

            // Access first pivot table inside the worksheet
            const pivot = sheet.pivotTables.get(0);

            // Add timeline relating to pivot table (positioned at column 15, row 1) with caption "Ship Date"
            const index = sheet.timelines.add(pivot, 15, 1, "Ship Date");

            // Access the newly added timeline from timeline collection
            const timeline = sheet.timelines.get(index);

            // Save the modified workbook and provide download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Timeline added successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
