Create Volume-High-Low-Close(VHLC) Stock Chart with JavaScript via C++

Possible Usage Scenarios

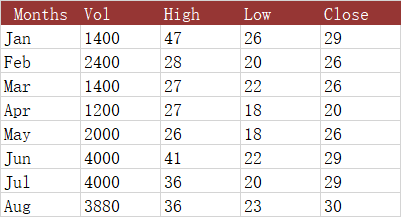

The third stock chart we will look at is the Volume High Low Close chart. Again, it is important to repeat that you must have the data in the correct order. If you need to rearrange your data table, you should do it before you set up your chart. This chart includes a column for volume immediately after the first (category) column, and the charts include a column chart on the primary axis showing this volume, while the prices are moved to the secondary axis.

todo:image_alt_text

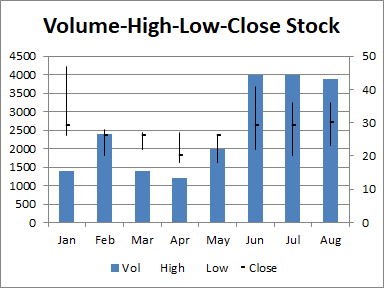

Volume-High-Low-Close (VHLC) stock chart

todo:image_alt_text

Sample Code

The following sample code loads the sample Excel file and generates the output Excel file.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Volume-High-Low-Close Stock Chart Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Create an instance of Workbook from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));
            // Access the first worksheet.
            const worksheet = workbook.worksheets.get(0);

            // Create High-Low-Close-Stock Chart
            const pieIdx = worksheet.charts.add(AsposeCells.ChartType.StockVolumeHighLowClose, 5, 6, 20, 12);
            // Retrieve the Chart object
            const chart = worksheet.charts.get(pieIdx);
            // Set the legend can be showed
            chart.showLegend = true;
            // Set the chart title name
            chart.title.text = "Volume-High-Low-Close Stock";
            // Set the Legend at the bottom of the chart area
            chart.legend.position = AsposeCells.LegendPositionType.Bottom;
            // Set data range (converted from setChartDataRange(range, isVertical))
            chart.chartDataRange = ["A1:E9", true];
            // Set category data
            chart.nSeries.categoryData = "A2:A9";
            // Set Color for the first series(Volume) data
            chart.nSeries.get(0).area.foregroundColor = new AsposeCells.Color(79, 129, 189);
            // Fill the PlotArea area with nothing
            chart.plotArea.area.fillFormat.fillType = AsposeCells.FillType.None;

            // Saving the modified Excel file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Chart created successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
