Create Volume-Open-High-Low-Close (VOHLC) Stock Chart with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
The fourth stock chart we will look at is the Volume Open High Low Close chart. Again, it is important to repeat that you must have the data in the correct order. If you need to rearrange your data table, you should do it before you set up your chart. This chart includes a column for volume immediately after the first (category) column, and the chart includes a column chart on the primary axis showing this volume, while the prices are moved to the secondary axis.

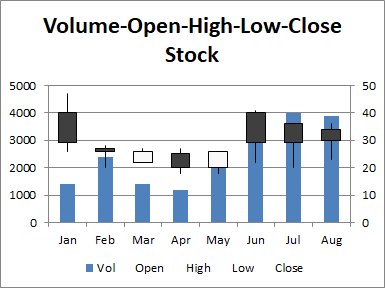

Volume-Open-High-Low-Close (VOHLC) stock chart
Sample Code

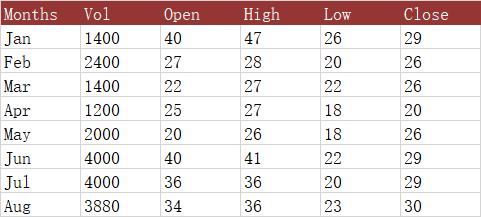

The following sample code loads the sample Excel file and generates the output Excel file.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Volume-Open-High-Low-Close Stock Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Create an instance of Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet.
const worksheet = workbook.worksheets.get(0);
// Create Volume-Open-High-Low-Close Stock Chart
const chartIdx = worksheet.charts.add(AsposeCells.ChartType.StockVolumeOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.charts.get(chartIdx);
// Set the legend to be shown
chart.showLegend = true;
// Set the chart title
chart.title.text = "Volume-Open-High-Low-Close Stock";
// Set the legend at the bottom of the chart area
chart.legend.position = AsposeCells.LegendPositionType.Bottom;
// Set data range (preserve both arguments as an array)
chart.chartDataRange = ["A1:F9", true];
// Set category data
chart.nSeries.categoryData = "A2:A9";
// Set color for the first series (Volume) data
chart.nSeries.get(0).area.foregroundColor = new AsposeCells.Color(79, 129, 189);
// Fill the PlotArea with no fill
chart.plotArea.area.fillFormat.fillType = AsposeCells.FillType.None;
// Save the Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Chart created successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
