Accessing Data of Non-Primitive Shape
Sometimes, you need to access data from a shape that is not built-in. Built-in shapes are called primitive shapes; ones that aren’t are called non-primitive. For example, you can define your own shapes using different curve connected lines.
A Non-Primitive Shape
In Aspose.Cells for JavaScript via C++, non-primitive shapes are assigned the type AutoShapeType.NotPrimitive. You can check their type using the Shape.autoShapeType property.
Access the shape data using the Shape.paths property. It returns all the connected paths that comprise the non-primitive shape. These paths are of the type ShapePath that holds a list of all the segments which in turn contain the points in each segment.

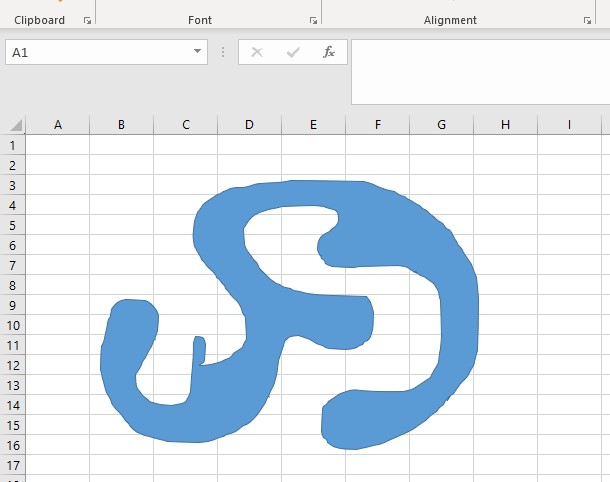

| Shows an example of a non-primitive shape |
|---|
 |
<!DOCTYPE html>
<html>
<head>
<title>Non-Primitive Shape Paths Example</title>
</head>
<body>
<h1>Non-Primitive Shape Paths Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const worksheet = workbook.worksheets.get(0);
// Accessing the user defined shape
const shape = worksheet.shapes.get(0);
if (shape.autoShapeType === AsposeCells.AutoShapeType.NotPrimitive)
{
// Access shape's data
const shapePathCollection = shape.paths;
// Build output
let outputHtml = '<div><strong>Shape Path Points:</strong><br/><pre style="white-space: pre-wrap;">';
// Access information of individual path
for (let i = 0; i < shapePathCollection.count; i++)
{
const shapePath = shapePathCollection.get(i);
// Access path segment list
const pathSegments = shapePath.pathSegementList;
// Access individual path segment
for (let j = 0; j < pathSegments.count; j++)
{
const pathSegment = pathSegments.get(j);
// Gets the points in path segment
const segmentPoints = pathSegment.points;
for (let k = 0; k < segmentPoints.count; k++)
{
const pathPoint = segmentPoints.get(k);
outputHtml += "X: " + pathPoint.x + ", Y: " + pathPoint.y + "\n";
}
}
}
outputHtml += '</pre></div>';
document.getElementById('result').innerHTML = outputHtml;
} else {
document.getElementById('result').innerHTML = '<p>Shape is not a NonPrimitive auto-shape.</p>';
}
});
</script>
</html>
