Date Axis with JavaScript via C++
Possible Usage Scenarios
When you create a chart from worksheet data that uses dates, and the dates are plotted along the horizontal (category) axis in the chart, Aspose.Cells for JavaScript via C++ automatically changes the category axis to a date (time-scale) axis. A date axis displays dates in chronological order at specific intervals or base units, such as the number of days, months, or years, even if the dates on the worksheet are not in sequential order or in the same base units. By default, Aspose.Cells determines the base units for the date axis based on the smallest difference between any two dates in the worksheet data. For example, if you have data for stock prices where the smallest difference between dates is seven days, Excel sets the base unit to days, but you can change the base unit to months or years if you want to see the performance of the stock over a longer period of time.
Handle Date Axis like Microsoft Excel

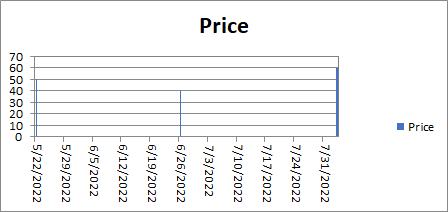

Please see the following sample code that creates a new Excel file and puts values of the chart in the first worksheet. Then we add a chart and set the type of the Axis to Axis.categoryType and then set the base units to Days.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Date Axis Chart Example</title>
</head>
<body>
<h1>Date Axis Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, CategoryType, TimeUnit, ChartTextDirectionType, FillType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the first worksheet
const worksheet = workbook.worksheets.get(0);
// Shortcut to cells collection
const cells = worksheet.cells;
// Add the sample values to cells
cells.get("A1").value = "Date";
// 14 means datetime format
const style = cells.style;
style.number = 14;
// Put values to cells for creating chart
const cellA2 = cells.get("A2");
cellA2.style = style;
cellA2.value = new Date(Date.UTC(2022, 5, 26));
const cellA3 = cells.get("A3");
cellA3.style = style;
cellA3.value = new Date(Date.UTC(2022, 4, 22));
const cellA4 = cells.get("A4");
cellA4.style = style;
cellA4.value = new Date(Date.UTC(2022, 7, 3));
cells.get("B1").value = "Price";
cells.get("B2").value = 40;
cells.get("B3").value = 50;
cells.get("B4").value = 60;
// Add a chart to the worksheet
const chartIndex = worksheet.charts.add(ChartType.Column, 9, 6, 21, 13);
// Access the instance of the newly added chart
const chart = worksheet.charts.get(chartIndex);
// Add SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B4"
// Converted setter to property assignment (range and boolean passed as array)
chart.chartDataRange = ["A1:B4", true];
// Set the Axis type to Date time
chart.categoryAxis.categoryType = CategoryType.TimeScale;
// Set the base unit for CategoryAxis to days
chart.categoryAxis.baseUnitScale = TimeUnit.Days;
// Set the direction for the axis text to be vertical
chart.categoryAxis.tickLabels.directionType = ChartTextDirectionType.Vertical;
// Fill the PlotArea area with nothing
chart.plotArea.area.fillFormat.fillType = FillType.None;
// Set max value of Y axis.
chart.valueAxis.maxValue = 70;
// Set major unit.
chart.valueAxis.majorUnit = 10;
// Saving the modified Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'DateAxis.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Chart created successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
