Determine if Shape is Smart Art Shape with JavaScript via C++

Possible Usage Scenarios

SmartArt shapes are special shapes in Microsoft Excel that allow you to create complex diagrams automatically. You can determine whether a shape is a SmartArt shape or a normal shape using the Shape.isSmartArt() property.

Determine if Shape is SmartArt Shape

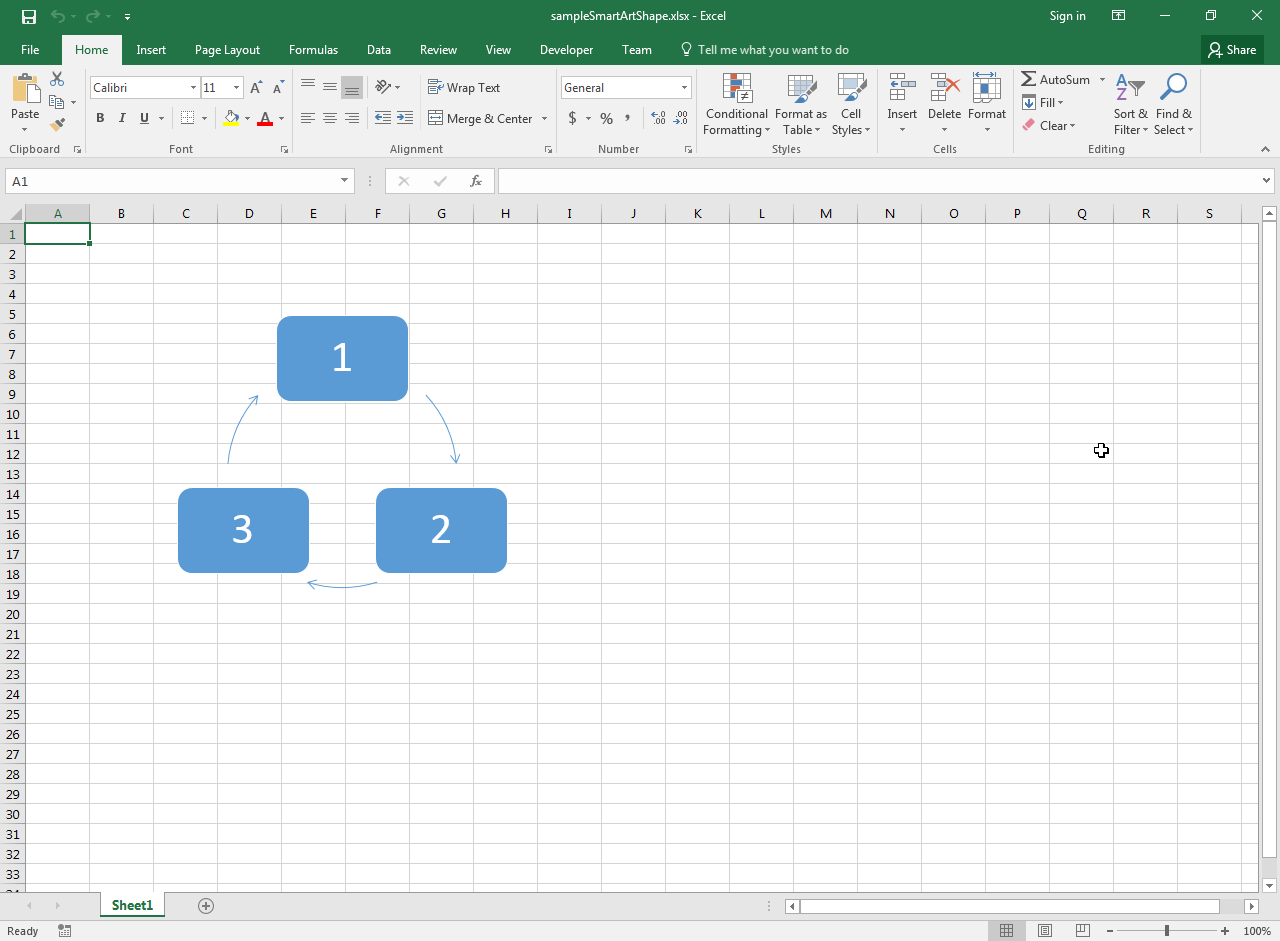

The following sample code loads the sample Excel file containing a SmartArt shape, as shown in this screenshot. It then prints the value of the Shape.isSmartArt() property of the first shape. Please see the console output of the sample code given below.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Example Title</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Accessing the first shape
            const shape = worksheet.shapes.get(0);

            // Determine if shape is SmartArt (converted to property access)
            const isSmartArt = shape.isSmartArt;

            document.getElementById('result').innerHTML = `<p>Is Smart Art Shape: ${isSmartArt}</p>`;
        });
    </script>
</html>

Console Output



Is Smart Art Shape: True
